Emerson CS20K6E-TF5-945 Compressor, 200-230/3

Product Description

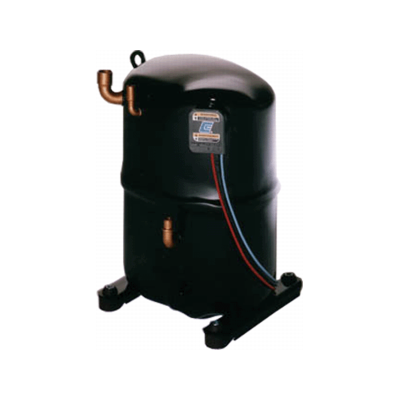

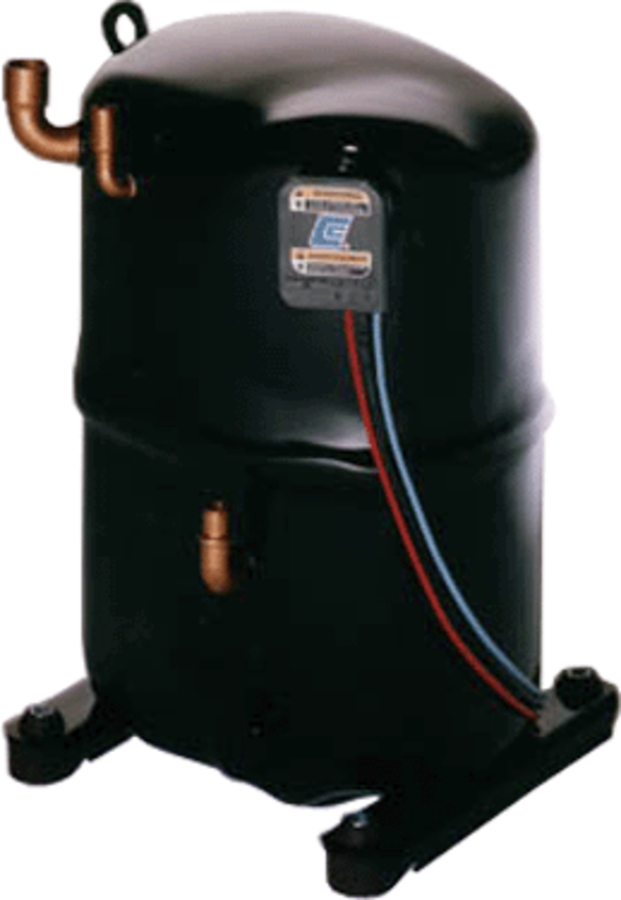

The Emerson CS20K6E-TF5-945 is a hermetic compressor designed for refrigeration applications. It is compatible with R22, R134A, R404A, and R507 refrigerants and operates on 200/230V three-phase power at 60Hz. This Copelaweld series compressor is suitable for high and medium temperature refrigeration conditions.

• Hermetic compressor design
• Compatible with multiple refrigerants: R22, R134A, R404A, and R507
• Operates on 200/230V three-phase power at 60Hz

Product Highlights

The Emerson CS20K6E-TF5-945 is ideal for refrigeration applications requiring a hermetic compressor with broad refrigerant compatibility.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CS20K6E-TF5-945

Technical Specifications

• Type: Hermetic
• Phase: Three
• Width: 9.65"
• Height: 14.06"
• Length: 10.23"
• Series: Copelaweld
• Voltage: 200/230V
• Body Type: CS
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R134A/R404A/R507
• Liquid Line Size: 1/2"
• Suction Line Size: 3/4"
• Mounting Dimensions: 7.5" x 7.5"
• Temperature Rating: High
• HP/Ton: 3.25
