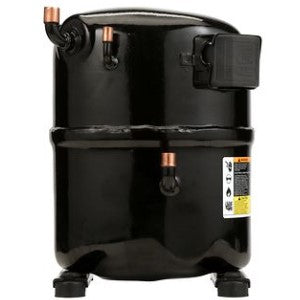

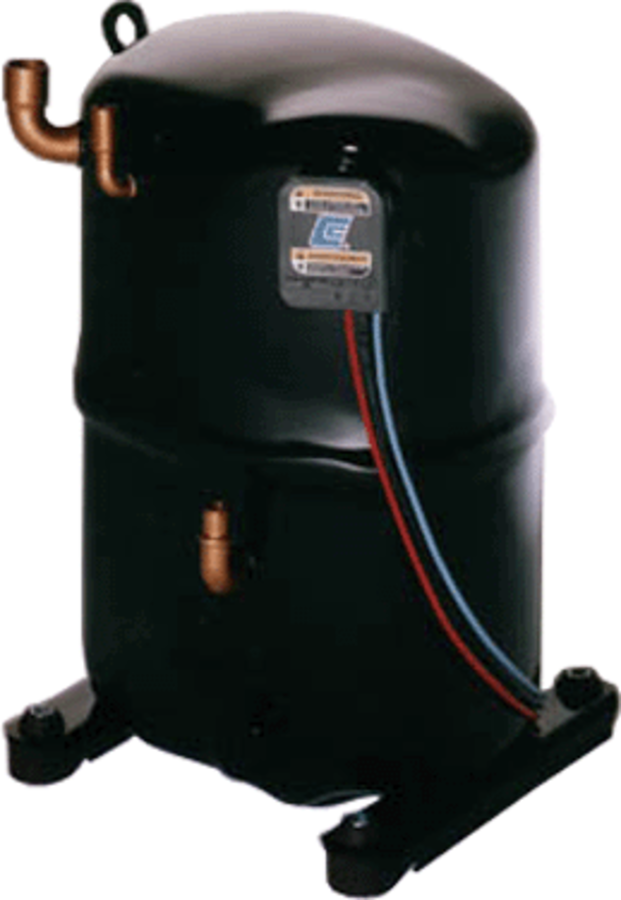

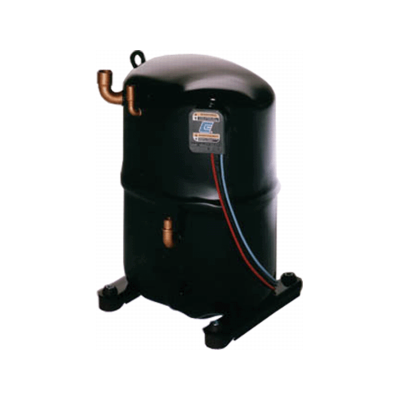

Emerson CS14K6E-PFV-945 Compressor 208-230V 1-Phase

Product Description

The EMERSON CS14K6E-PFV-945 is a hermetic compressor designed for refrigeration applications. It is compatible with R22, R134A, R404A, and R507 refrigerants and operates on 208/230V single-phase 60Hz power. This compressor is suitable for medium to high-temperature refrigeration needs and offers a capacity of 14000 BTU/HOUR.

• Designed for refrigeration applications.
• Compatible with R22, R134A, R404A, and R507 refrigerants.
• Operates on 208/230V single-phase 60Hz power.

Product Highlights

Hermetic compressor for refrigeration, compatible with multiple refrigerants, and operates on standard voltage.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CS14K6E-PFV-945

Technical Specifications

• Type: Hermetic
• Phase: Single
• Width: 9.65"
• Height: 13.44"
• Length: 10.23"
• Series: Copelaweld
• Voltage: 208/230V
• Body Type: CS
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R134A/R404A/R507
• Liquid Line Size: 1/2"
• Suction Line Size: 3/4"
• Mounting Dimensions: 7.5" x 7.5"
• Temperature Rating: High
• HP/Ton: 2.25
• Suction Connection: 3/4" ODF
• Discharge Connection: 1/2" ODF
• Capacity Range ( BTU ): 14,100 Btu
• Refrigeration Type: R404A
• Cooling Efficiency: Upt to 9.5
• Overload: Internal
• Cooling Efficiency (EER): UP TO 9.5
• REFRIGERATION: MEDIUM/HIGH EXTENDED TEMPERATURE
• REFRIGERANT TYPE: R404A/R22/R134A/R507
• OIL TYPE: POLYOLESTER
• MOTOR TYPE: CAPACITOR RUN, PERMANENT SPLIT CAPACITOR
• SUCTION SIZE: 5/8 INCH STUB
• DISCHARGE SIZE: 1/2 INCH STUB
• CURRENT RATING: 12.4 AMP (RATED LOAD), 17.4 AMP (MAXIMUM CONTINUOUS), 61 AMP (LOCKED ROTOR)
• CAPACITY: 14000 BTU/HOUR
• MODEL VARIATION: 6
• MODEL: CS
