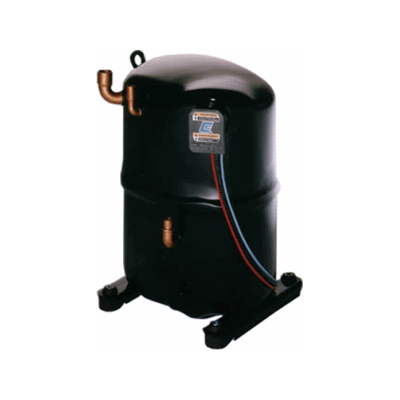

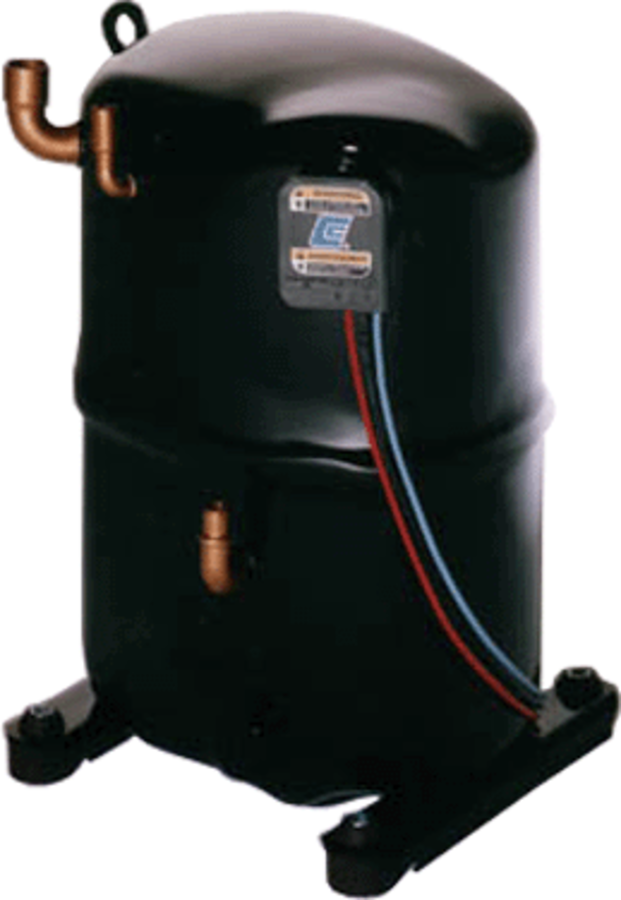

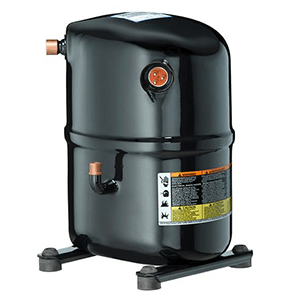

Emerson CR53KQE-TF5-970 Compressor 200-230V 3-Phase

Product Description

The EMERSON CR53KQE-TF5-970 is a three-phase hermetic compressor suitable for commercial and residential refrigeration applications. It is designed for use with R22/R407C refrigerant. This Copelaweld series compressor features sweat connections and is known for its reliability and quiet operation. It operates at 200/230V and 60Hz.

• Hermetic compressor for A/C and refrigeration.
• Designed for use with R22/R407C refrigerant.
• Features sweat connections.

Product Highlights

Reliable and efficient, the EMERSON CR53KQE-TF5-970 compressor is ideal for a variety of cooling applications.

Product Information

Standard Information

• Brand: EMERSON
• Manufacturer Part Number: CR53KQE-TF5-970

Technical Specifications

• Type: Hermetic
• Phase: Three
• Width: 9.219"
• Height: 14.812"
• Length: 10.625"
• Series: Copelaweld
• Voltage: 200/230V
• Frequency: 60Hz
• Application: Refrigeration
• Refrigerant: R22/R407C
• Liquid Line Size: 1/2"
• Suction Line Size: 7/8"
• Mounting Dimensions: 7.5" x 7.5"
• HP/Ton: 4
• Temperature Rating: UL High
• Cooling Efficiency: 10.29 EER
• Capacity: 53000 BTU/HOUR
• Oil Type: POLYOLESTER
• Motor Protection: INTERNAL INHERENT
• Model: CR
• Current Rating: 18 AMP (LOAD RATED)
