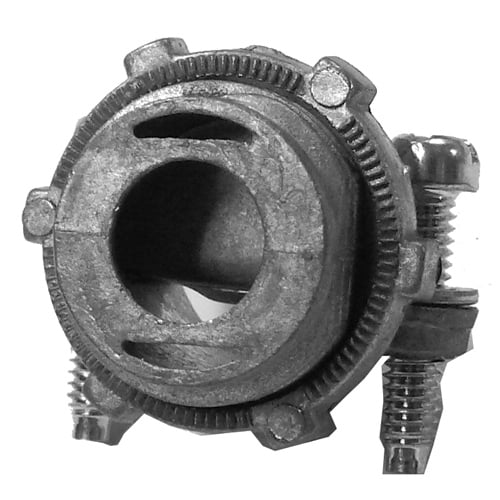

Emerson C-510 APP 3/8 DC MC CONN

Product Description

The Emerson C-510 is a service entrance cable connector designed for use with armored and metal clad cables. It features a 3/8 inch knockout and supports conductor sizes from 14/2 to 10/2 AWG. Made of die cast zinc, this connector is durable and suitable for various installation settings.

• Designed for 14 to 2/10 to 2 AWG Armored Cable
• Includes locknut for secure installation
• Meets UL and CSA standards for safety and compliance

Product Highlights

This connector provides a reliable and safe method to terminate flexible conduit in electrical applications.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• MPN: C-510

Technical Specifications

• Application: Used to terminate regular wall steel or aluminum flexible conduit to a 3/8 inch knockout
• Conductor Size: 14/2 to 10/2 AWG
• Dimensions: 0.87 inches diameter x 0.91 inches width
• Includes: Locknut
• Knockout Size: 3/8 inch
• Material: Die Cast Zinc
• Standards/Approvals: RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Specification W-F-406D
• Suitable For Use With: 14 to 2/10 to 2 AWG Armored Cable, 14 to 2/10 to 3 AWG Metal Clad Cable
• Type: 2-Screw
