Product Description

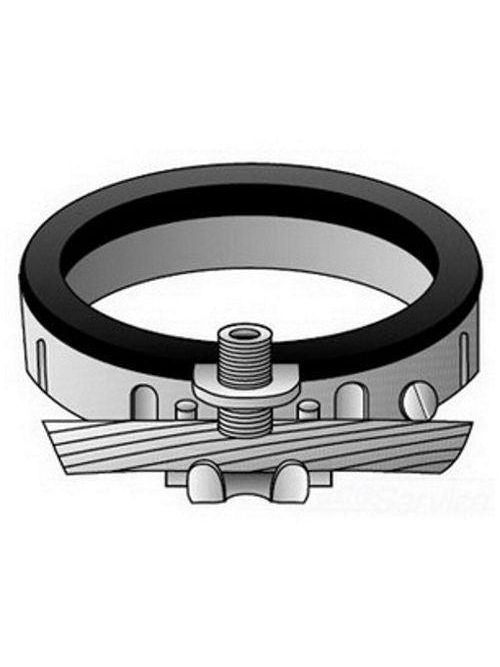

The Emerson BLG-2004 is a grounding bushing designed for use with fourteen to four AWG AC cable sizes. It features a two-inch trade size and is manufactured from malleable iron. This product provides a reliable grounding connection and is suitable for both insulated and non-insulated applications.
- Fits cable sizes from 14 to 4 AWG.
- Constructed from zinc plated malleable iron.
- Rated for use up to 150 degrees Celsius.
Product Highlights
This grounding bushing protects insulated conductors from abrasion. It allows for easy insertion of grounding conductors, ensuring positive contact and continuity.
Product Information
Standard Information
-
Manufacturer: Emerson Electric
-
Product Name: BLG-2004 OAG GRND INS BUSH 78312604230
Technical Specifications
-
AC Cable Size: 14 to 4 AWG
-
Application: For threaded rigid conduit, IMC, and EMT conduit
-
Dimensions: 2-3/4 inches diameter x 7/8 inches width
-
Finish: Zinc Plated
-
Insulated/Non-Insulated: Insulated
-
MPN: BLG-2004
-
Material: Malleable Iron
-
Standards/Approvals: ARRA Compliant | CSA 015978 | CSA 467 C22.2 No.41 | Federal Specification W-F-408E | NEMA FB-1 | UL 514B E24264
-
Temperature Rating: 150 degrees Celsius
-
Trade Size: 2 inches
-
Type: Type BLG
