Emerson AMC-50 APP 1/2 MC Cable Conn.

Product Description

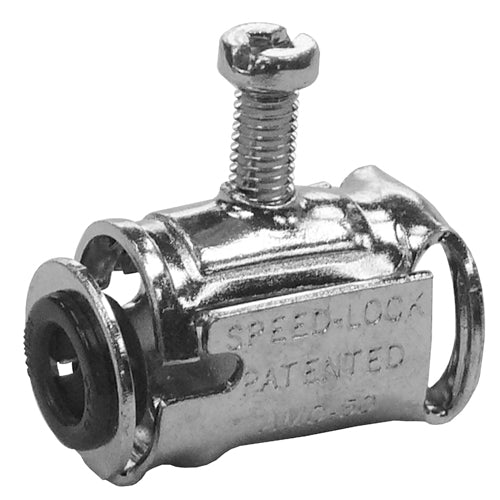

The Emerson AMC-50 APP 1/2 MC Cable Connector is designed for use with armored and metal clad cables. This connector is made from steel and features an insulated throat for safety. It is compatible with a knockout size of one-half inch. The connector dimensions are one point thirty-eight inches in length, one inch in width, and zero point sixty-nine inches in height.

• No locknut required for installation.
• Easy snap-in design for quick assembly.
• Supports over one hundred sizes of MC, AC, or flexible metal conduit with just four fittings.

Product Highlights

Simple installation with no loose parts. The insulated throat bushing provides optimal wire insulation protection.

Product Information

Standard Information

• Manufacturer: Emerson Electric
• UNSPSC: 39121419

Technical Specifications

• Application: For steel box installations and to ground and secure MC, AC and flexible metal conduit to boxes and enclosures
• Color: Metallic
• Connection Type: Snap-In
• Dimensions: 1.38 in L x 1 in W x 0.69 in H
• Finish: Electro-Plated Zinc
• Knockout Size: 1/2 in
• Manufacturer Part Number: AMC-50
• Material: Steel
• Standards/Approvals: UL 514B File No. E11852 | Federal Specification W-F-406E | CSA C22.2 No. 18.3 File No. 028507
• Trade Size: 1/2 in
• Type: Insulated Throat
