Emerson ADR1044 APP 4W-4P-100A RCPT UD

Product Description

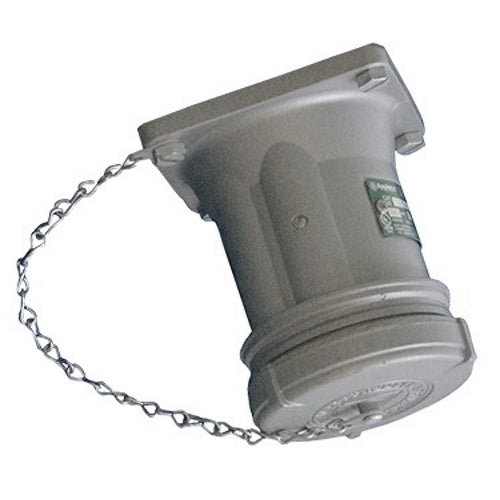

The Appleton Powertite Pin and Sleeve Receptacle model ADR1044 is designed for heavy-duty electrical applications. It supports three-phase grounding and can handle voltages up to 600 VAC and 250 VDC with a current rating of one hundred amperes. This receptacle is perfect for use in shipping docks, ports, and other demanding environments.

• NEMA 3/3R/4/4X rating for demanding conditions
• Durable copper-free aluminum construction
• Operates in temperatures from negative forty to one hundred seven degrees Celsius

Product Highlights

This receptacle is built for reliable power distribution and features weatherproof construction that is suitable for various industrial applications.

Product Information

Standard Information

• Brand: Emerson Electric
• Model Number: ADR1044

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 600 VAC, 250 VDC
• Frequency Rating: 50 to 400 Hz
• Horsepower: 40 hp
• Material: Copper-Free Aluminum
• NEMA Rating: NEMA 3/3R/4/4X
• Number of Poles: 4
• Number of Wires: 4
• Temperature Rating: -40 to 107 degrees C
• Terminal Type: Pressure Wire
• Dimensions: 0.391 in Dia
• Application: Suitable for various demanding applications such as motor generator units, welders, pumps, and cellular relay stations
• Standards/Approvals: UL 1682, UL 1686, UL 50E File No. E145916/E145917, CSA C22.2 No. 182.1
