Product Description

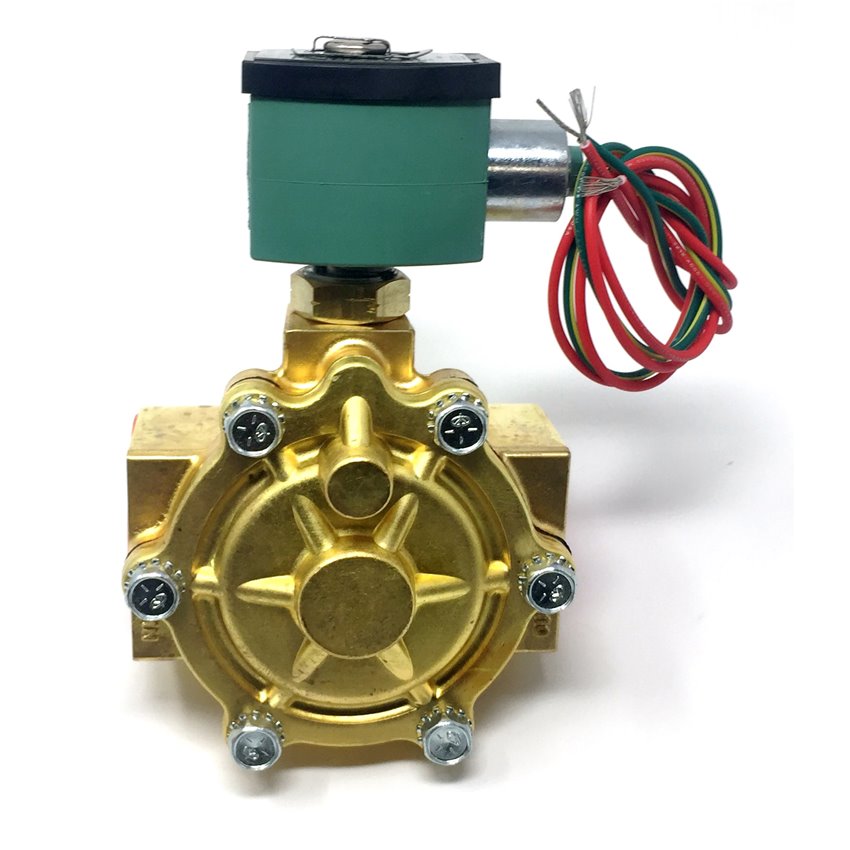

General Purpose Solenoid Valve; Type 2-Way/2-Position, Diaphragm, Pilot Operated; Port Connection 1-1/2 Inch Female Threaded x 1-1/2 Inch Female Threaded; Valve Position Normally Open; Body Material Brass; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 24 Volt AC 60 Hertz; Temperature Rating 180 Deg F (Fluid); Pressure Rating 5 to 150 PSI (Air-Inert Gas/Water), 5 to 125 PSI (Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features NBR Seal, Poly Amide Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, General Purpose; Application Car Wash, Laundry Equipment, Air Compressor, Industrial Water Control, Pump; Applicable Standard UL, CE; Lead-Free; Power Rating 16.1 Watt; Coil Insulation Type Class F; Orifice Size 1-1/4 Inch; Ambient Temperature Rating 32 to 125 Deg F; Flow Factor 22.5 Cv
Features/Benefits
Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage; High flow valves for liquid, corrosive, and air/inert gas service; Lead-Free
Inclusions/Features
NBR Seal, Polyamide Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil & General Purpose
