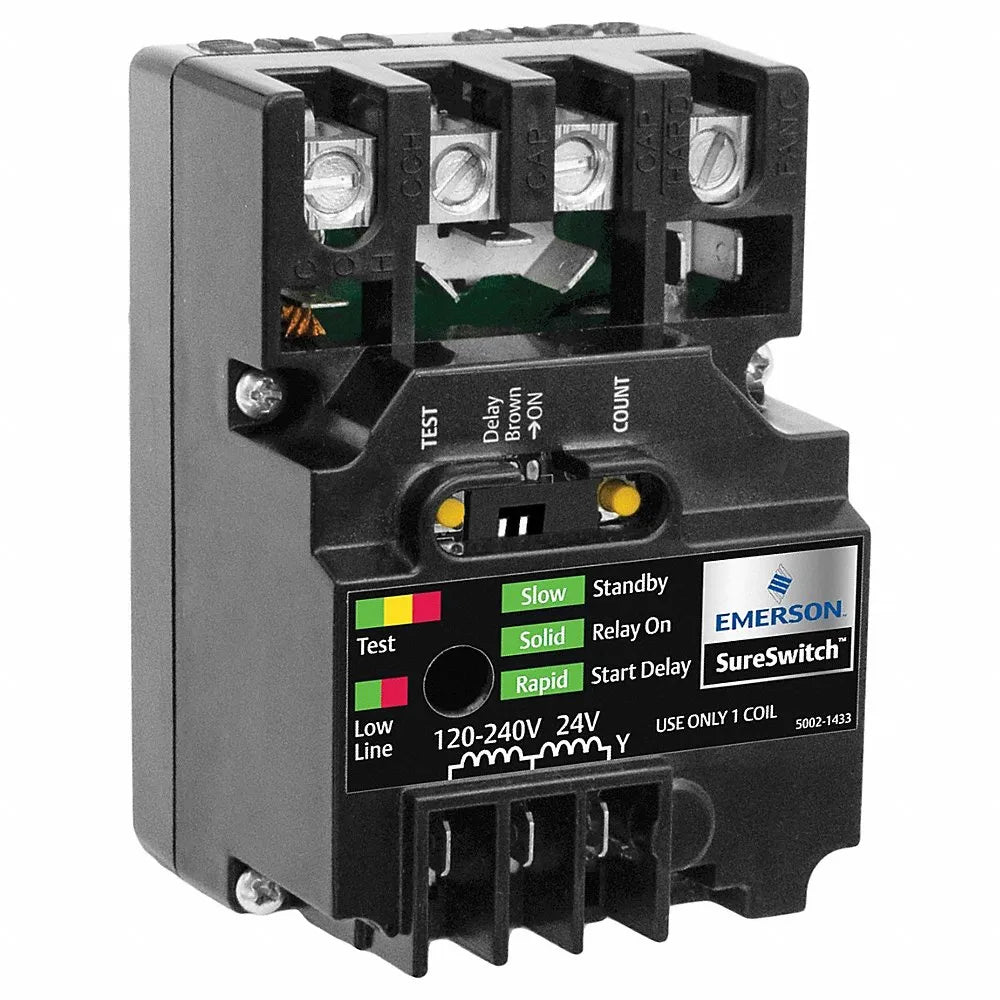

EMERSON 49P11-18-843 Sure Switch Relay

Product Description

The EMERSON 49P11-18-843 Sure Switch Relay serves as a multi-volt universal contactor designed for versatile electrical applications. It features a single-pole, single-throw (SPST) contact form with normally open switch action. The relay operates effectively with a locked rotor current of 200A at 120V AC, making it suitable for various single-phase applications.

• Multi-volt universal contactor functionality
• Brackets for easy mounting
• Complies with CSA LR13360, UL E12139, and UL E22381 standards

Product Highlights

This relay is ideal for multiple voltage operations including 24, 120, 208, and 240V AC. It plays a crucial role in electrical switching tasks across different applications.

Product Information

Standard Information

• Item: Relay
• Type: Multi-Volt Universal Contactor

Technical Specifications

• Contact Form: SPST
• Locked Rotor Amps @ 120V AC: 200A
• Low Voltage Contact Form: DPST
• Mounting Style: Bracket
• Overall Depth: 2 3/8 inches
• Overall Length: 3 7/8 inches
• Overall Width: 2 3/4 inches
• Phase: Single
• Standards: CSA LR13360, UL E12139, UL E22381
• Switch Action: Normally Open
• Voltage: 24/120/208/240V AC
