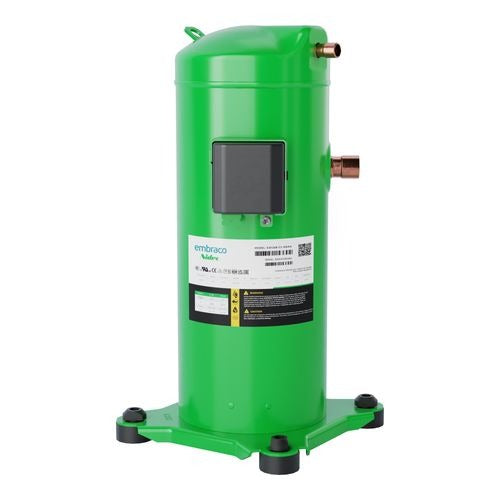

EMBRACO Embraco EAF61E-C1-NABA Scroll Compressor 5 Ton (208-230 V)
EMBRACO Embraco EAF61E-C1-NABA Scroll Compressor 5 Ton (208-230 V)

Embraco EAF61E-C1-NABA Scroll Compressor 5 Ton (208-230 V)

Brand: EMBRACO
SKU: EAF61E-C1-NABA
Availability: In Stock

Ships via freight in 1-3 business days
$1,240.42
$1,240.42
LTL Delivery

This product weighs 66 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Embraco EAF61E-C1-NABA is a fixed-speed scroll compressor rated at 5 ton (61,869 BTU/h per AHRI 540 HBP) for R-22 refrigerant. It operates at 208-230 V, 60 Hz, single-phase and is intended for residential and light commercial air conditioning and direct replacement applications.

  • 5 ton nominal capacity; 61,869 BTU/h at AHRI 540 HBP; designed for R-22 refrigerant
  • Electrical rating 208-230 V, 60 Hz, single-phase with fixed-speed scroll motor
  • Brazed suction and discharge connections; IP21 terminal block; supplied with E-box, T terminal, grommets, sleeves and re-piping kit

Product Highlights

Fixed-speed scroll compressor for R-22 systems, UL certified, supplied with model-specific changeout kit and optional accessories available

Product Information

Standard Information

  • Brand: EMBRACO
  • Manufacturer Part Number: EAF61E-C1-NABA
Technical Specifications
Brand
Embraco
MPN
EAF61E-C1-NABA
Product Type
Scroll compressor
Capacity (Ton)
5
Nominal Capacity (BTU/h, AHRI 540 HBP)
61,869
Refrigerant Type
R-22
Input Voltage
208-230 V
Frequency
60 Hz
Phase
Single-phase
Motor Type
Fixed-speed scroll
Connections
Brazed suction and discharge connections
Terminal Block Protection
IP21
Certifications
UL certified for North American market
Supplied Accessories
E-box, T terminal, 4 grommets, 4 sleeves, model-specific re-piping kit
Optional Accessories
Crankcase heater, capacitor, noise jacket
Application
Residential and light commercial air conditioning; direct replacement for multiple Copeland, Arrco and LG models
