Elkhart Products TEE-212 Wrot Copper Tee 2.5 in Cxcxc

Product Description

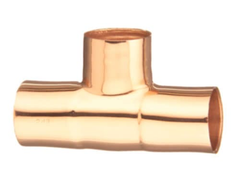

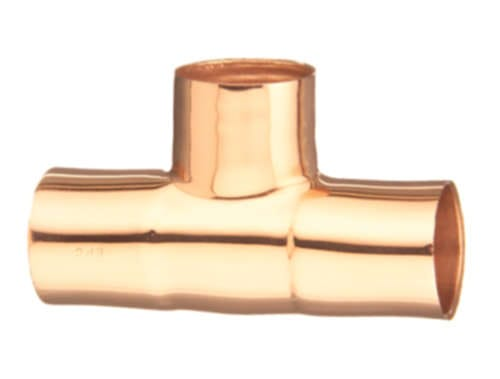

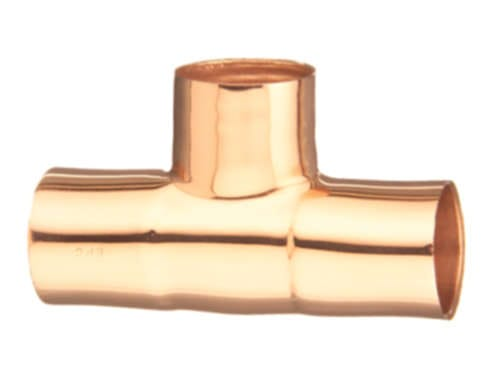

The ELKHART PRODUCTS TEE-212 is a wrot copper pressure tee designed for sweat-solder connections in copper piping systems. Sized at 2.5 inches with a C x C x C configuration, it accepts standard copper tubing on all three ports and is joined using a solder or braze process. The wrot designation indicates wrought construction, which provides consistent wall thickness and a refined grain structure compared to cast fittings. Licensed plumbers and pipefitters install this fitting in water supply, hydronic heating, and mechanical piping systems where a reliable branch connection is required.

This fitting is suited for residential and light commercial plumbing and hydronic applications. The 2.5-inch size is common in main distribution lines and larger branch runs in commercial buildings, multifamily construction, and mechanical rooms. It is installed wherever a copper main line requires a full-bore branch takeoff of the same diameter. All three ends accept standard 2.5-inch copper tube for a uniform sweat connection.

Key Features

• Wrot copper construction for consistent wall thickness and pressure integrity
• C x C x C configuration provides a full-bore branch on all three ports
• Solder-type connection compatible with standard sweat joining methods
• 2.5-inch size suits main distribution and larger branch piping runs
• Wrought fitting design meets standard pressure and temperature ratings for copper systems

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2.5-inch copper tube systems joined by solder or braze methods in compliance with applicable plumbing codes.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off and drain the supply line completely before cutting in the fitting. Clean all tube ends and fitting cups thoroughly with emery cloth and apply flux before soldering. Avoid applying excessive heat that could damage adjacent materials or cause flux residue buildup inside the fitting bore.

Technical Specifications

• Size: 2.5 inches
• Connection Type: C x C x C (Solder)
• Material: Copper (Wrot)
• Product Line: WROT
• Model: 111
• Length: 4.18 inches
• Width: 5.57 inches
• Height: 2.78 inches
• Weight: 1.967 pounds
• UPC: 683264330306

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: TEE-212
