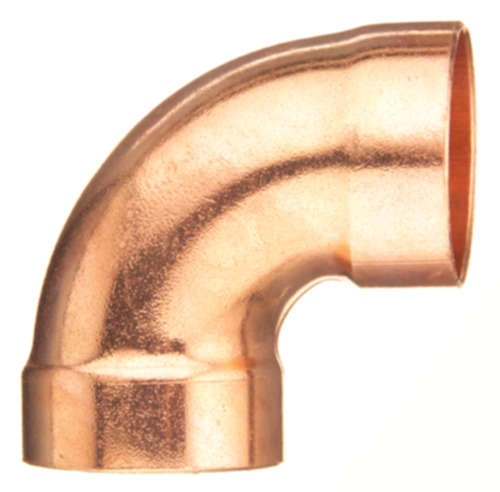

Elkhart Products H055250 90 Degree Dwv Elbow 1-1/4 in

Product Description

The ELKHART PRODUCTS H055250 is a wrot copper 90-degree elbow designed for drain, waste, and vent (DWV) piping systems. It connects two 1-1/4 inch copper pipes using a sweat-solder cup-by-cup (C x C) joint, making it a standard fitting for residential and light commercial plumbing rough-in work. Weighing 0.177 pounds, this fitting meets the dimensional requirements of DWV applications where pressure-rated fittings are not required. Licensed plumbers install this type of fitting when routing horizontal or vertical drain lines that require a direction change of 90 degrees.

This elbow is suited for residential and light commercial DWV piping systems where copper is the specified material. Typical applications include branch drain lines, vent stack offsets, and horizontal-to-vertical transitions inside wall cavities and floor assemblies. It is not intended for pressure water supply lines. The C x C sweat connection is compatible with standard copper DWV tube, and the wrot construction provides consistent wall thickness and smooth interior surfaces for unobstructed drainage flow.

Key Features

• Wrot copper construction provides consistent wall thickness and smooth internal bore
• 90-degree change of direction for DWV drain and vent routing
• Cup-by-cup (C x C) sweat-solder ends for reliable, leak-free joints
• 1-1/4 inches x 1-1/4 inches sizing fits standard copper DWV tube
• Lightweight at 0.177 pounds for easy handling in tight spaces

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-1/4 inch copper DWV piping systems using sweat-solder connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the pipe is fully drained and dry before soldering. Clean pipe ends and fitting cups with emery cloth and apply flux before heating. Avoid overheating the fitting, as excessive heat can damage the copper and compromise the solder joint.

Technical Specifications

• Material: Copper (Wrot)
• Connection Type: C x C (Cup by Cup, Sweat Solder)
• Product Line: WROT DWV
• Size: 1-1/4 inches x 1-1/4 inches
• Angle: 90 Degrees
• Weight: 0.177 pounds
• Dimensions (L x W x H): 2.41 inches x 2.41 inches x 1.47 inches
• UPC: 683264464100

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: H055250
