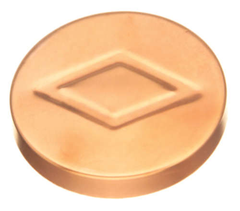

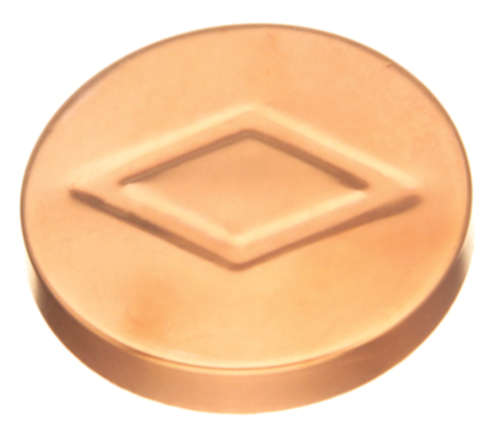

Elkhart Products DWVTESTCAP-12 Copper Dwv Test Cap

Product Description

The ELKHART PRODUCTS DWVTESTCAP-12 is a wrot copper DWV test cap used to pressure-test drain, waste, and vent piping systems during rough-in and inspection. The cap accepts a 0.5 inch copper pipe end and is joined by soldering, creating a temporary or permanent seal at the pipe terminus. At 0.003 pounds, it is a lightweight fitting suited for tight spaces in residential and light commercial DWV rough-in work. Licensed plumbers install this cap when system pressure testing is required before wall closure or final inspection. The wrot copper construction ensures a clean, leak-free solder joint consistent with copper DWV system standards.

This test cap is designed for use in copper DWV piping systems where pressure or air testing of drain, waste, and vent lines is required. Typical applications include new construction rough-in, renovation tie-ins, and pre-inspection test procedures on 0.5 inch copper DWV pipe runs. It is installed at open pipe ends to allow the system to be pressurized and checked for leaks before the piping is concealed. This fitting belongs to the Elkhart Products Wrot DWV product line, Model 316-T.

Key Features

• Wrot copper construction for reliable, consistent solder joints on DWV systems
• 0.5 inch size fits standard copper DWV pipe ends
• Solder-joint connection type for a secure, leak-tested seal
• Lightweight at 0.003 pounds, minimizing load on pipe runs
• Part of the established Elkhart Products Wrot DWV product line (Model 316-T)

Compatibility

Designed as an OEM-style replacement fitting for 0.5 inch copper DWV piping systems requiring a solder-type test cap.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and depressurize the system before beginning any work. Clean and flux both the pipe end and the fitting interior before soldering to ensure a sound joint. Do not apply pressure beyond the rated test parameters specified by the authority having jurisdiction for DWV pressure testing.

Technical Specifications

• Product Line: Wrot DWV
• Model: 316-T
• Size: 0.5 inches x 0.5 inches
• Material: Copper
• Connection Type: Solder
• Dimensions (L x W x H): 0.63 inches x 0.25 inches x 0.63 inches
• Weight: 0.003 pounds
• UPC: 683264462007

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: DWVTESTCAP-12
