Elkhart Products 10033148 COF3X212X2T 3X2-1/2X2 CXCXC W TEE

Product Description

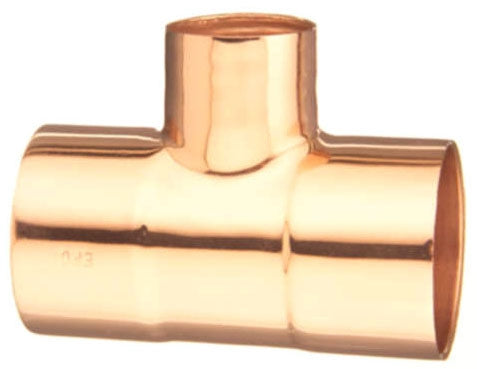

The Elkhart Products 10033148 is a tee fitting designed for both industrial and residential applications. This reducing tee fitting has a nominal size of three inches by two and one-half inches by two inches. It features female soldered connections on all ends.

• Type: Reducing
• Material: Copper
• Pressure Rating: 315 PSI at temperatures between minus twenty to one hundred degrees Fahrenheit

Product Highlights

The Elkhart Products tee fitting is suitable for use with ASTM B88 and B280 seamless copper tubing.

Product Information

Standard Information

• Manufacturer: Elkhart Products
• UPC: 683264331488

Technical Specifications

• Type: Reducing
• Material: Copper
• Thickness: 0.075 inches
• Nominal Size: 3 inches x 2-1/2 inches x 2 inches
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Pressure Rating: 315 PSI at -20 to 100 degrees Fahrenheit
• Temperature Rating: 400 degrees Fahrenheit
• Applicable Standard: ASME/ANSI B16.22, MSS-SP-104
