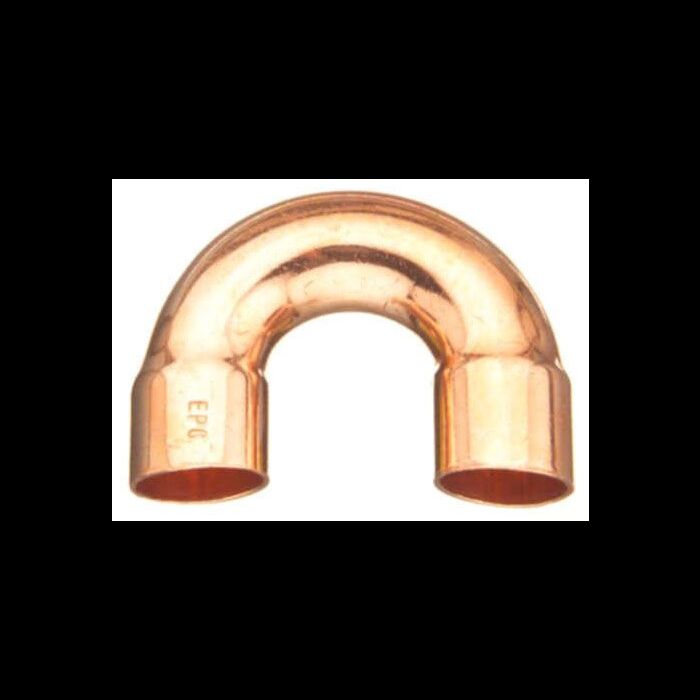

Elkhart 9292250 3/4 baseboard return bend 180 degree

Product Description

The Elkhart 9292250 is a 3/4 inch copper return bend fitting designed for plumbing and mechanical applications. This Wrot process fitting features a 180-degree angle and female soldered x female soldered end connections, conforming to ASME/ANSI B16.22 standards. It is suitable for industrial and residential use, with a temperature rating of 350 to 550 degrees F. This fitting is RoHS, REACH, and LEED compliant, and made in the USA.

• RoHS, REACH, and LEED compliant for environmental standards.
• Features a 180-degree angle with female soldered x female soldered end connections.
• Constructed from copper, suitable for joining ASTM B88 and ASTM B280 seamless copper tube.

Product Highlights

Durable copper return bend fitting for plumbing and mechanical systems, offering a 180-degree turn with female soldered connections.

Product Information

Standard Information

• Brand: ELKHART PRODUCTS
• Manufacturer Part Number: 9292250
• Country of Origin: USA

Technical Specifications

• Angle: 180 Degree
• Manufacturer: Aalberts N.V. / Aalberts Integrated Piping Systems (Elkhart Products Corporation)
• Manufacturer Part Number: 9292250
• Material: Copper
• Material Specification: MSS-SP-104
• Process: Wrot
• Series: 138
• Nominal Size: 3/4 Inch
• Temperature Rating: 350 to 550 Deg F
• Fitting Type: Return Bend
• Applicable Standard: ASME/ANSI B16.22
• End Connection: Female Soldered x Female Soldered
• UNSPSC: 40172103
• UPC: 039923323644
• Compliance: RoHS, REACH, LEED
• Country of Origin: USA
