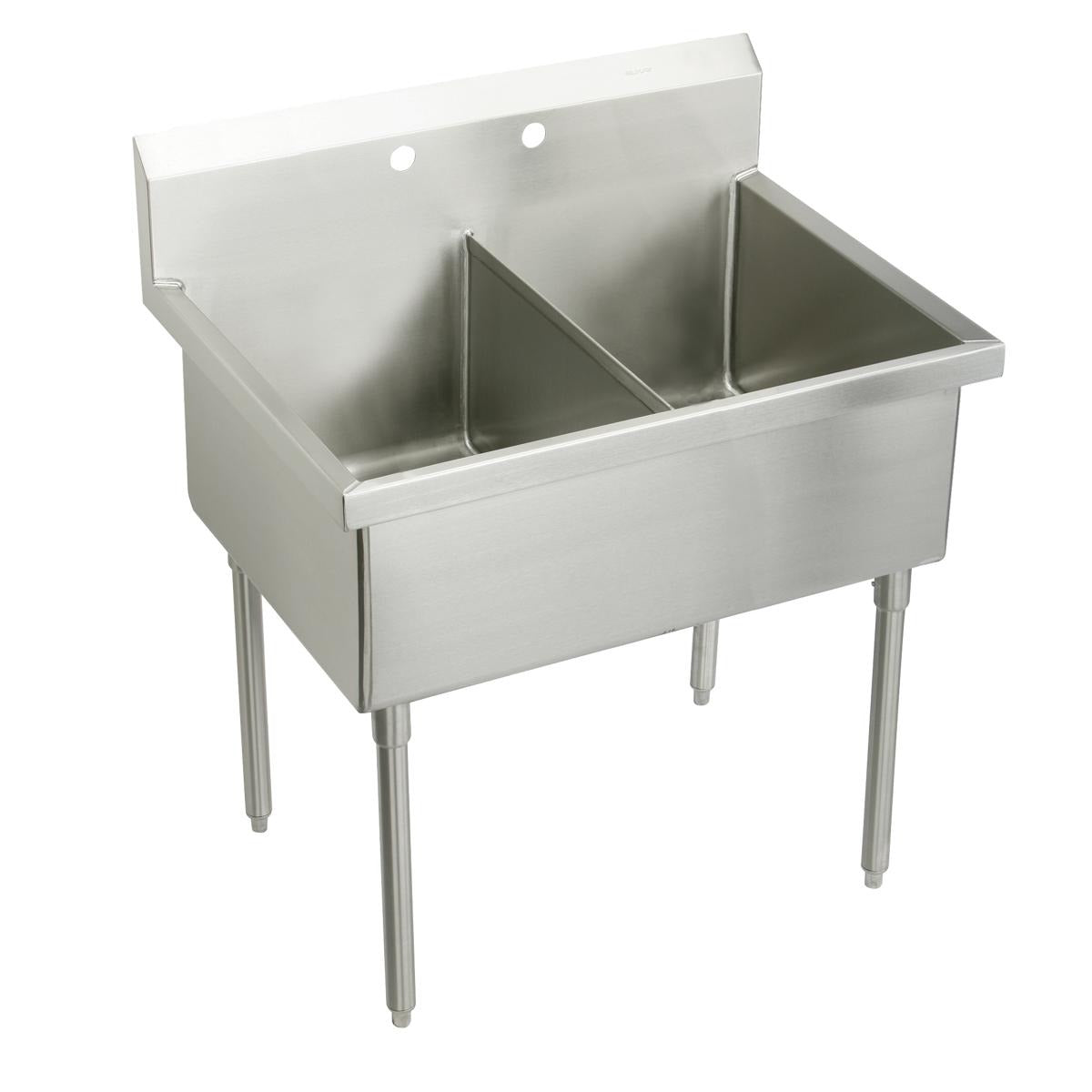

Elkay SS8248OF2 Double Compartment Scullery Sink

Product Description

The ELKAY SS8248OF2 is a heavy-duty double compartment scullery sink built for demanding commercial and institutional kitchen environments. Constructed from 14-gauge Type 304 stainless steel with square corner welded construction, this sink measures 51 inches overall width by 27.5 inches depth by 14 inches height. Each of the two bowls measures 24 inches by 24 inches with a 14-inch depth, providing substantial capacity for washing, soaking, and food preparation. A polished satin finish resists corrosion and simplifies cleaning. The sink ships as a single unit weighing 121 pounds, requiring two-person handling during placement.

This scullery sink is suited for commercial kitchens, institutional food service facilities, restaurant scullery stations, and heavy-use residential utility applications. The full-length backsplash stands 8 inches tall with a 45-degree slope to deflect splatter and reduce wall contamination. A 2-inch apron with channel rim design limits overflow and spillover at the front edge. Two faucet holes are pre-drilled to accommodate a range of deck-mount faucet configurations. Installation on adjustable tubular legs with 1-5/8-inch outside diameter and bullet-shaped feet provides floor-level stability across uneven surfaces. Legs adjust up to 1 inch to meet leveling requirements on site.

Key Features

• 14-gauge Type 304 stainless steel construction for long-term corrosion resistance in wet commercial environments
• Two 24 x 24 x 14-inch bowls with centrally located 3.5-inch drain openings for efficient drainage
• Square corner welded construction provides a seamless interior that is easy to sanitize
• Full-length 8-inch backsplash with 45-degree slope deflects grime and splash
• 2-inch apron with channel rim design minimizes overflow at the sink edge
• Pre-drilled with two faucet holes to support standard deck-mount faucet installations
• Adjustable tubular legs with 1-5/8-inch O.D. and bullet feet for stable, level installation

Compatibility

Designed as an OEM-style commercial scullery sink for use with standard deck-mount faucets and compatible with adjustable tubular leg assemblies typical in commercial food service sink installations.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply before connecting drain fittings or faucet supply lines. At 121 pounds, the sink requires at least two people for safe positioning and placement onto leg assemblies. Verify floor levelness and adjust legs before making final drain and supply connections.
