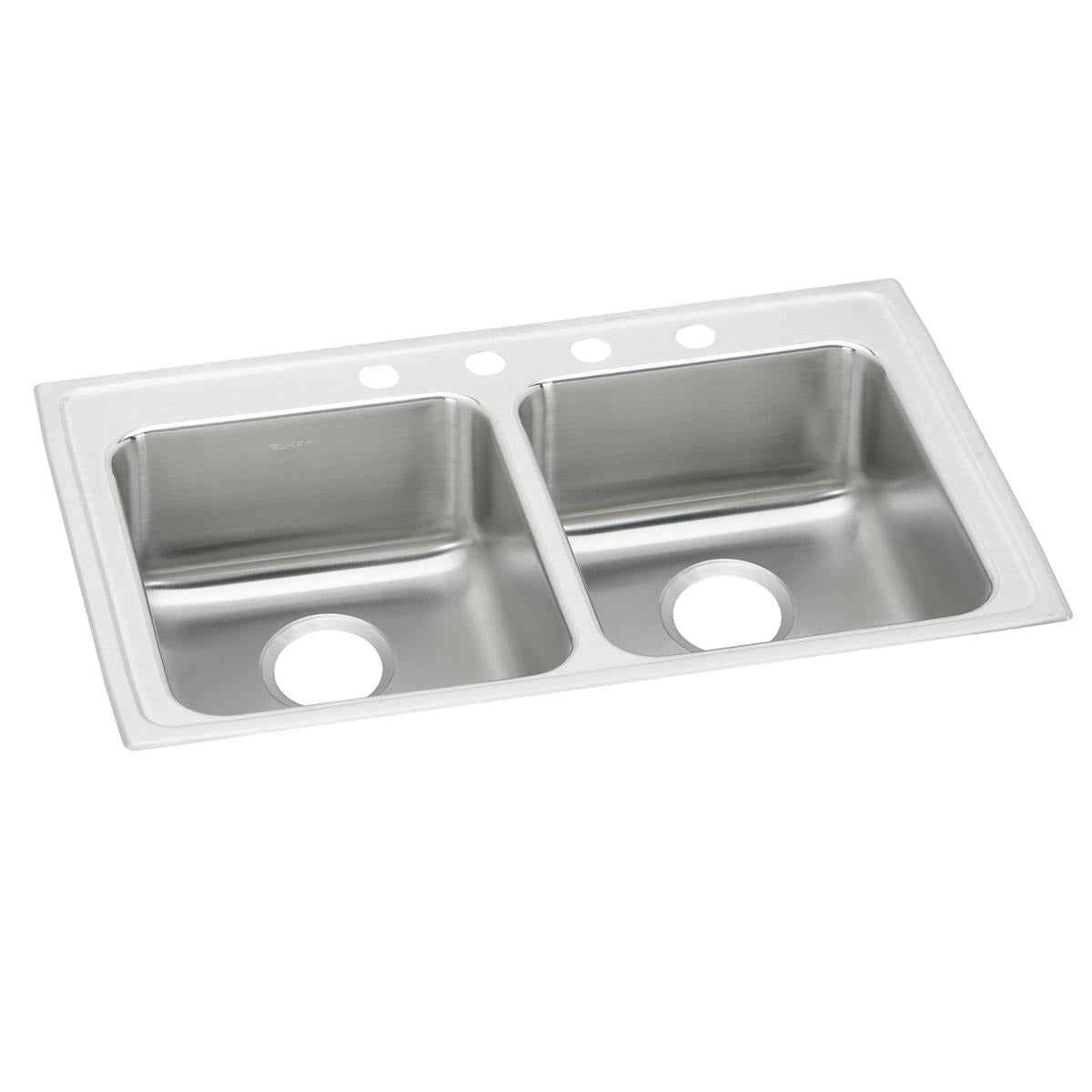

Elkay Residential LRAD2922550 Double Bowl Kitchen Sink

Product Description

The ELKAY RESIDENTIAL LRAD2922550 is an 18-gauge Type 304 stainless steel double bowl drop-in kitchen sink measuring 29 inches by 22 inches by 5.5 inches overall. Each of the two equal-sized bowls measures 11.5 inches long by 16 inches wide, giving side-by-side workspace for washing, soaking, and prep tasks simultaneously. The rear-center drain placement keeps the bowl floor clear and allows for better use of cabinet space below. Sound-deadening pads are bonded to the underside to reduce vibration and noise during use. Installed by a licensed plumber or experienced kitchen remodeler, this sink is ADA compliant when mounted per applicable guidelines.

This drop-in sink is suited for residential kitchen installations where a self-rimming mount into a standard countertop cutout is preferred. It is compatible with countertops up to 0.75 inches thick. The U-channel mounting clip system is accessed from inside the channel, reducing the amount of time spent working under the sink during installation. The rear-center drain layout on each bowl accepts a 3.5-inch drain opening. This sink fits standard residential kitchen cabinetry and is made in the USA.

Key Features

• 18-gauge Type 304 stainless steel construction for long-term durability under heavy daily use
• Two equal-sized bowls, each 11.5 inches long by 16 inches wide, for multitasking at the sink
• Rear-center drain placement maximizes usable bowl floor space and cabinet clearance below
• Sound-deadening pads bonded to the sink underside reduce noise and vibration
• U-channel mounting clips located inside the channel for faster drop-in installation
• ADA compliant when installed per applicable accessibility requirements
• Made in the USA

Compatibility

Designed as a drop-in replacement or new-installation sink for residential kitchen countertops up to 0.75 inches thick with a 3.5-inch drain opening. Compatible with standard undermount-style drain assemblies sold separately.

Installation Notes

Installation is typically performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and disconnect existing drain and supply lines before removing any existing sink. Use the included U-channel mounting clips to secure the sink to the countertop from above; avoid over-tightening clips, which can distort the rim channel. Apply a continuous bead of silicone sealant around the perimeter of the cutout before setting the sink to prevent water intrusion.
