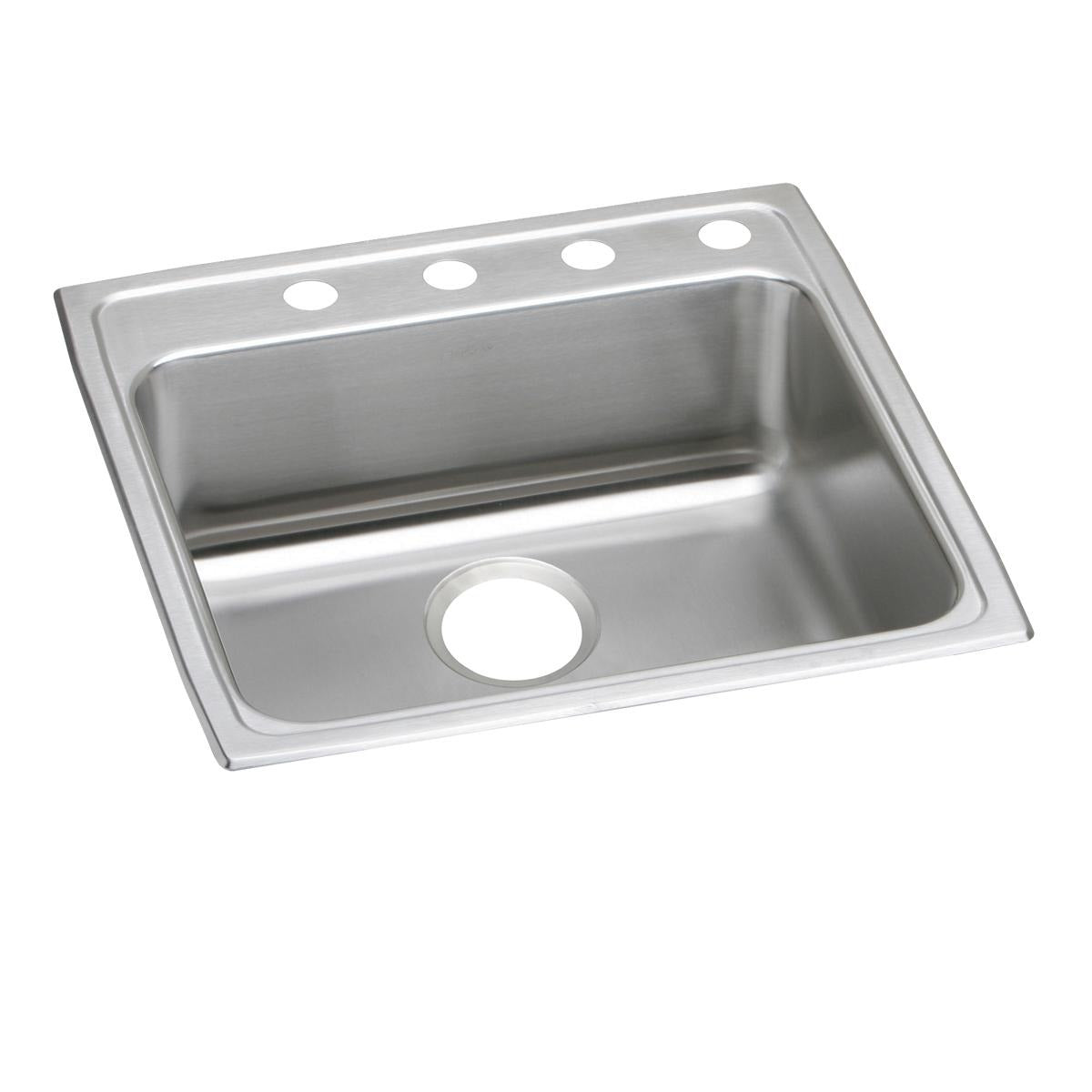

Elkay LRAD2222401 Single Bowl Drop-in Stainless Steel Sink

Product Description

The ELKAY LRAD2222401 is a drop-in, single bowl kitchen sink constructed from 18-gauge Type 304 stainless steel. Measuring 22 inches by 22 inches overall with a bowl interior of 19 inches by 16 inches, it delivers uninterrupted workspace for dishwashing, food prep, and general utility tasks. The rear center drain placement maximizes usable bowl depth and keeps under-sink plumbing clearance open. Sound-deadening pads are applied to the underside to reduce vibration and noise during use. When installed per manufacturer guidelines, the sink meets ADA compliance requirements, making it appropriate for accessible residential and light commercial applications. Plumbers and kitchen installers handle this fixture in both new construction and remodel settings.

The LRAD2222401 is suited for residential kitchens, bars, laundry rooms, and light commercial spaces requiring a compact, single bowl drop-in sink. A minimum cabinet size of 27 inches is required. The countertop cutout dimension is 21-3/8 inches by 21-3/8 inches with a 1-1/2 inch corner radius. The included mounting hardware accommodates countertops up to 3/4 inch thick, and the U-channel installation method reduces the need for extended work in the cabinet below. The uniform satin grain finish reduces the visible accumulation of light surface scratches over time.

Key Features

• 18-gauge Type 304 stainless steel construction for corrosion resistance and long-term durability
• ADA compliant when properly installed, supporting accessible design requirements
• Rear center drain optimizes bowl space and under-sink plumbing layout
• Sound-deadening pads minimize vibration and operational noise
• U-channel mounting system simplifies drop-in installation with hardware included for countertops up to 3/4 inch thick
• Manufactured in the USA

Compatibility

Designed as a drop-in replacement or new-install single bowl sink for residential and light commercial countertop applications requiring a 21-3/8 inch by 21-3/8 inch cutout and a minimum 27-inch base cabinet.

Installation Notes

Installation is performed by a licensed plumber or qualified kitchen installer. Shut off the water supply and clear the cabinet area before beginning. Verify countertop cutout dimensions and corner radius before cutting. Follow local IPC requirements for drain connection and ensure the mounting hardware is fully seated and torqued uniformly to prevent leaks at the sink-to-countertop interface.
