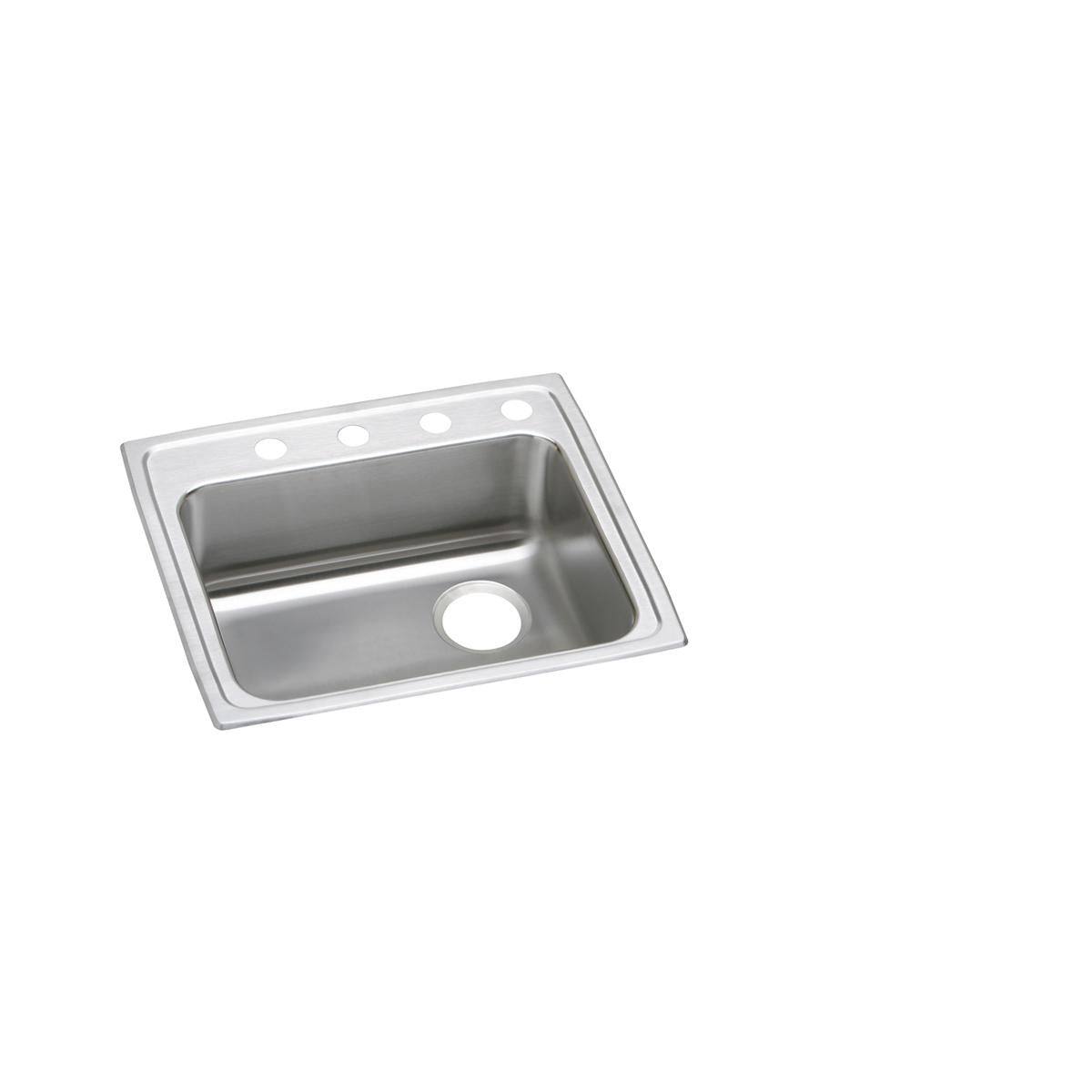

Elkay LRAD221965R1 Drop-in Kitchen Sink 22x19.5 Ada

Product Description

The ELKAY LRAD221965R1 is a single-bowl drop-in kitchen sink built from 18-gauge Type 304 stainless steel with a lustrous finish designed to resist scratching and maintain appearance over extended use. The bowl measures 22 inches wide by 19.5 inches front-to-back by 6.5 inches deep, meeting ADA depth requirements for accessible installations. Sound-deadening pads are applied to the underside to reduce vibration and noise during use. A rear-right drain placement opens up usable bowl space and allows for better cabinet clearance below. This sink is manufactured in the USA and is suited for installation by licensed plumbers in residential kitchen applications.

The LRAD221965R1 fits standard residential kitchen countertop cutouts and installs using a drop-in method with a U-channel frame and included mounting clips. The rectangular bowl design suits a wide range of countertop materials including laminate, solid surface, tile, and stone. Its ADA-compliant bowl depth makes it appropriate for accessible kitchen builds and remodels where reach and clearance requirements must be met. The rear-right drain location is particularly useful in kitchen layouts where under-sink plumbing space is limited or where a garbage disposal must be positioned to one side.

Key Features

• 18-gauge Type 304 stainless steel construction for corrosion resistance and long-term durability
• Single bowl measuring 22 x 19.5 x 6.5 inches with ADA-compliant bowl depth
• Drop-in installation with U-channel frame and included mounting clips
• Rear-right drain placement maximizes usable bowl area and under-sink clearance
• Sound-deadening pads reduce vibration and operational noise
• Manufactured in the USA

Compatibility

Designed as a drop-in replacement or new-install single-bowl kitchen sink for standard residential countertop cutouts accepting a 22 x 19.5 inch basin with a U-channel mounting frame.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Power down any in-sink disposal units and shut off the water supply before beginning work. The drop-in design requires a countertop cutout sized to the manufacturer specifications; confirm cutout dimensions before installation. Apply a continuous bead of plumber's putty or silicone sealant around the perimeter flange prior to setting the sink to ensure a watertight seal.
