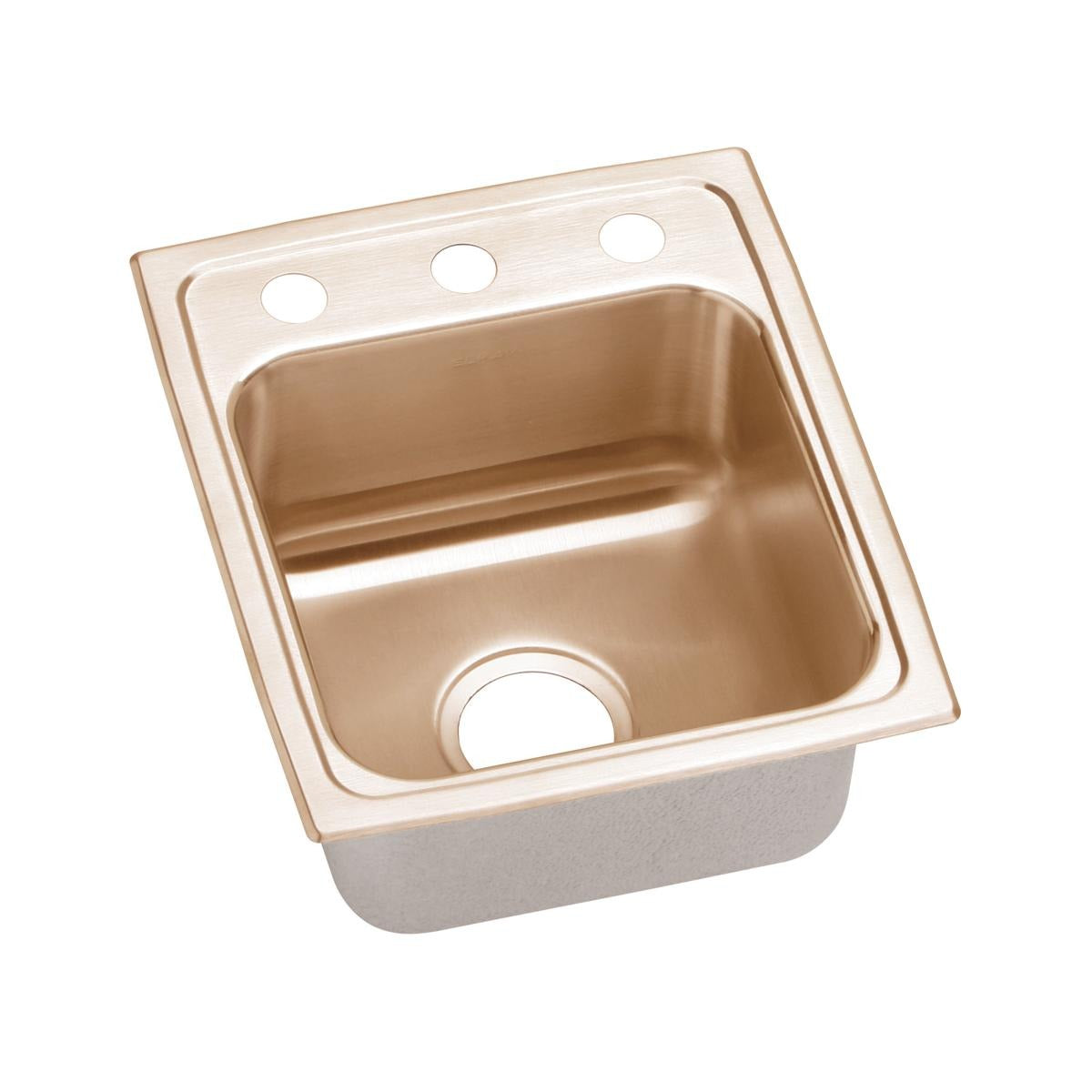

Elkay LRAD1316651-CU Drop-in Sink Ada Copper 13x16

Product Description

The ELKAY LRAD1316651-CU is a drop-in kitchen sink crafted from 18-gauge antimicrobial copper, designed for residential and commercial installations where hygiene and durability are priorities. The single square bowl measures 10 x 10 inches with a 6.375-inch depth, and the overall sink dimensions are 13 x 16 x 6.5 inches. Antimicrobial copper actively eliminates more than 99.9% of bacteria within two hours of contact with the surface. Sound Guard technology uses large noise-dampening pads to reduce basin sound during use. The centered 3.5-inch drain opening supports efficient water flow, and the copper finish is repairable, allowing deep scratches to be buffed out to restore the reflective surface.

This sink is suited for ADA-compliant installations in residential kitchens, light commercial kitchens, and accessible restroom or prep areas. Its compact 13 x 16-inch footprint requires a minimum cabinet size of 18 inches, making it practical for bar stations, compact prep areas, and retrofit applications. The U-channel mounting design positions clips inside the channel, simplifying drop-in installation without requiring specialized tooling. Plumbers and finish contractors typically specify this sink where both accessibility compliance and antimicrobial surface performance are required.

Key Features

• 18-gauge antimicrobial copper construction eliminates more than 99.9% of bacteria within two hours of contact
• ADA-compliant design supports accessible installation requirements
• Square single bowl with 10 x 10-inch interior and 6.375-inch depth provides usable wash space
• Sound Guard technology with large dampening pads reduces basin noise during operation
• Repairable copper finish allows surface restoration after deep scratches
• U-channel mounting system positions clips inside the channel for faster drop-in setup
• Manufactured in the USA by Elkay

Compatibility

Designed as a drop-in replacement or new installation sink for cabinets with a minimum 18-inch base cabinet opening. ADA-compliant fitment for residential and light commercial applications requiring accessible sink installations.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off the water supply and disconnect existing drain and supply lines before removing any existing sink. Follow ADA rough-in height and knee-clearance requirements when positioning the cabinet and sink for accessible installations. Apply a continuous bead of silicone sealant around the sink perimeter before dropping into the cutout, then secure using the included U-channel mounting clips from below.
