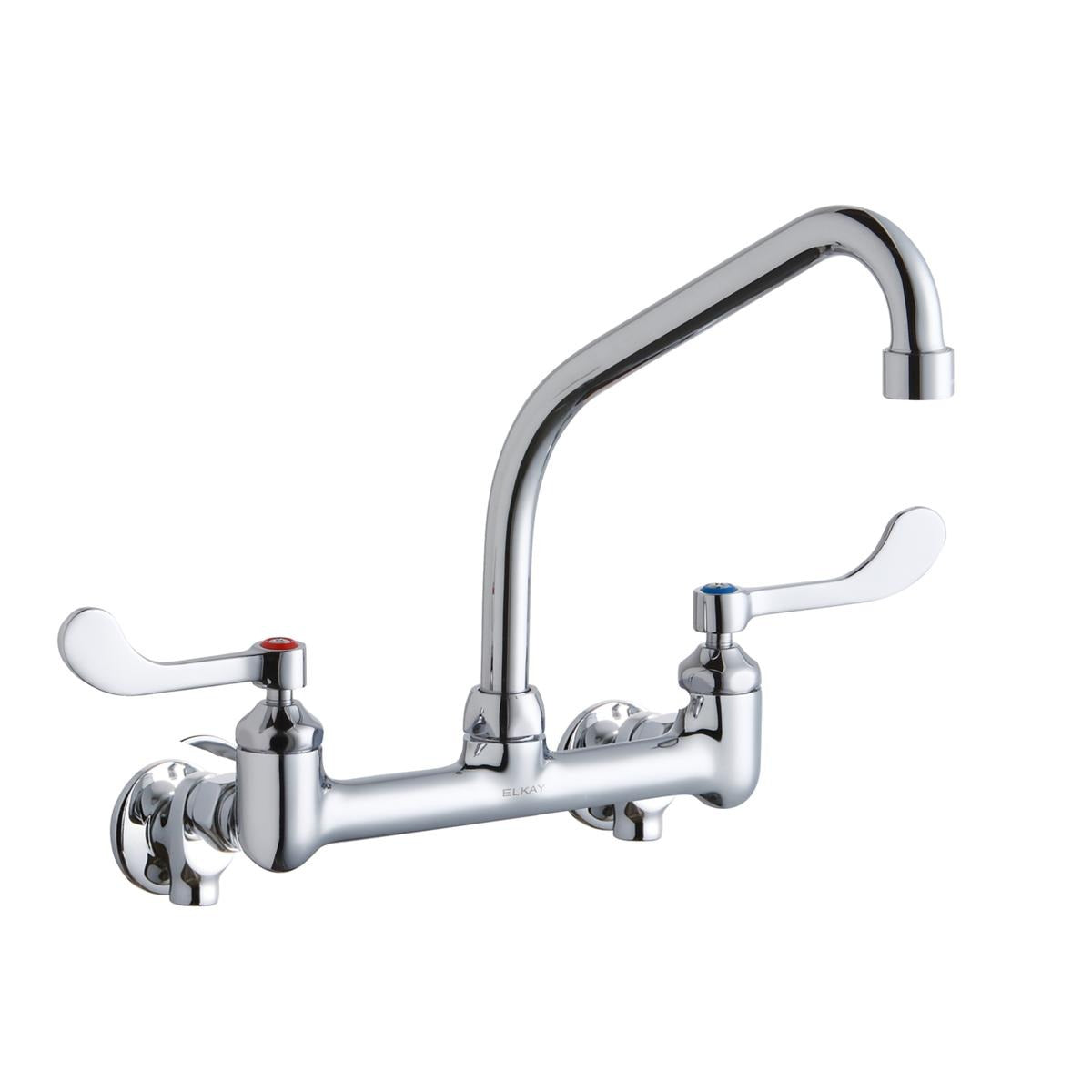

Elkay LK940HA08T4S Wall Mount Faucet 1.5 Gpm 8 Inch

Product Description

The ELKAY LK940HA08T4S is a centerset wall mount faucet built for commercial kitchens, food service facilities, and institutional handwashing stations. Constructed from solid brass, it delivers long-term resistance to corrosion and daily wear. The high-arc spout rises 10.5 inches and extends 8 inches of reach, giving users adequate clearance for a range of sink tasks. A quarter-turn ceramic disc valve controls flow and provides consistent, low-maintenance operation. The vandal-resistant aerator ships set to 1.5 GPM and includes additional inserts for 2.2 GPM and 0.5 GPM to suit varying flow requirements. Licensed plumbers install this fixture in commercial and institutional settings where durability and hygiene compliance are priorities.

The LK940HA08T4S is designed for 8-inch centerset wall mount applications commonly found in commercial kitchens, school restrooms, food processing areas, and cafeteria handwashing stations. The two 4-inch wristblade handles allow hands-free or restricted-hand operation and are configured to meet ADA accessibility requirements. The 1/2-inch adjustable inlets include integral stops for straightforward service isolation. A spout swing restriction pin is included to lock the spout in a fixed position when the application requires it, such as above a single-basin or against a wall partition.

Key Features

• Solid brass body construction for corrosion resistance and long service life
• High-arc spout at 10.5 inches height with 8 inches of reach
• Quarter-turn ceramic disc valve for reliable, low-maintenance flow control
• Vandal-resistant aerator set to 1.5 GPM; includes 2.2 GPM and 0.5 GPM inserts
• 4-inch wristblade handles with ADA-compliant operation
• 1/2-inch adjustable inlets with integral stops for in-line service shutoff
• Spout swing restriction pin for fixed-position installations

Compatibility

Designed as an OEM-style wall mount faucet for 8-inch centerset commercial sink applications. Suitable for use in commercial kitchens, institutional restrooms, and food service environments requiring ADA-compliant fixture installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the applicable edition of the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before beginning any connection work. The 1/2-inch adjustable inlets with integral stops allow for in-place service without removing the faucet body. Do not overtighten fittings on the brass body; hand-tight plus a quarter turn with wrenches is the standard approach for compression-style connections.
