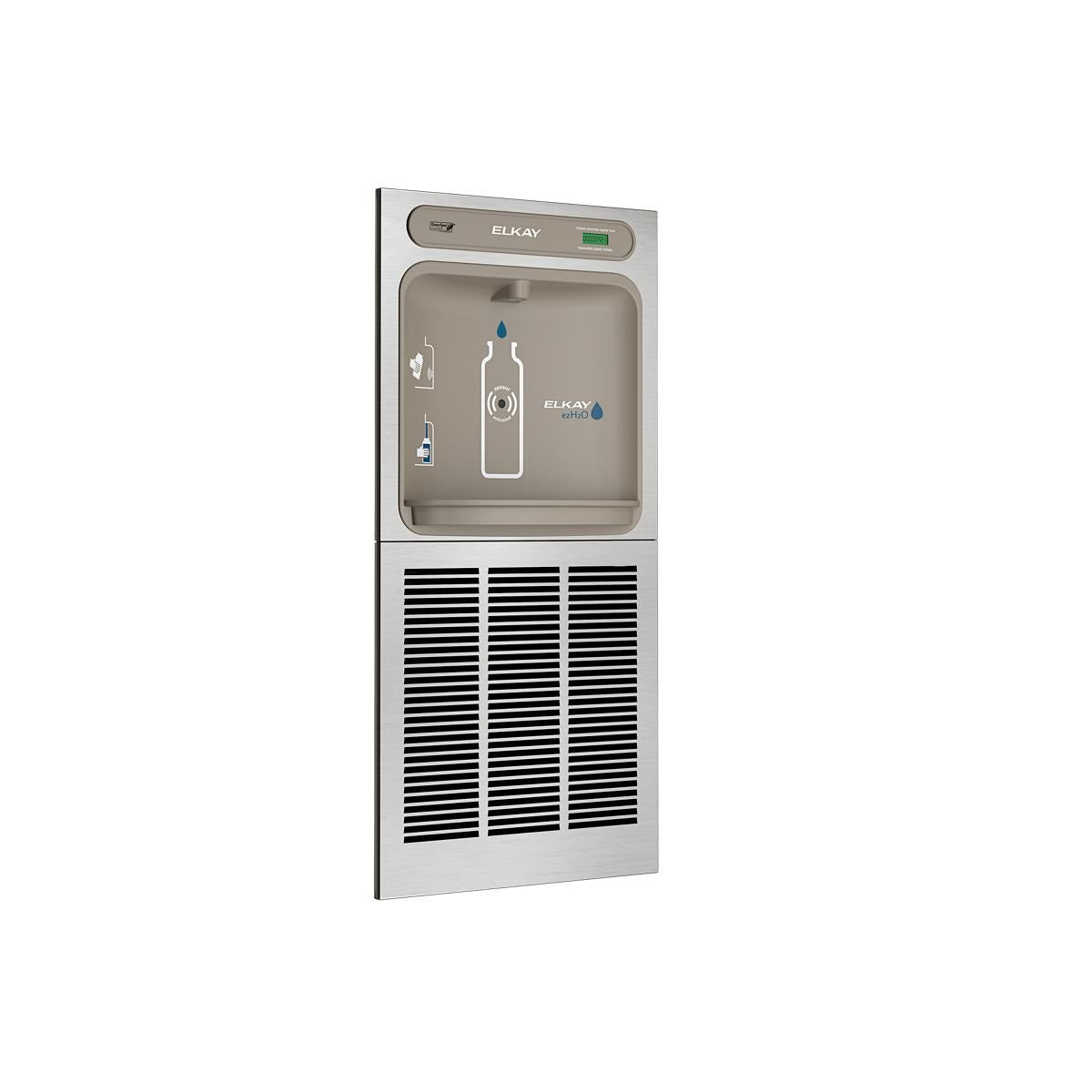

Elkay EZWSGRN8K In-wall Bottle Filling Station 8.0 Gph

Product Description

The ELKAY EZWSGRN8K is a recessed, in-wall bottle filling station designed for indoor commercial and institutional environments. It delivers chilled water at 8.0 gallons per hour with a fill rate of 1.1 GPM, making it suitable for high-traffic locations where fast, reliable hydration access is required. The unit operates on 115 volts at 60 Hz and draws 260 watts. Activation is handled by a hands-free electronic sensor, eliminating the need for physical contact during use. Silver ion antimicrobial protection is applied to critical plastic components to inhibit mold and mildew growth. A licensed plumber or qualified facilities technician typically handles installation.

The EZWSGRN8K is intended for indoor use in schools, gyms, offices, and public spaces where reducing single-use plastic bottle consumption is a priority. Laminar flow technology produces a smooth, arch-style stream that fills standard bottle openings without splashing. The unit includes a Green Ticker display that tracks the number of 20 oz. plastic bottles saved, supporting sustainability program reporting. It can be installed as a standalone unit or paired with Elkay SwirlFlo or Soft Sides drinking fountains. The separately sold mounting frame MFWS100 is required for recessed wall installation.

Key Features

• Chilling capacity of 8.0 gallons per hour at a fill rate of 1.1 GPM
• Hands-free electronic sensor activation reduces surface contact
• Laminar flow stream technology for splash-free bottle filling
• Silver ion antimicrobial protection on critical plastic components
• Green Ticker display tracks equivalent 20 oz. plastic bottles saved
• Real drain system eliminates standing water in the drain area
• Lead reduction design compliant with NSF 372 standards

Compatibility

Compatible for use as a standalone unit or paired with Elkay SwirlFlo or Soft Sides drinking fountains. Recessed wall installation requires the separately sold mounting frame MFWS100.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and disconnect electrical power to the installation area before beginning work. The recessed design requires adequate wall depth and a dedicated rough-in location; verify wall cavity dimensions against the unit footprint before cutting. Do not energize the unit until all water connections are complete and leak-checked.
