Product Description

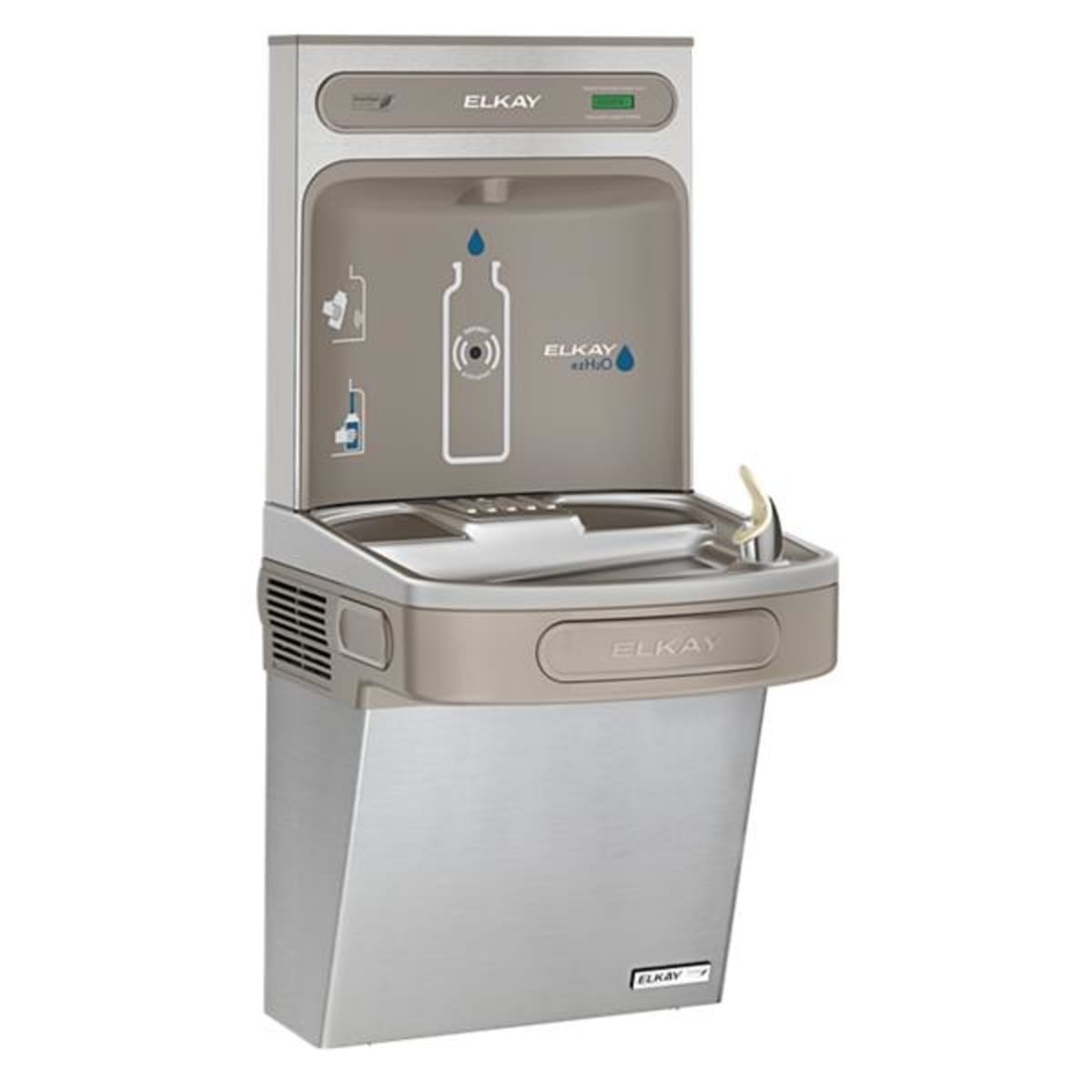

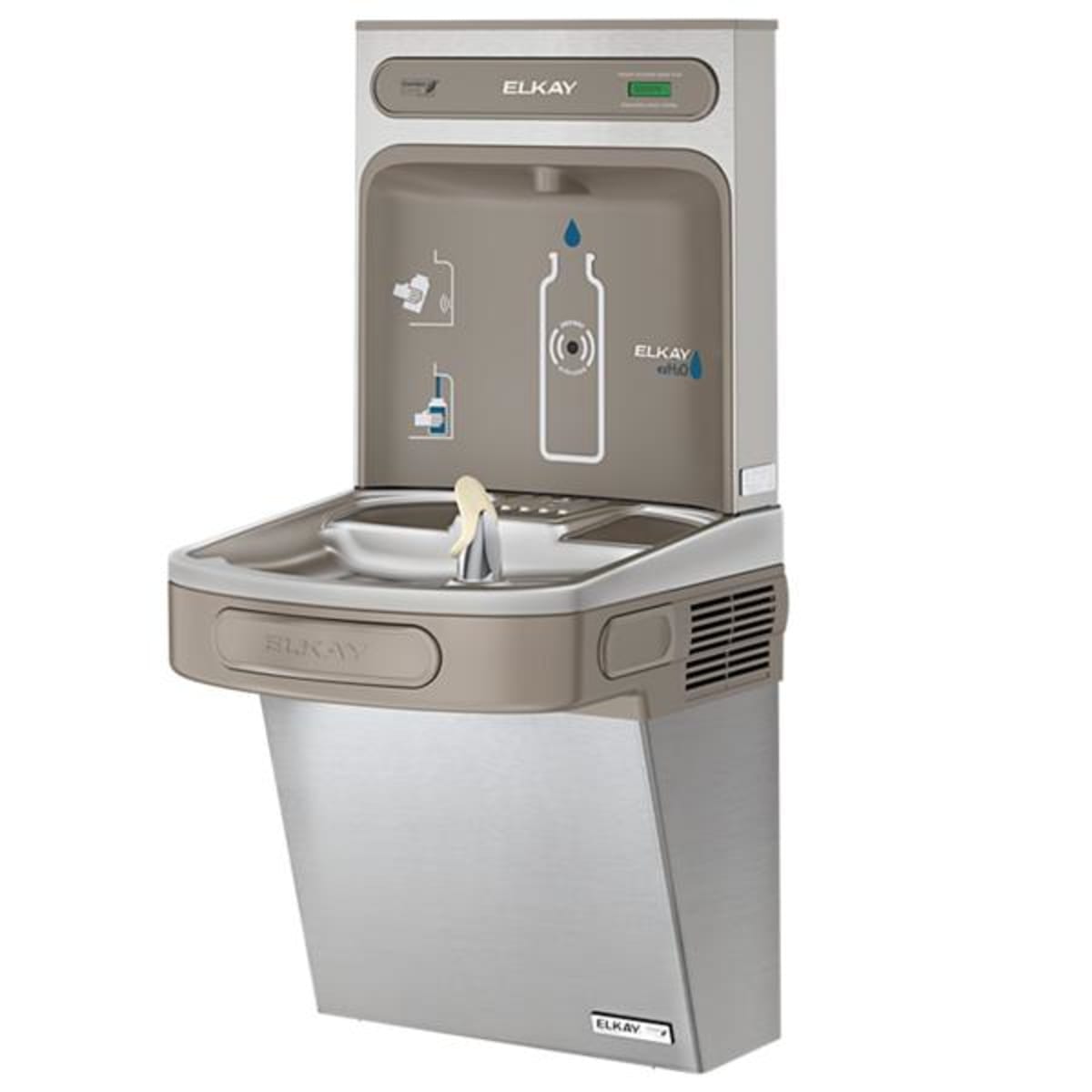

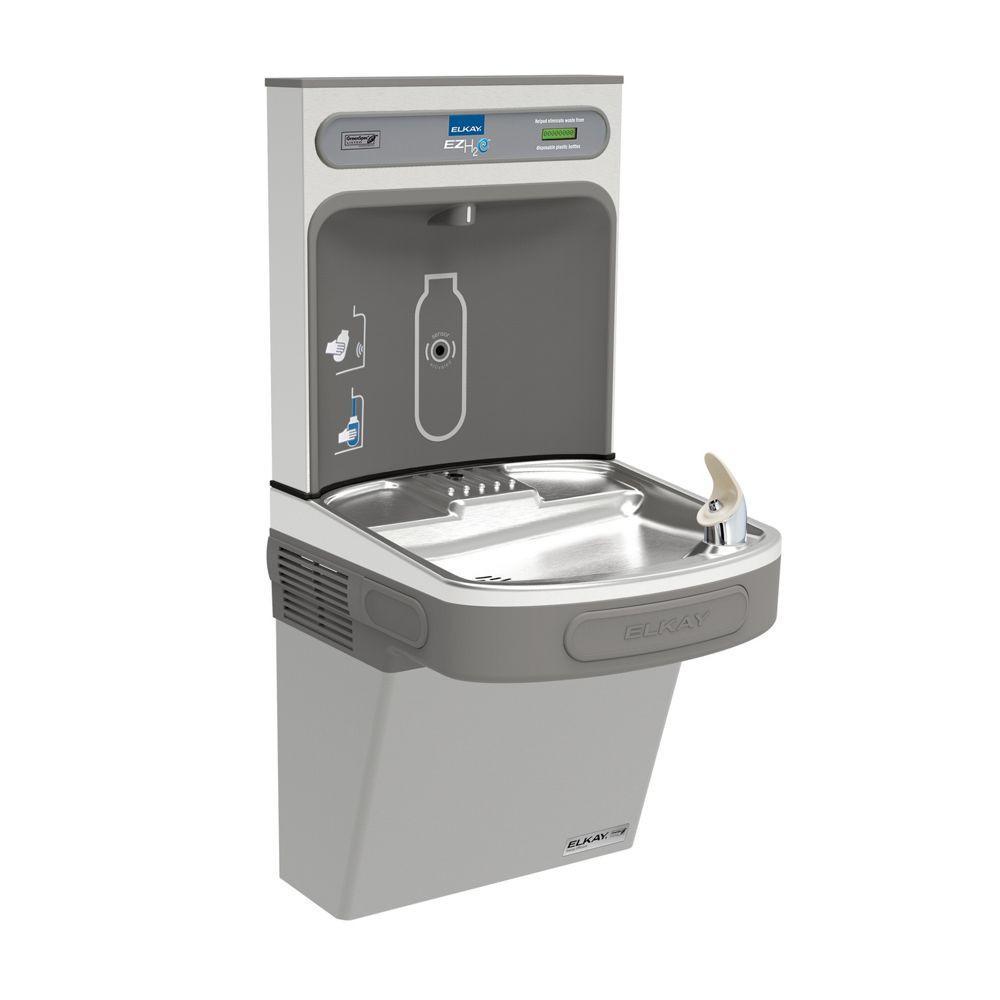

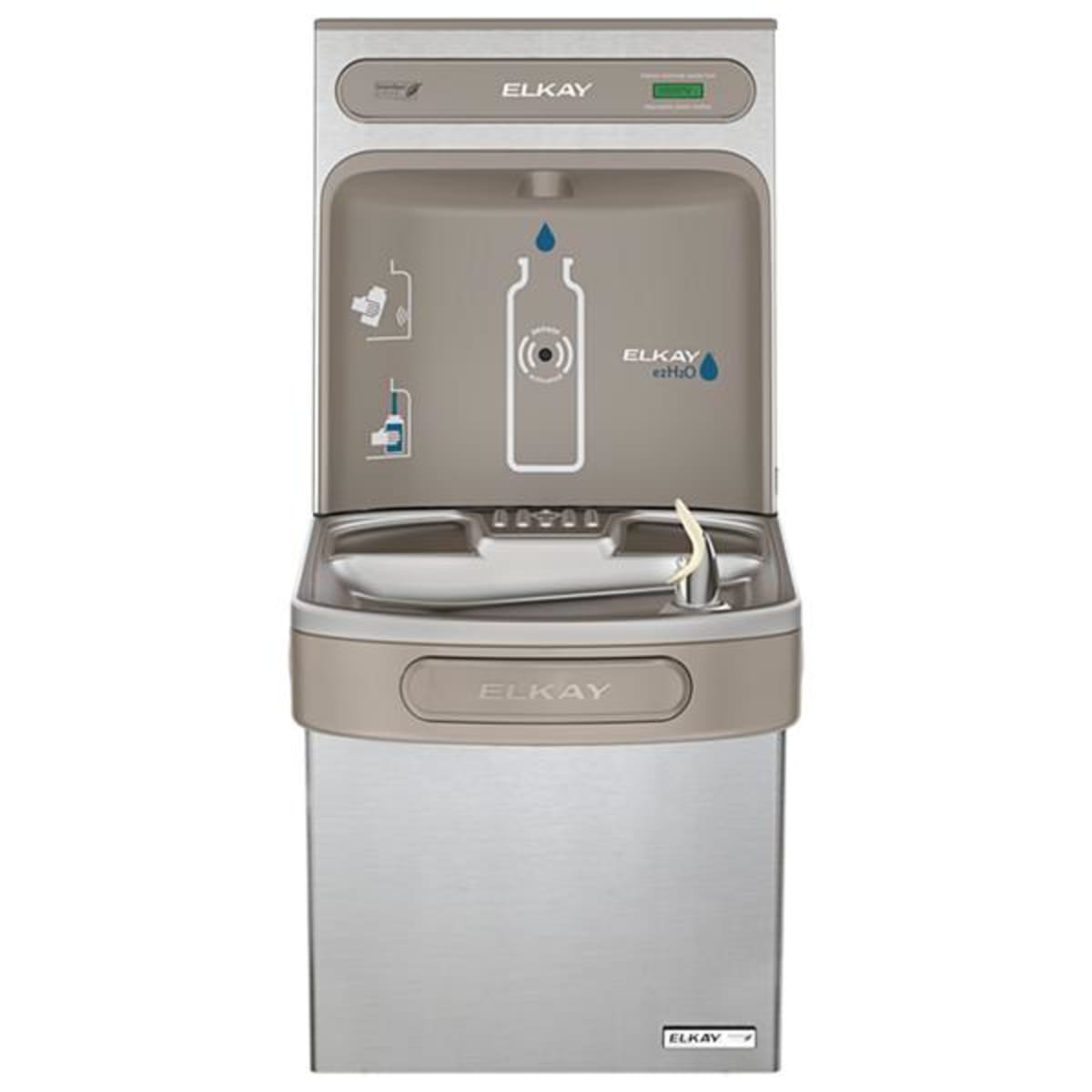

The Elkay EZSG8WSSK EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. The bottle filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
Product Highlights
This bottle filling station enhances sustainability by minimizing dependency on disposable plastic bottles. It features a high-performance compressor and insulation to greatly reduce energy consumption.
Product Information
Standard Information
-
Brand: ELKAY
-
Manufacturer Part Number: EZSG8WSSK
-
Country of Origin: United States
Technical Specifications
-
Width: 19"
-
Height: 39.06"
-
Length: 18.3750"
-
Unit_Width: 19
-
FinishColor: Stainless Steel Tones
-
Finish_Name: Stainless Steel
-
ADA_Compliant: Yes
-
Buy_America_Act_Compliant: No
-
Commercial_or_Residential: Primarily Commercial
-
Bubbler Style: Flexi-Guard StreamSaver
-
Mounting Type: Wall Mount (On-Wall)
-
Brand: Elkay
-
Depth [Specifications]: 18.375"
-
Width [Specifications]: 19"
-
Height [Specifications]: 39.06"
-
Voltage [Specifications]: 115V/60Hz
-
Includes [Specifications]: Water Cooler (EZSG8WSS), Bottle Filler (EZWSR)
-
Material [Specifications]: Stainless Steel
-
ADA Compliant [Specifications]: Yes
-
Indoor / Outdoor [Specifications]: Indoor
-
Number of Levels [Specifications]: 1
-
Cold Water Capacity [Specifications]: 8.0 gph
-
Country of Origin (subject to change) [Specifications]: United States
-
Number of Stations: 1
-
Power: 115V/60Hz
-
Dimensions: L: 18-3/8"
W: 19"
H: 39-1/16"
-
Chilling Capacity: 8.0 GPH
-
Installation Location: Indoor
-
Filtered: No
-
Code Compliance: ASME A112.19.3/CSA B45.4
CSA B45.4
CSA C22.2 No. 120
UL 399
NSF 61
NSF 372
-
Overall Dimensions: 35-5/8" Tall x 19" Wide x 19" Deep
-
Manufacturer Model No.: EZSG8WSSK
-
Included: Water Cooler (EZSG8WSS)
Bottle Filler (EZWSR)
-
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited
-
COOLER CABINET FINISH: Stainless Steel
-
PRODUCT COMPLIANCE: GreenSpec
ADA Compliant
CAN/CSA 22.2 120
ASME A112.19.3/CSA B45.4
Buy American Act
UL 399
NSF 61
NSF 372 (no lead)
-
Application: Indoor
-
Depth (in): 19
-
Filtration: Non-Filtered
-
Finish: Stainless Steel
-
GPH: 8
-
GPM: 1.1
-
Height (in): 25.31
-
Material: Stainless Steel
-
Mounting Location: Wall
-
Number of Levels: 2
-
Output: 1.1 GPM
-
Product: Bottle Filler Water Fountain
-
Product Type: Commercial Plumbing Supplies
-
Refrigeration Type: Refrigerated
-
Voltage: 115
-
Weight: 82.00
-
Features: Antimicrobial, Green Ticker™
-
Shipping Weight: 82
lbs
