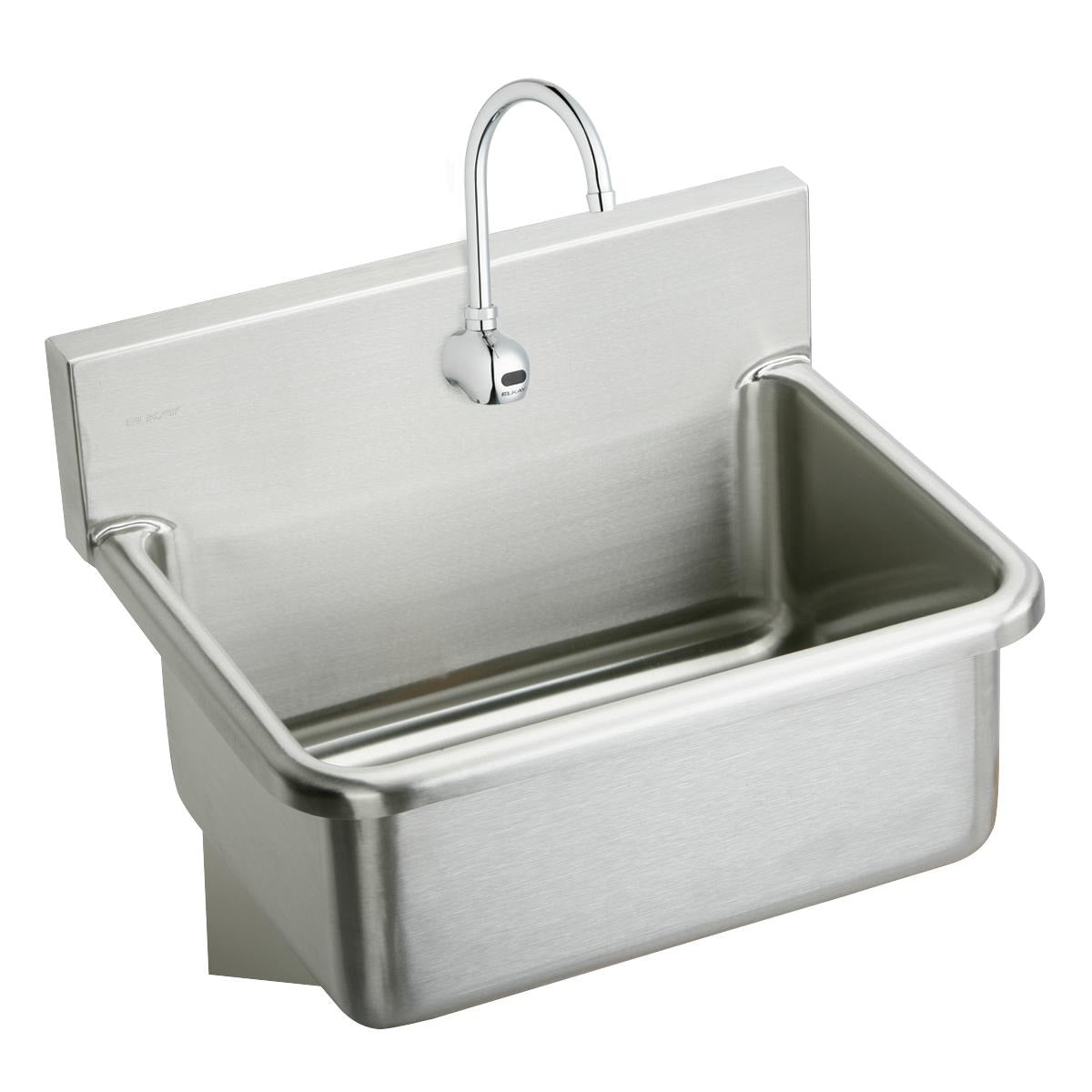

Elkay EWS3120SACC Wall Hung Hand Wash Sink Kit Sensor Faucet

Product Description

The ELKAY EWS3120SACC is a wall-hung single bowl hand wash sink kit designed for commercial and institutional environments where hygiene and durability are non-negotiable. Built from 14-gauge Type 304 stainless steel with a satin finish, the sink measures 31 inches in length, 19.5 inches in width, and 10.5 inches in depth overall. The single bowl interior measures 28 inches long, 16 inches wide, and 10.5 inches deep, with a centrally located 3.5-inch drain opening for efficient water flow. The kit includes the LKB722C sensor faucet, which operates on both AC power and battery, enabling hands-free operation to support infection control protocols. Wall hangers and stainless steel support brackets are included for a complete installation. Licensed plumbers and commercial contractors are the primary installers.

This sink kit is suited for high-traffic commercial and institutional settings where reliable handwashing stations are required. Typical applications include educational facilities such as classrooms and laboratories, healthcare and medical facilities, and recreation or community centers. The hands-free sensor faucet makes it particularly appropriate for environments where touch-free hygiene is a priority, such as patient care areas or food-adjacent spaces. The complete kit format reduces procurement steps by bundling mounting hardware and faucet into one SKU.

Key Features

• 14-gauge Type 304 stainless steel construction with satin finish for corrosion resistance and easy cleaning
• Includes LKB722C sensor faucet with dual AC power and battery operation for hands-free use
• 1-3/4 inch radius coved corners and 1-1/2 inch rolled rims reduce cleaning difficulty and sharp-edge hazards
• Centrally located 3.5-inch drain opening supports efficient water drainage
• Wall hangers and stainless steel support brackets included for complete, secure installation
• Lead-free construction compliant with NSF 372 standards

Compatibility

Designed as a complete OEM-style commercial hand wash sink kit for wall-hung single bowl applications in institutional and commercial plumbing systems. Includes the LKB722C sensor faucet as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify wall structural capacity before mounting, as the filled sink and bracket assembly carry significant load. The sensor faucet requires either a hardwired AC connection or battery installation prior to commissioning - confirm power source availability before rough-in. Do not overtighten supply connections to the sensor faucet valve body; follow the faucet installation documentation included with the LKB722C.
