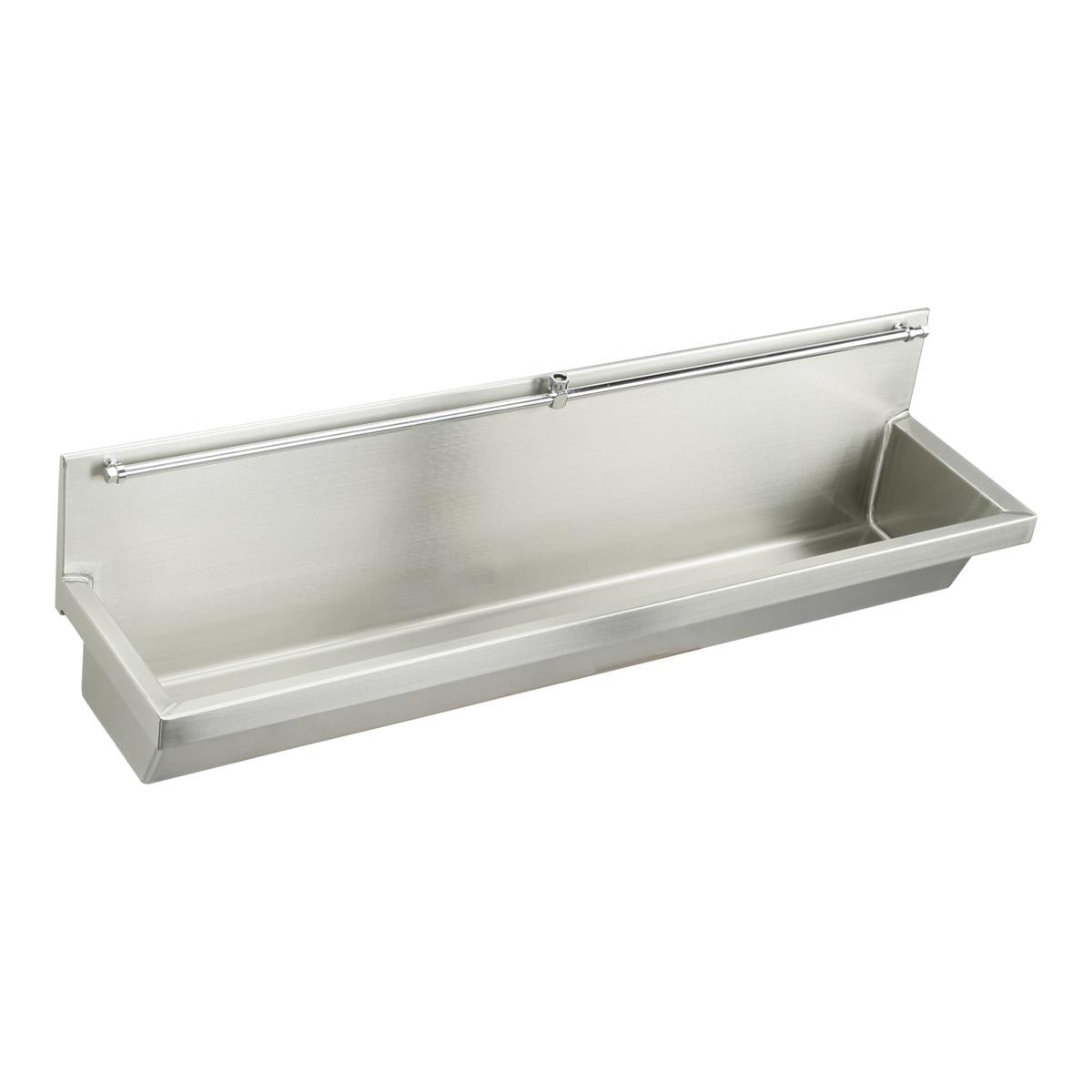

Elkay EU6014C Wall Hung Multiple Station Urinal Kit

Product Description

The ELKAY EU6014C is a wall-hung multiple station urinal kit constructed from 14-gauge Type 304 stainless steel and finished to a satin polish. The unit measures 60 inches x 14 inches x 8 inches overall, with a single bowl interior measuring 58.5 inches in length, 11 inches in width, and 8 inches in depth. Welded seamless corners reduce crevices that can harbor bacteria, making the fixture well-suited for sanitation-critical environments. A full-length sloping backsplash with an integrated flush pipe directs wastewater efficiently toward the centered 1.75-inch drain. Sound-deadening material is applied to reduce noise and vibration during use. Licensed plumbers and mechanical contractors handle installation of this fixture type.

This urinal kit is designed for high-traffic commercial and institutional restrooms including schools, healthcare facilities, and office buildings. The kit ships complete with the EU6014 urinal body, LK392 flush pipe, and LK177 strainer, so no additional component sourcing is required before rough-in. The fixture is compatible with any water control flush valve or tank system, giving contractors flexibility in valve selection to meet local code or owner specifications. A continuous-length wall hanger and integral stainless steel mounting Z brackets are included to streamline the wall-mounting process.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Satin-polished finish is easy to clean and resists surface buildup
• Welded seamless corners minimize crevices and support hygienic maintenance
• Full-length sloping backsplash with flush pipe for efficient drainage
• Complete kit includes EU6014 urinal, LK392 flush pipe, and LK177 strainer
• Continuous-length wall hanger and integral stainless steel Z brackets included for mounting
• Sound-deadening material reduces operational noise in occupied spaces

Compatibility

Compatible with any water control flush valve or tank system. Kit includes EU6014 urinal, LK392 flush pipe, and LK177 strainer as matched components.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the supply line before beginning rough-in work. The continuous-length wall hanger and integral Z brackets must be anchored into structural blocking or studs capable of supporting the fixture weight and in-use loads. Confirm drain rough-in location and flush valve rough-in height against the manufacturer dimensions before mounting.
