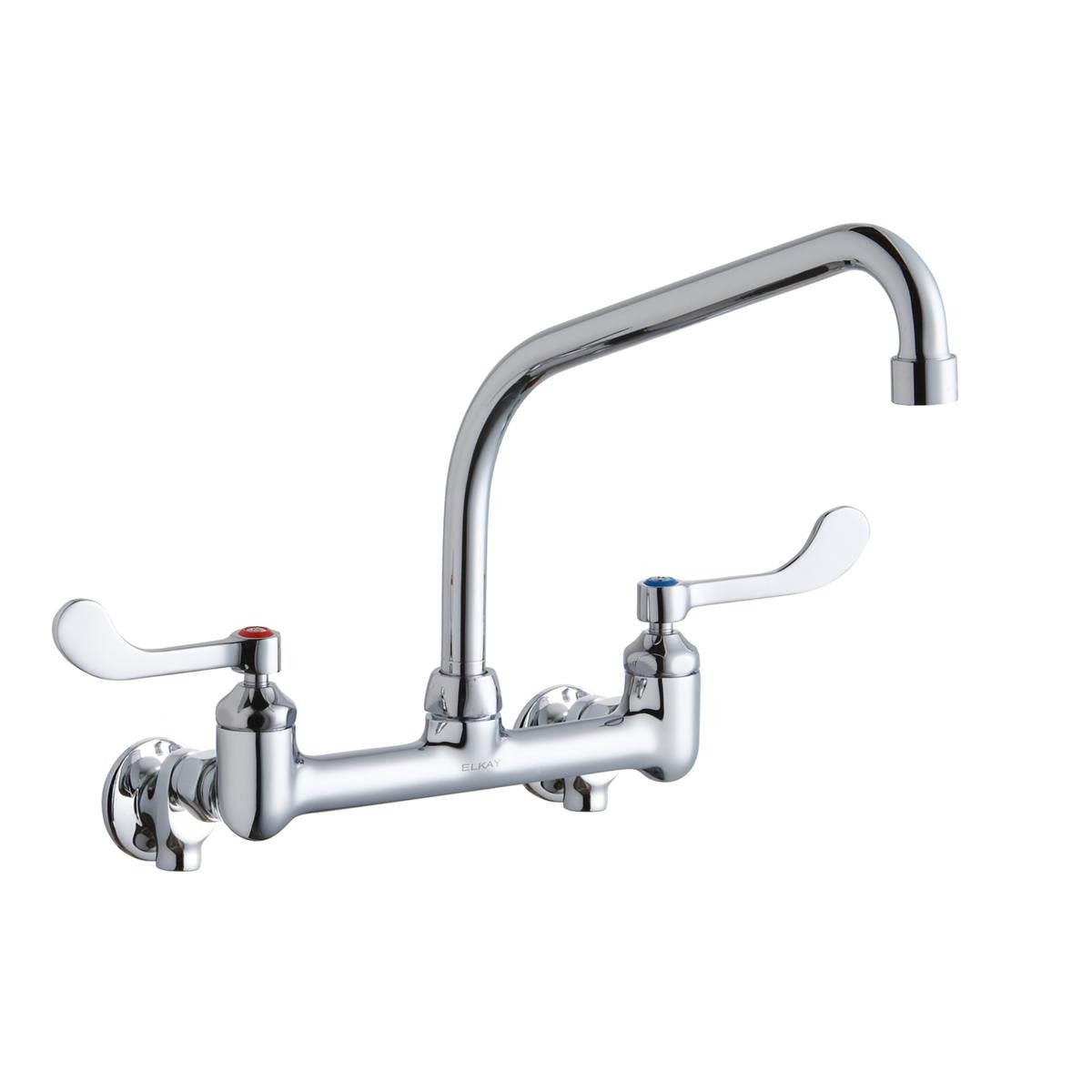

Elkay Commercial LK940HA10T4S Wall Mount Faucet

Product Description

The ELKAY COMMERCIAL LK940HA10T4S is a wall mount faucet built for commercial and foodservice environments where durability, hygiene, and compliance are non-negotiable. Constructed from solid brass, it features an 8-inch centerset configuration with a 10-inch high arc spout that provides clearance for large pots and pans. The 4-inch wristblade handles allow hands-free-style operation, making them well suited for food preparation and handwashing stations. A quarter-turn ceramic disc valve delivers reliable shutoff and smooth daily operation. The included vandal-resistant aerator flows at 1.5 GPM, and two additional aerator inserts at 2.2 GPM and 0.5 GPM are included for flow-rate flexibility across different application needs.

This faucet is designed for commercial kitchens, food service operations, educational facilities, and institutional handwashing areas. The wall mount configuration keeps the deck clear and simplifies cleaning in high-traffic environments. Installation requires two faucet holes. The adjustable 1/2-inch inlets include integral stops for in-line service shutoff without requiring additional valves. A spout swing restriction pin allows the faucet to be locked in a fixed position where required by the layout. Licensed plumbers working under IPC or local commercial plumbing codes typically handle installation in these environments.

Key Features

• Solid brass construction for long-term durability in high-demand commercial use
• 10-inch high arc spout provides clearance for large foodservice vessels
• 4-inch wristblade handles enable hygienic, ergonomic operation
• Quarter-turn ceramic disc valve for reliable, low-maintenance performance
• Vandal-resistant aerator at 1.5 GPM with 2.2 GPM and 0.5 GPM inserts included
• Integral stops on 1/2-inch inlets allow convenient in-line maintenance shutoff
• ADA compliant and certified to NSF/ANSI 61 and NSF/ANSI 372 lead-free standards

Compatibility

Designed as an OEM-style wall mount faucet replacement or new installation for commercial and foodservice plumbing systems requiring an 8-inch centerset, two-hole wall mount configuration with 1/2-inch inlet connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local codes and the International Plumbing Code. Shut off the water supply at the source before beginning installation or servicing the integral inlet stops. The adjustable 1/2-inch inlets allow for minor positioning adjustments during rough-in. Do not overtighten brass fittings or force the spout swing restriction pin, as solid brass components can be damaged by excessive torque.
