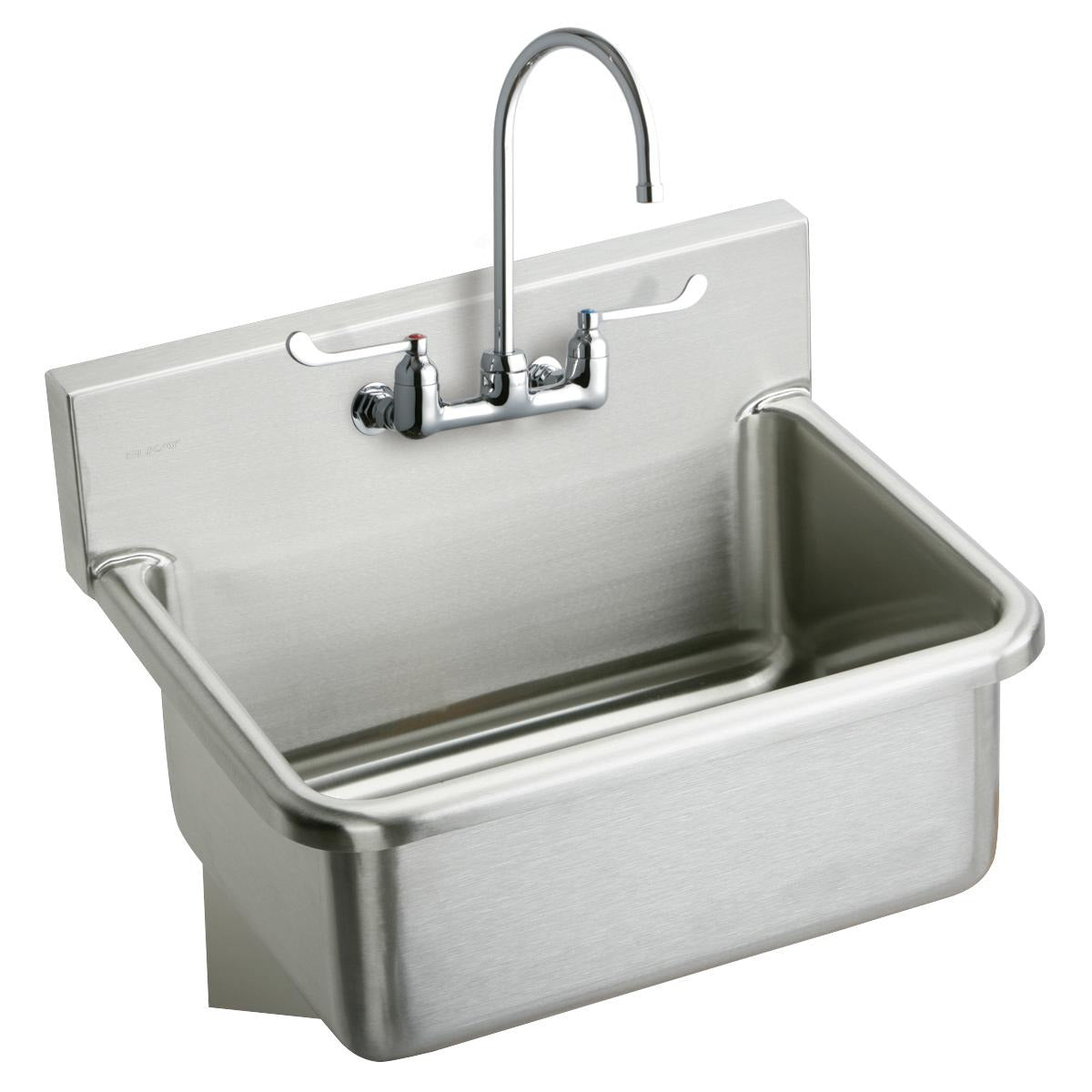

Elkay Commercial EWS3120W6C Wall Hung Hand Wash Sink Kit

Product Description

The ELKAY COMMERCIAL EWS3120W6C is a wall-hung hand wash sink kit built for commercial and institutional environments. Constructed from 14-gauge Type 304 stainless steel with a satin finish, it delivers the corrosion resistance and durability required in high-traffic facilities. The kit includes the EWS3120 single-bowl sink and the LK940GN05T6H faucet, along with essential installation hardware. The sink body measures 31 inches by 19.5 inches by 10.5 inches overall, with a bowl sized at 28 inches by 16 inches and a depth of 10.5 inches. A 3.5-inch center drain provides efficient water flow. This unit is installed by licensed plumbers in commercial construction and renovation projects.

The EWS3120W6C is intended for use in public and commercial handwashing applications including classrooms, healthcare facilities, office buildings, and recreational spaces. The kit ships as a complete assembly, pairing the sink with a factory-matched faucet to reduce sourcing time on the jobsite. Two pre-configured faucet holes are already positioned in the deck. The wall-hung mounting configuration keeps the floor clear and supports accessibility requirements. This sink meets ADA compliance standards for accessible handwashing installations in public facilities.

Key Features

• 14-gauge Type 304 stainless steel construction for commercial-grade durability and corrosion resistance
• Satin finish with 1.75-inch radius coved corners and 1.5-inch rolled rims for cleanability and edge protection
• Sound-deadening material applied to the underside reduces noise and vibration during use
• 28 x 16 x 10.5-inch bowl with a 3.5-inch center drain for efficient drainage
• Two pre-configured faucet holes for simplified installation
• Kit includes EWS3120 sink and LK940GN05T6H faucet with installation hardware
• ADA compliant and lead-free construction with NSF certification

Compatibility

This kit pairs the EWS3120 sink with the LK940GN05T6H faucet. It is designed for wall-hung installation in commercial plumbing systems requiring a single-bowl hand wash sink with a deck-mounted faucet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and confirm adequate wall blocking or structural support before mounting, as a wall-hung sink transfers its full load to the wall framing or carrier system. Verify drain rough-in location and supply line placement before setting the sink. Do not overtighten the drain fitting or faucet hardware connections, as this can damage the stainless steel deck.
