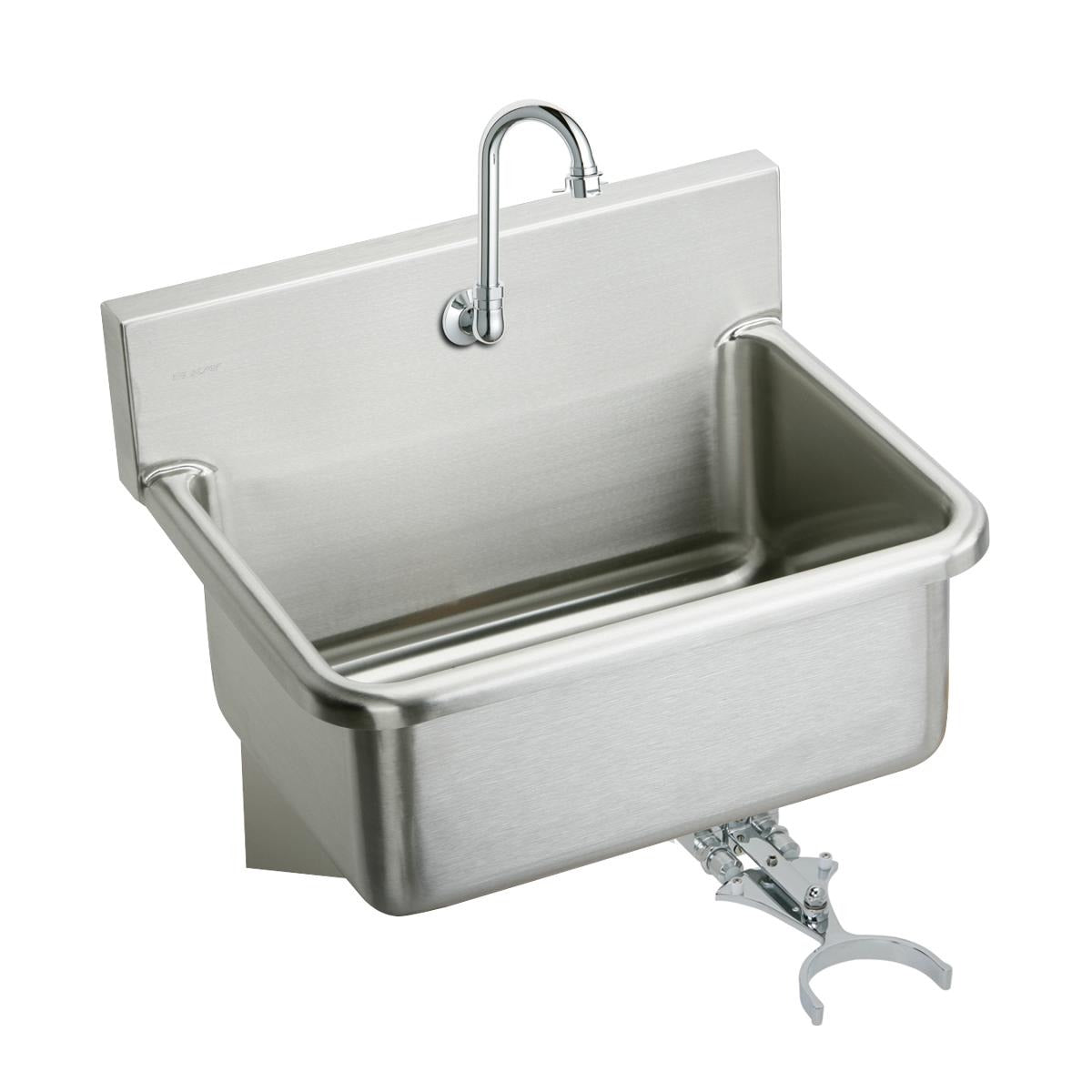

Elkay Commercial EWS3120KC Wall-hung Hand Wash Sink Kit

Product Description

The ELKAY COMMERCIAL EWS3120KC is a wall-hung single bowl hand wash sink kit built for commercial and institutional environments where hygiene and durability are non-negotiable. Constructed from 14-gauge Type 304 stainless steel, the sink measures 31 inches by 19.5 inches by 10.5 inches overall, with a bowl sized at 28 inches long, 16 inches wide, and 10.5 inches deep. The kit ships complete with the EWS3120 sink body, the LK397C knee control valve, and the LK395A spout, enabling hands-free handwashing out of the box. Sound-deadening material is applied to reduce noise and vibration during use. The unit meets ADA depth standards, making it appropriate for accessible installations.

This sink kit is suited for high-traffic commercial and institutional settings including healthcare facilities, classrooms, public restrooms, and recreational areas. The hands-free knee control operation is particularly well-suited for environments where cross-contamination risk must be minimized, such as clinical or food-service adjacent spaces. A full-length 6-inch-high backsplash protects adjacent wall surfaces from splash. Coved corners at 1.75-inch radius and 1.5-inch rolled rims eliminate sharp edges, simplifying cleaning and reducing injury risk for users and maintenance staff.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance and long service life
• Includes LK397C knee control valve and LK395A spout for complete hands-free operation
• Bowl dimensions: 28 inches long, 16 inches wide, 10.5 inches deep with centered 3.5-inch drain opening
• 6-inch-high full-length backsplash protects walls from splash in wet environments
• Sound-deadening material reduces operational noise and vibration
• ADA depth compliant with 1.75-inch radius coved corners and 1.5-inch rolled rims for safe, easy cleaning

Compatibility

Kit includes the EWS3120 sink, LK397C knee control, and LK395A spout. Single faucet hole configuration. Designed as a wall-hung OEM-complete kit for commercial hand wash sink applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before connecting supply fittings to the knee control valve. Wall blocking or a carrier system rated for the sink weight must be in place prior to mounting; verify wall structure is adequate to support the loaded sink. Confirm drain rough-in location and trap configuration before final mounting to avoid rework.
