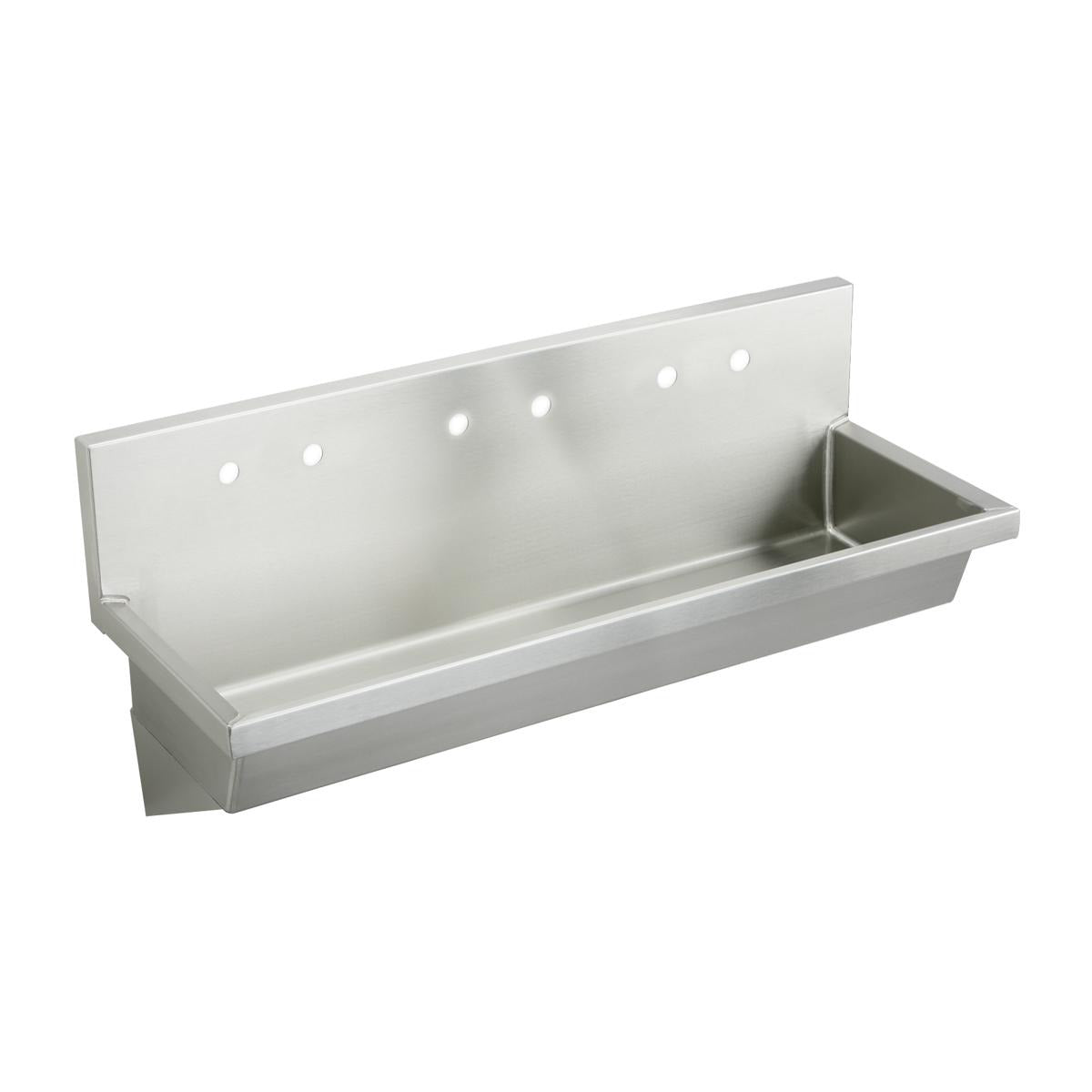

Elkay Commercial EWMA72206 Wall-hung Hand Wash Sink

Product Description

The ELKAY COMMERCIAL EWMA72206 is a wall-hung, multiple-station hand wash sink built for high-traffic commercial and institutional environments. Constructed from 14-gauge Type 304 stainless steel, the unit measures 72 inches wide by 20 inches deep by 8 inches high overall, with a single bowl sized at 69 inches long by 16.5 inches wide by 8 inches deep. A center drain placement with a 3.5-inch drain opening promotes fast water evacuation. The full-length 10-inch high backsplash and 1/4-inch coved interior corners minimize standing water and simplify routine sanitation. Licensed plumbers and commercial contractors are the primary installers of this fixture.

This sink is designed for demanding, multi-user wash stations in schools, healthcare facilities, office buildings, and public spaces where sustained sanitation throughput is required. The ADA depth-compliant design supports accessible installation for facilities subject to accessibility code requirements. Six faucet holes spanning the deck allow flexible faucet or soap dispenser configurations to suit the needs of the specific installation environment. The 2-inch flat apron and inward-sloping top channel rims direct water back into the bowl for improved drainage and cleanliness during heavy use.

Key Features

• 14-gauge Type 304 stainless steel construction for corrosion resistance and long service life in wet commercial environments
• 69 inch by 16.5 inch by 8 inch single bowl provides ample room for simultaneous multi-user hand washing
• Full-length 10-inch high backsplash reduces splash contamination on adjacent wall surfaces
• 1/4-inch coved interior corners eliminate hard-to-clean seams and support sanitation compliance
• Center drain with 3.5-inch opening paired with inward-sloping channel rims promotes rapid drainage
• Six faucet holes allow versatile deck-mount faucet and accessory configurations
• Includes wall hangers and stainless steel support brackets for installation

Compatibility

Designed as an OEM-style commercial wall-hung sink intended for multi-station hand wash applications in institutional and commercial plumbing systems. Supports ADA depth requirements. Compatible with standard 3.5-inch drain assemblies and deck-mount faucets fitting the six pre-drilled faucet holes.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify wall structural capacity before mounting, as the unit weighs 95 pounds and requires secure attachment to wall framing or blocking using the included wall hangers and stainless steel support brackets. Drain and faucet trim are typically field-supplied and should be selected to match the pre-drilled hole sizes. Confirm ADA mounting height requirements with the project specifications before setting final bracket position.
