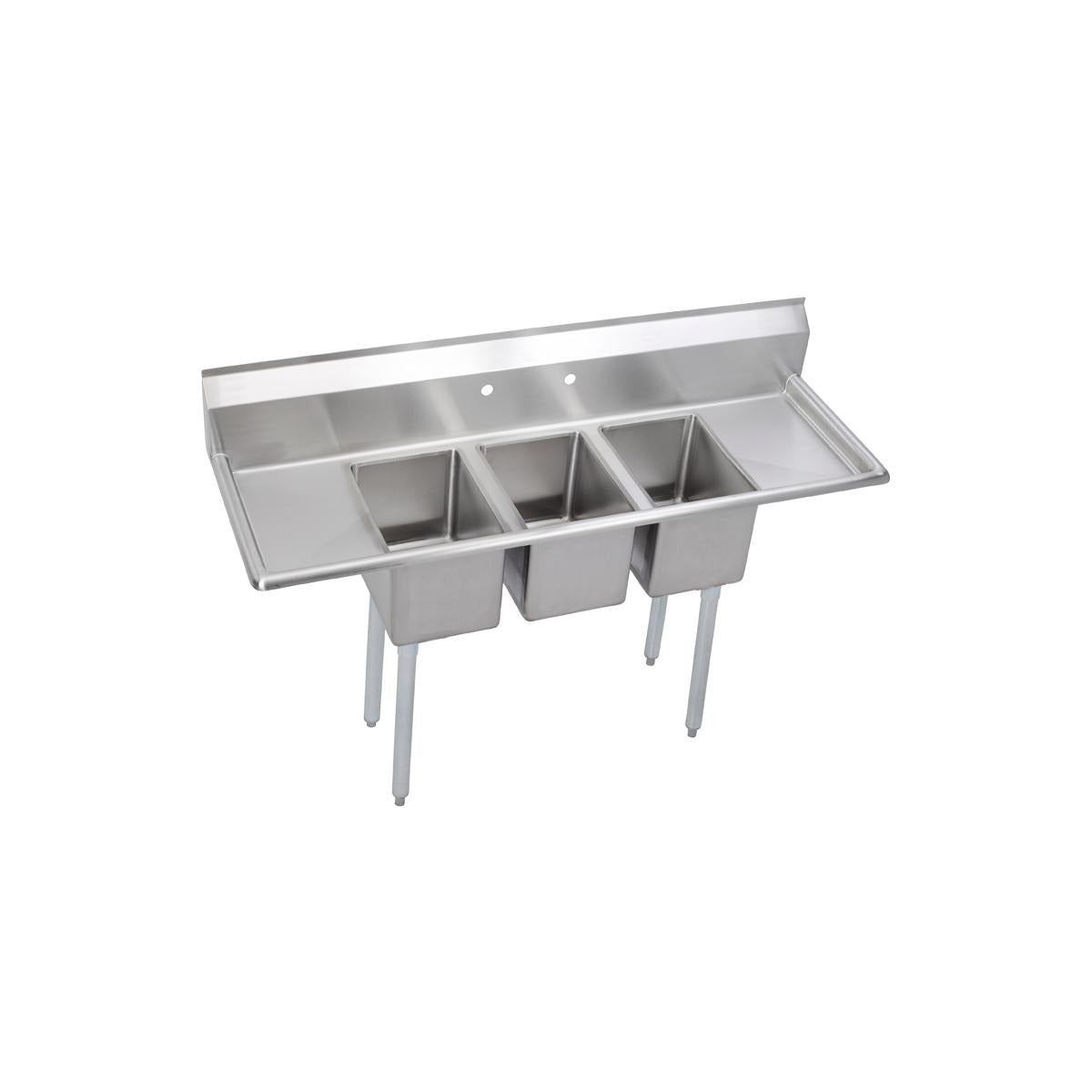

Elkay 3C12X16-2-12X Three Compartment Sink Stainless Steel

Product Description

The ELKAY 3C12X16-2-12X is a three-compartment stainless steel sink built for high-demand commercial washing, rinsing, and sanitizing operations. Constructed from 16-gauge type 304 series stainless steel, it measures 64 inches wide by 21-13/16 inches deep by 43-3/4 inches tall. The unit ships with integrated 12-inch left and right drainboards, a 10-inch backsplash with tile ledge, stainless steel legs, and adjustable bullet feet for leveling. Licensed plumbers and commercial kitchen installers are the primary trades for this fixture. Bowl dimensions are 12 inches by 16 inches, with the first bowl at 10 inches deep and the second and third bowls at 12 inches deep.

This sink is suited for commercial kitchens, restaurants, medical facilities, cafeterias, and recreational or institutional utility areas where a dedicated wash, rinse, and sanitize station is required. The three-bay layout supports standard NSF and health department wash-rinse-sanitize workflow. The 10-inch backsplash with tile ledge simplifies integration into existing wall finishes. Two faucet holes are pre-positioned for a single splash-mount faucet, sold separately. The adjustable bullet feet accommodate uneven floors common in older commercial kitchen installations.

Key Features

• 16-gauge type 304 series stainless steel construction for corrosion resistance and durability in wet commercial environments
• Three bowls with dimensions of 12 inches by 16 inches each - first bowl 10 inches deep, second and third bowls 12 inches deep
• Integrated 12-inch left and right drainboards extend usable prep and drying space
• 3/4-inch coved corners on bowls facilitate cleaning and reduce debris accumulation
• 10-inch backsplash with tile ledge included for straightforward wall-mount installation
• Stainless steel legs with adjustable bullet feet for leveling on uneven surfaces
• ADA-compliant design suitable for commercial and institutional settings

Compatibility

Designed as an OEM-style replacement or new-installation three-compartment sink for commercial kitchen and institutional plumbing applications. Accepts a single splash-mount faucet (not included); two faucet holes are pre-drilled for standard commercial faucet configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable IPC requirements. Shut off the water supply and verify drain rough-in locations before positioning the sink. Faucet and drain assemblies are not included and must be sourced separately. Confirm floor load capacity before placing the fully loaded unit, as the sink weighs 134 pounds unloaded.
