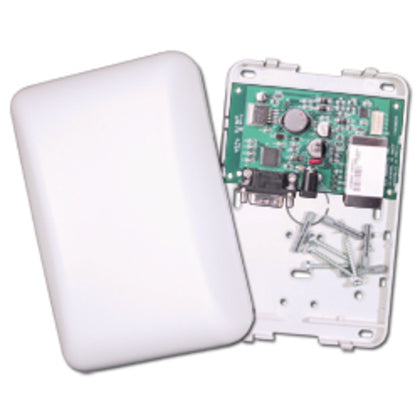

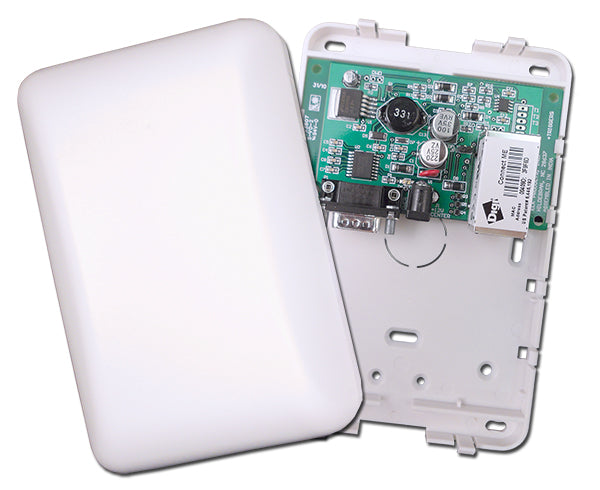

Elk M1XEP M1 Ethernet Interface

Product Description

The ELK M1XEP is an Ethernet appliance with a RS-232 serial port interface, designed to connect a control in the M1 Family to an Ethernet network. It features email event notification and FIPS compliant encryption algorithms. Powered by an ELK-P1216 12 Volts DC, 1.5 Amp plug-in power supply/adapter. A software setup utility is built into ElkRP for configuring the connection setup.

• Secure connection with password protection and SSL/TLS encryption
• Flash Memory for Firmware Updating
• Event notification via E-Mail (SMTP)

Product Highlights

Connects to an Ethernet network using TCP-IP protocol for programming, remote control, and monitoring.

Product Information

Standard Information

• Brand: ELK
• Manufacturer Part Number: ELK-M1XEP
• Country of Origin: US

Technical Specifications

• Operating Voltage: 12 Volts D.C. from Elk-P1216 Plug-in Power Supply
• Current Draw: approx. 300 mA
• Housing Dimensions: 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions: 2.25" x 3.95"
• Serial Ribbon Cable: ELK-W040A Serial Ribbon Cable included
• ADI Part Number: EK-M1XEP
• Brand Name: ELK Products
• Manufacturer: ELK Products, Inc
• Manufacturer Part Number: ELKM1XEP
• Product Line: M1
• Product Model: ELK-M1XEP
• Product Type: Device Server
• Media Type Supported: Twisted Pair
• Network (RJ-45): Yes
• Number of Network (RJ-45) Ports: 1
• Number of Serial Ports: 1
• Serial Port: Yes
• Network Technology: 10/100Base-TX
• Ethernet Technology: Fast Ethernet
• Depth: 2.1"
• Height: 4.3"
• Width: 6.4"
• Operating voltage: 12 VDC (ELK-P1216 plug-in power supply included)
• Current draw: appox. 300 mA
• Housing: 4.25" x 6.375" x 2.125"
• Circuit board dimension: 2.25" x 3.95"
• MPN: M1XEP
• Type: Ethernet Device Server
• Connectivity: RJ-45
• Dimensions (W x H x D): 4.3" x 6.4" x 2.1"
