ELK ELK-M1DBHR M1 Data Bus Hub For Retrofit

Product Description

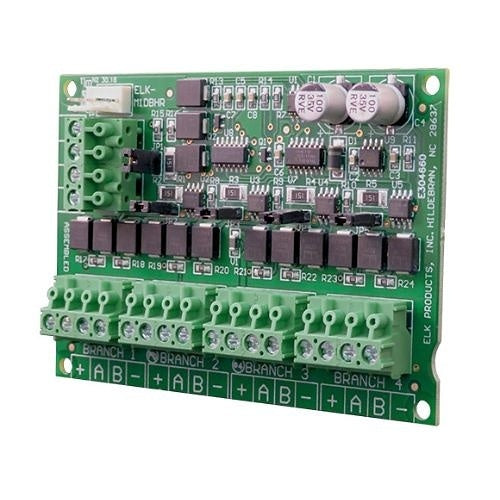

The ELK Products M1DBHR is an active RS-485 data bus hub, identified by the MPN ELK-M1DBHR. This hub is created for systems where M1Gold or M1EZ8 controls are being used in retrofitting older panels with multiple home run four-conductor keypad/data wires. It effectively splits the main RS-485 data bus into four manageable branches.

• Supports up to eight home runs using existing wiring.
• Each branch supports two parallel cables.
• End-of-line termination ensures proper function and supervision.

Product Highlights

This data bus hub is designed for both commercial and residential installations and connects easily to existing wiring setups. It preserves existing wiring infrastructure, streamlining retrofitting tasks.

Product Information

Standard Information

• Brand: ELK Products
• Manufacturer: ELK Products, Inc

Technical Specifications

• Depth: 2.8 inches
• Width: 4.9 inches
• Product Line: M1
• Product Type: Data Bus Hub
• Installation Type: Commercial, Residential
• Environmental Certification: ROHS
• Connectivity Technology: Wired
• Package Contents: M1 Data Bus Hub, Mounting Rails for ELK-SWB Boxes, Instructions
