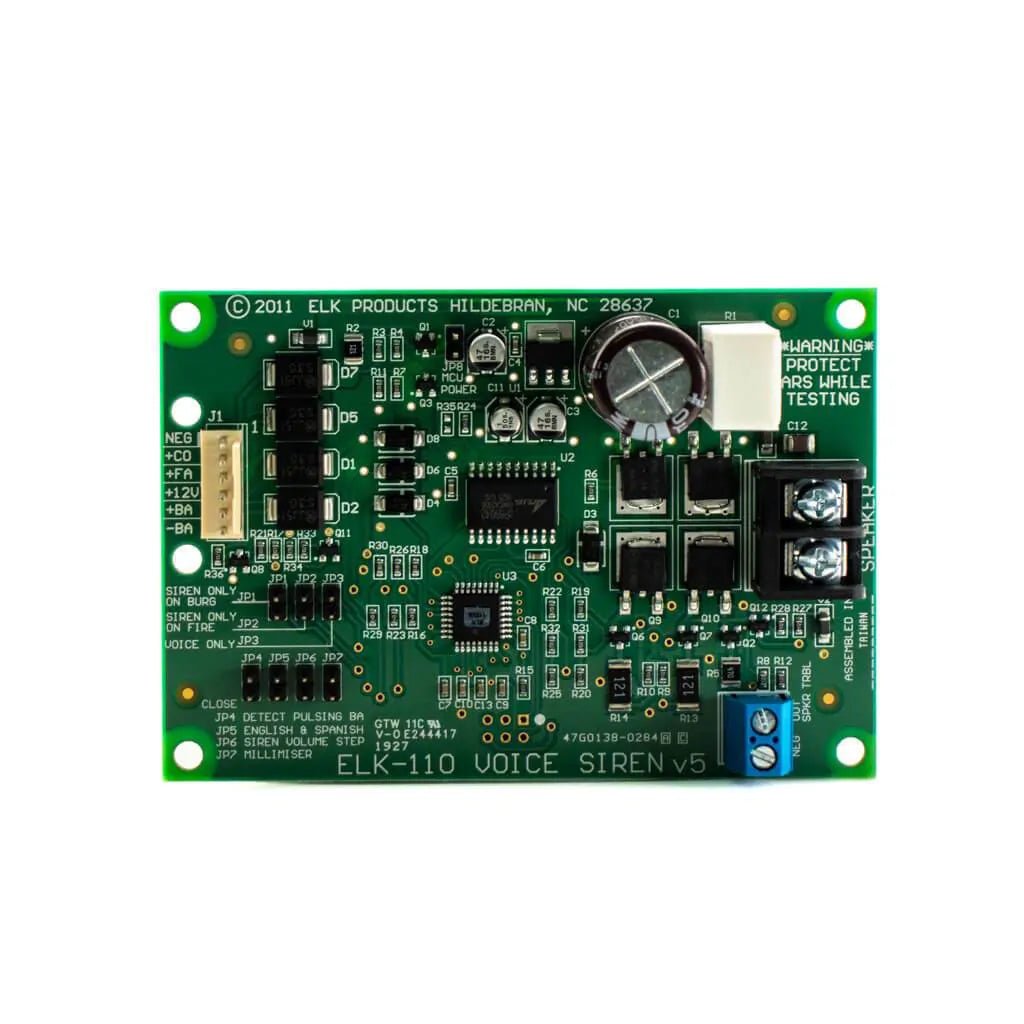

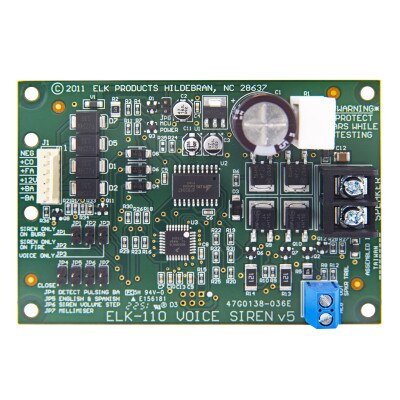

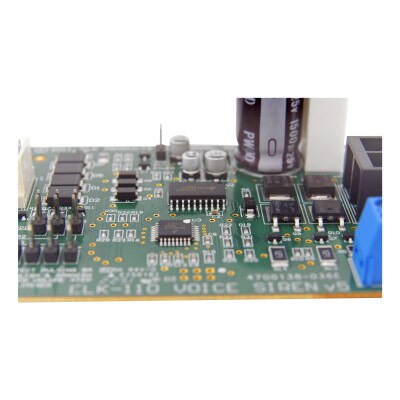

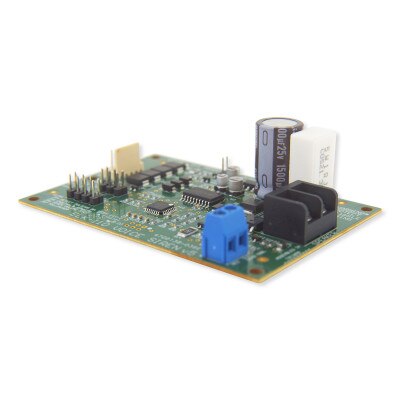

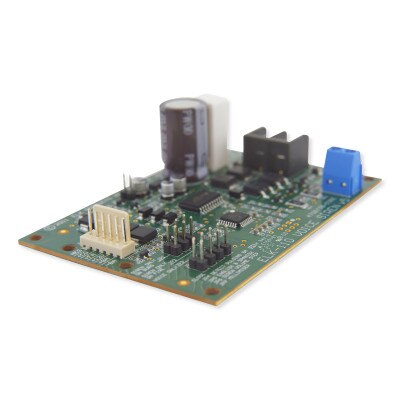

Elk Elk-110 Voice Siren Driver Module

Product Description

The ELK-110 Voice “Talking” Driver features high quality digitally pre-recorded voice messages and loud attention getting siren sounds in an economical, low current draw, compact package. It features three input channels for Burglar, Fire, and Carbon Monoxide. The voice messages and the siren alternately sound whenever one of the channels are activated.

• Installer Friendly - Compact & Easy to Mount
• Three Input Channels, Burglar, Fire, and Carbon Monoxide
• Bilingual Voice - English and or Spanish, Siren Only, Speech Only, or Combined

Product Highlights

Features pre-recorded voice announcements for burglary, fire, and carbon monoxide emergency situations. Alternates between spoken message and siren tone. Voice can speak in English or Spanish.

Product Information

Standard Information

• Brand: ELK
• Manufacturer Part Number: ELK-110
• Country of Origin: United States

Technical Specifications

• Operating Voltage: 10 to 14 Volts DC
• Current Draw: 1.25 Amps, (800 mA on MilliMiser™ setting), with one 8 Ohm speaker
• Sound Level: 122 db @ 1 meter, 14 vdc, with one 8 Ohm speaker
• Max. Speaker Load: 4 Ohms
• Size: 2.75" x 4.0" (70mm x 102mm)
• Brand Name: ELK Products
• Manufacturer: ELK Products, Inc
• Manufacturer Part Number: ELK-110
• Product Model: 110
• Product Name: 110 Siren Driver
• Product Type: Siren Driver Module
• Installation Type: Commercial, Residential
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Three Input Channels: Burglar, Fire, and Carbon Monoxide
• Speaker Trouble Supervision: True
• Temporal Coded Tones: ANSI standard Audible Emergency Evacuation Signaling
• Nom. Operating Voltage: 10-14 Volts D.C.
• Nom. Current Draw: 1.25 Amps (8 Ohm Spkr)
• Min. Low Current Trigger: 10.5VDC
• Freq. Temporal 3: 800Hz
• Temporal 4: 1000Hz
• MilliMiser Current Drain: 800 mA
• Maximum Speaker Loading: 4 Ohms
• MPN: ELK110
