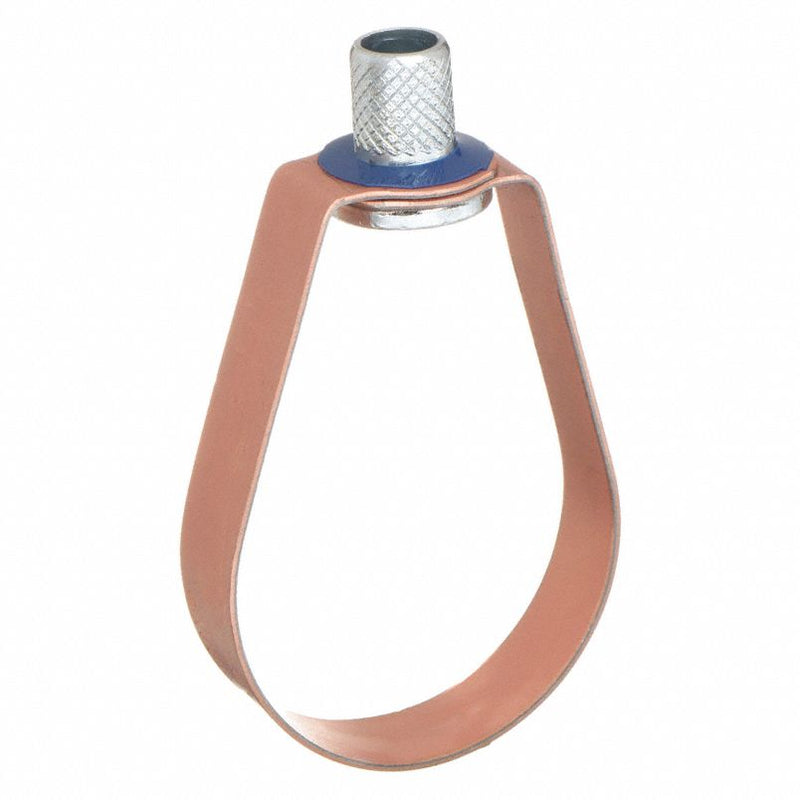

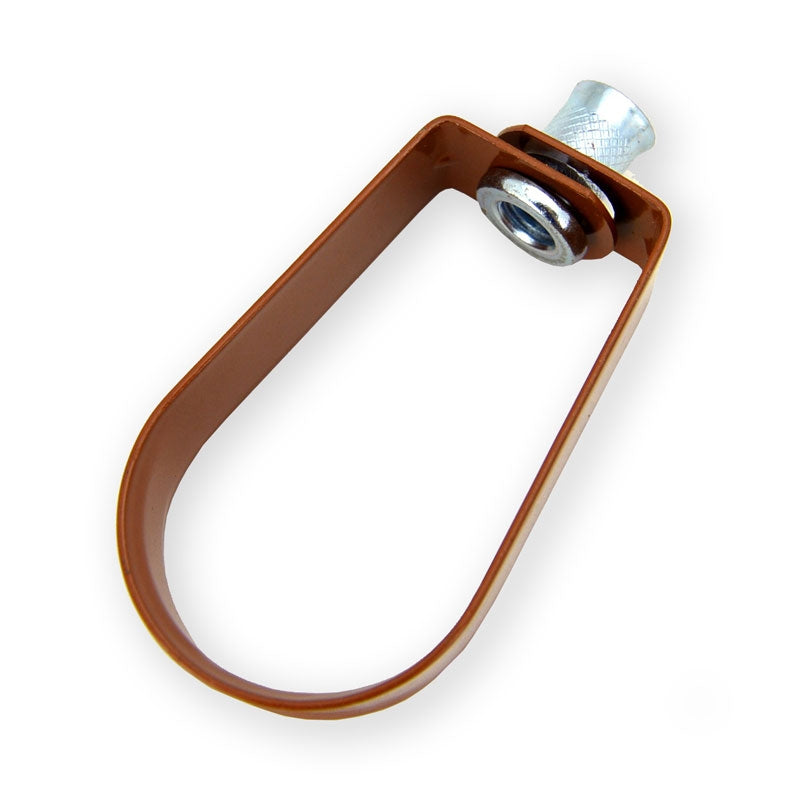

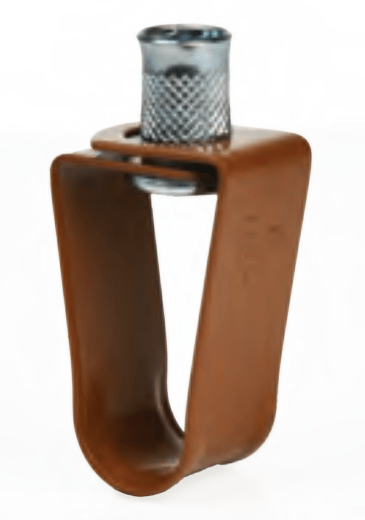

Elite Components 3100-0150PC Loop Hanger 1 1/2 inches

Product Description

The ELITE COMPONENTS 3100-0150PC loop hanger is recommended for the suspension of stationary insulated copper pipe lines. It allows vertical adjustment of pipe after installation and features a keyed insert nut to ensure that the loop hanger and insert nut stay together. The insert nut can be removed if required.

• Recommended for the suspension of stationary insulated copper pipe lines
• Allows vertical adjustment of pipe after installation
• Keyed insert nut to ensure that the loop hanger and insert nut stay together

Product Highlights

This copper-colored epoxy-finished loop hanger is ideal for supporting insulated copper pipes, offering adjustability and secure fastening.

Product Information

Standard Information

• Brand: ELITE COMPONENTS
• Manufacturer Part Number: 3100-0150PC

Technical Specifications

• Brand: ELITE COMPONENTS
• SKU: 3100-0150PC
• Features: Recommended for the suspension of stationary insulated copper pipe lines
• Finish: Copper-Colored Epoxy
• Size: 1/2″thru4″
• Box Qty: 100
• Max Load: 180 LBS
• Complies with: Federal Specification A-A-1192A and MSS SP-69
• Size in Inches: 1 1/2 inch
