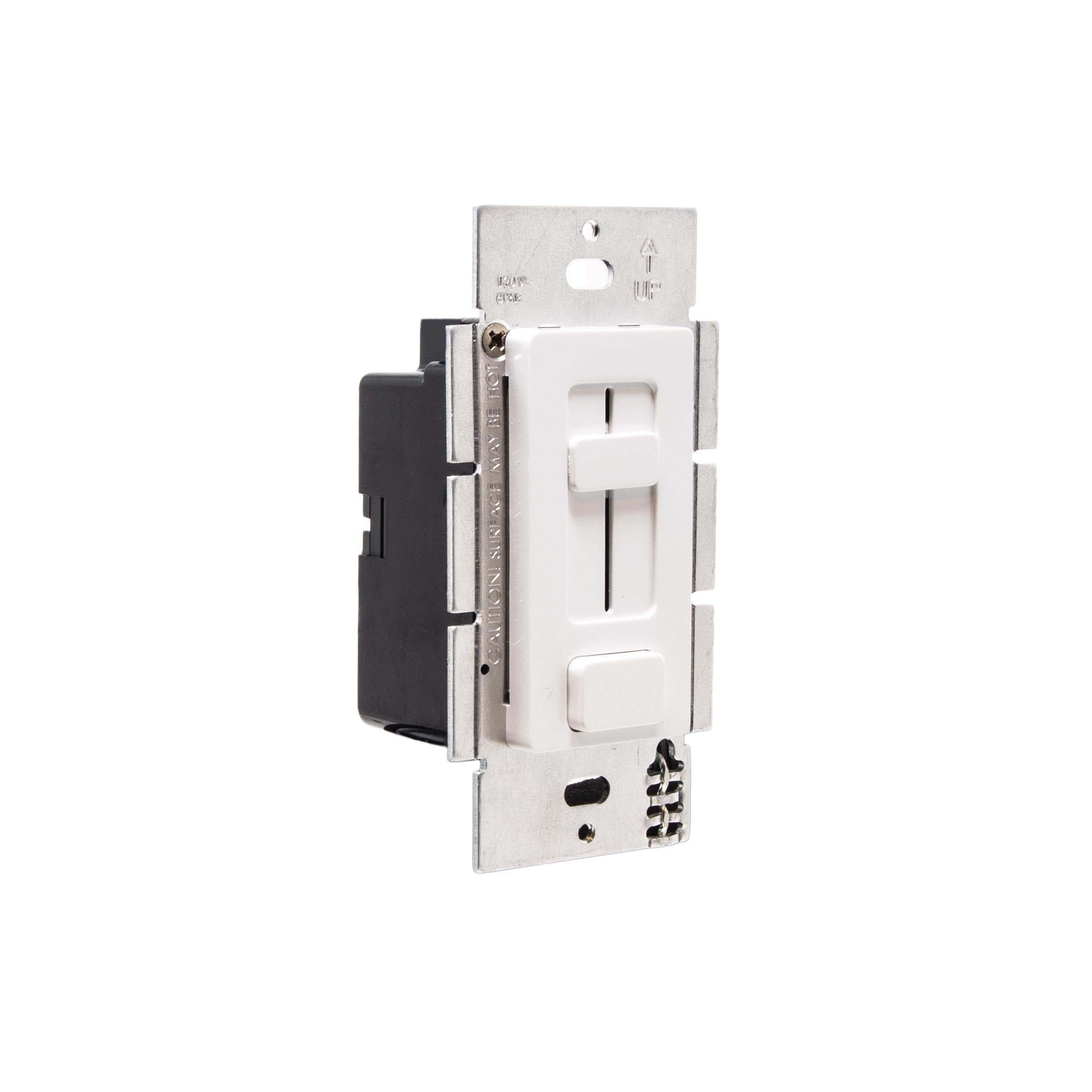

Elemental Led DI-24V-SE-100W Switchex Driver and Dimmer Switch Combo 100W (Each)

Brand: ELEMENTAL LED
SKU: DI-24V-SE-100W
Availability: In Stock

Ships same day if ordered by 12 pm
$329.49
$329.49
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Elemental Led DI-24V-SE-100W is a Switchex integrated driver and dimmer switch that provides 24 V DC output up to 100 W. The unit accepts 120 VAC input and delivers up to 4.2 A output with a dimming range from 100% to 5%, combining LED driver functionality with wall-mounted dimming control for low-voltage LED fixtures and tape.

  • Integrated Switchex driver and preset dimmer with on/off switch; wall-mounted, hardwired installation.
  • Electrical: 120 VAC input; 24 V DC output; 100 W power; 4.2 A output; dimming range 100%–5%; 50/60 Hz.
  • Installation features: adjustable output voltage dial, voltage barrier partition for high/low separation, includes three interchangeable face plates; protections for short circuit, thermal runaway, and over voltage.

Product Highlights

Combined 120 VAC to 24 V DC driver and dimmer, 100 W output, 4.2 A, 100%–5% dimming, three face plate colors included.

Product Information

Standard Information

  • Brand: ELEMENTAL LED
  • Manufacturer Part Number: DI-24V-SE-100W
Technical Specifications
Brand
Elemental Led
Manufacturer Part Number
DI-24V-SE-100W
Product Type
Switchex integrated LED driver and dimmer switch
Input Voltage
120 VAC
Output Voltage
24 V DC
Output Current
4.2 A
Power
100 W
Dimming Range
100% - 5%
Frequency
50/60 Hz
Poles
1 Pole
Mounting Type
Wall
Hardwired Connection
Yes
Face Plate Colors Included
3
Protections
Short circuit, thermal runaway, over voltage
Location Rating
Indoor/Damp
Operating Temperature
32 to 104 F
Relative Humidity
8 to 90% (non-condensing)
Dimensions
Height: 4.1 in; Width: 2.1 in; Depth: 1.4 in
UPC
848333004964
Quantity
Each
Features Summary
Preset dimmer with on/off switch; adjustable output voltage dial; voltage barrier partition; no derating when ganging units; power-failure memory
