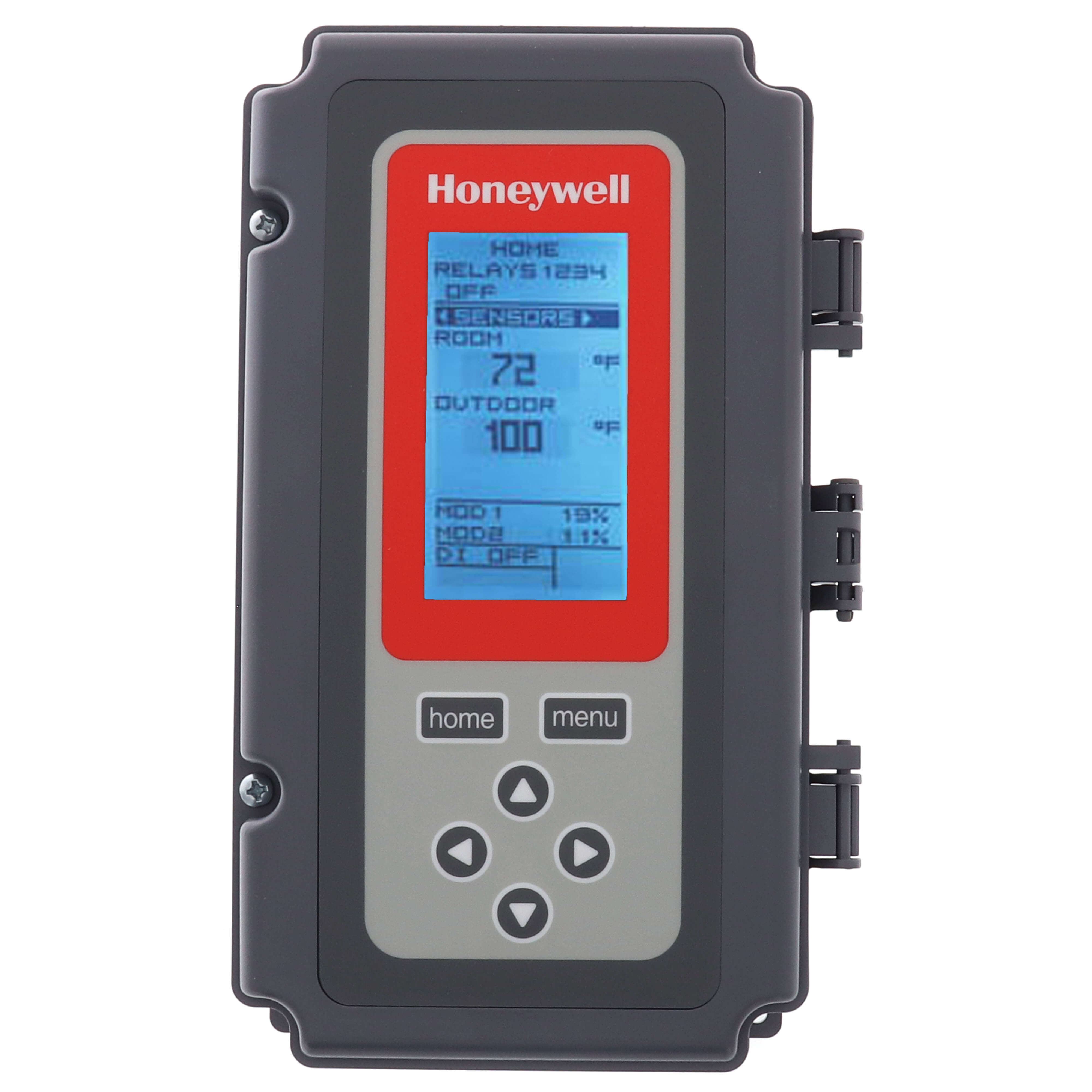

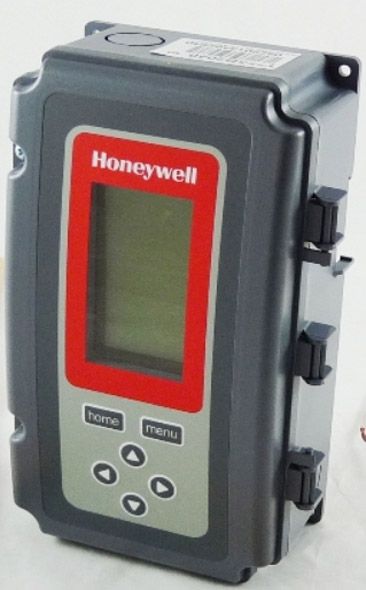

Honeywell T775R2043 Electronic Temperature Controller 210 Volts 1 Pack

Product Description

The Honeywell T775R2043 electronic temperature controller provides precise temperature control for industrial applications. Designed by Honeywell, this controller includes two temperature inputs and two analog outputs. It comes with two sensors and a reset option for flexible usage.

• Two temperature inputs for dual-zone control.
• Two analog outputs for interfacing with external devices.
• Includes two sensors for accurate temperature measurement.

Product Highlights

This Honeywell T775R2043 controller is ideal for temperature maintenance in industrial processes, facilities, and HVAC systems. It features a reset option, a NEMA 1 enclosure, and is capable of remote sensing.

Product Information

Standard Information

• Brand: Honeywell
• Model: T775R
• MPN: T775R2043
• Weight: 2.70 pounds
• Dimensions: 8.15625 inches high x 4.40625 inches wide x 2.9375 inches deep

Technical Specifications

• Voltage: 210 Volts
• Control Type: Button Control
• Control Method: Remote
• Backlight: Yes
• Relay Outputs: 2 SPDT
• Operating Temperature Range: -40°F to 140°F
• Accuracy: ±1°F at 77°F
• Maximum Distance to Sensor: Up to 1000 feet
• Sensor Element: 1097 ohms PTC at 77°F (25°C)
• Sensor Inputs: 2
• Output Reset: Yes
• Replaces: T775J1019, T775J1027, T775J1035
