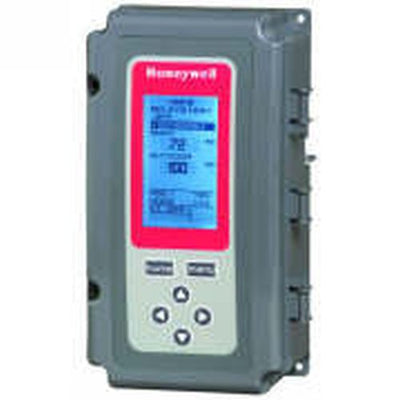

Honeywell T775R2001 Electronic Temperature Controller 2 Temperature Inputs 4 SPDT Relays Floating Output

Product Description

The Honeywell T775R2001 is a sophisticated electronic temperature controller designed to manage remote sensing of temperatures with exceptional accuracy. This model features four SPDT relay outputs and dual sensor inputs, providing a versatile solution for comprehensive industrial and commercial applications.

• Includes four SPDT relays for robust control.
• Dual temperature inputs allow for tailored temperature management.
• Supports floating outputs, enhancing integration ease.

Product Highlights

The T775R2001 model stands out for its reset option and floating design, simplifying integration into various systems. Its compact form factor ensures it fits even in constrained spaces, while offering precise control over your temperature regulation needs.

Product Information

Standard Information

• Application: Offers both on/off or analog control for systems requiring electronic precision.
• Type: Features a reset option and a NEMA 1 enclosure for safety and reliability.
• Voltage: Operates on either 24 Vac or 120/240 Vac, adding flexibility for various setups.

Technical Specifications

• Weight: 4.0 lbs
• Relay Contact Ratings (120 Vac): 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
• Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
• Dimensions: 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
• Setpoint Temperature Range (F): -40 F to 248 F
• Accuracy (F): ±1 F at 77 F
• Differential Temperature (F): 1 F to 150 F
