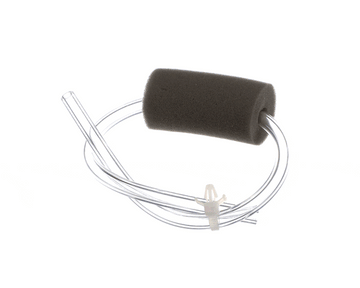

Electrolux 5304500517 Pressure Switch Hose Assembly

Product Description

The ELECTROLUX 5304500517 is a pressure switch hose assembly designed for use in residential HVAC equipment. This component connects the pressure switch to the appropriate port on the draft inducer or combustion air blower, allowing the switch to sense differential pressure and confirm proper venting before allowing ignition to proceed. The hose maintains an airtight seal under normal operating conditions and is a direct OEM replacement part. HVAC technicians install this part during routine maintenance or when diagnosing pressure switch faults, inducer issues, or no-heat calls on gas furnaces.

This hose assembly is suited for residential gas furnace applications where the pressure switch circuit has developed a leak or the hose has cracked, collapsed, or become disconnected. A failed or degraded hose can cause nuisance pressure switch lockouts, preventing the furnace from completing its ignition sequence. Replacing this component restores proper pneumatic communication between the inducer assembly and the pressure switch.

Key Features

• OEM replacement pressure switch hose assembly for ELECTROLUX gas furnace applications
• Maintains airtight connection between draft inducer port and pressure switch
• Designed to restore proper pressure switch sensing and prevent nuisance lockouts
• Direct fit replacement minimizes labor time during diagnosis and repair

Compatibility

Designed as an OEM-style replacement pressure switch hose assembly for ELECTROLUX residential gas furnace systems. Refer to the equipment service manual or OEM parts lookup using model and serial number to confirm fitment before installation.

Installation Notes

A licensed HVAC technician should perform this repair. Shut off power to the furnace at the disconnect switch and set the thermostat to the off position before beginning work. Inspect both the inducer port and pressure switch inlet for debris or moisture before attaching the new hose. Verify all hose connections are fully seated and free of kinks after installation before restoring power and cycling the system.

Technical Specifications

• Component Type: Pressure Switch Hose Assembly

Standard Information

• Brand: ELECTROLUX
• Manufacturer Part Number: 5304500517
