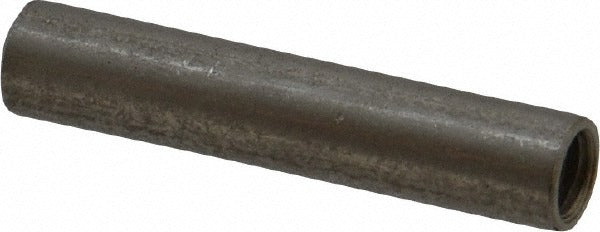

Electro Hardware P577M07F16-1032 Round Female Standoff

Product Description

The ELECTRO HARDWARE P577M07F16-1032 is a round female standoff designed to create fixed spacing between circuit boards, panels, and enclosure surfaces. It features a fully threaded 10-32 internal thread with a 1 inch thread depth, an overall length of 1.25 inches, and an outside diameter of 0.25 inches. Manufactured from 18-8 and Grade 303 stainless steel with a bright finish, this standoff meets the QQ-S-763 federal specification for corrosion-resistant steel fasteners. Electricians, panel builders, and equipment assemblers use this type of standoff in control enclosures, electrical panels, and electronic assemblies where consistent board spacing and secure thread engagement are required.

This standoff is suited for use in light-duty electronic and electrical assembly applications, including PCB mounting, panel spacer installations, and instrument enclosure builds. Its stainless steel construction makes it appropriate for environments where corrosion resistance is a priority, such as outdoor enclosures, HVAC control panels, and light industrial control boxes. The 10-32 thread size is a common standard in electronic and instrument-grade assembly work.

Key Features

• 10-32 fully threaded female thread with 1 inch thread depth for secure fastener engagement
• Overall length of 1.25 inches with a length tolerance of -0.005 to 0.005 inches
• Outside diameter of 0.25 inches in a round body profile
• 18-8 and Grade 303 stainless steel construction for corrosion resistance
• Bright finish meeting QQ-S-763 federal fastener standard
• Inch measurement system; sold individually

Compatibility

Designed as a standard 10-32 female round standoff for use in electronic panel assemblies, PCB mounting applications, and control enclosures requiring a 0.25 inch diameter, 1.25 inch overall length spacer.

Installation Notes

Installation is typically performed by electricians, panel builders, or electronics assemblers using standard hand tools. Ensure the mating fastener thread class matches the 10-32 specification before assembly. De-energize and lock out any panel or enclosure before servicing internal components. Do not overtighten, as stainless steel fasteners are susceptible to galling if driven without proper lubrication or technique.
