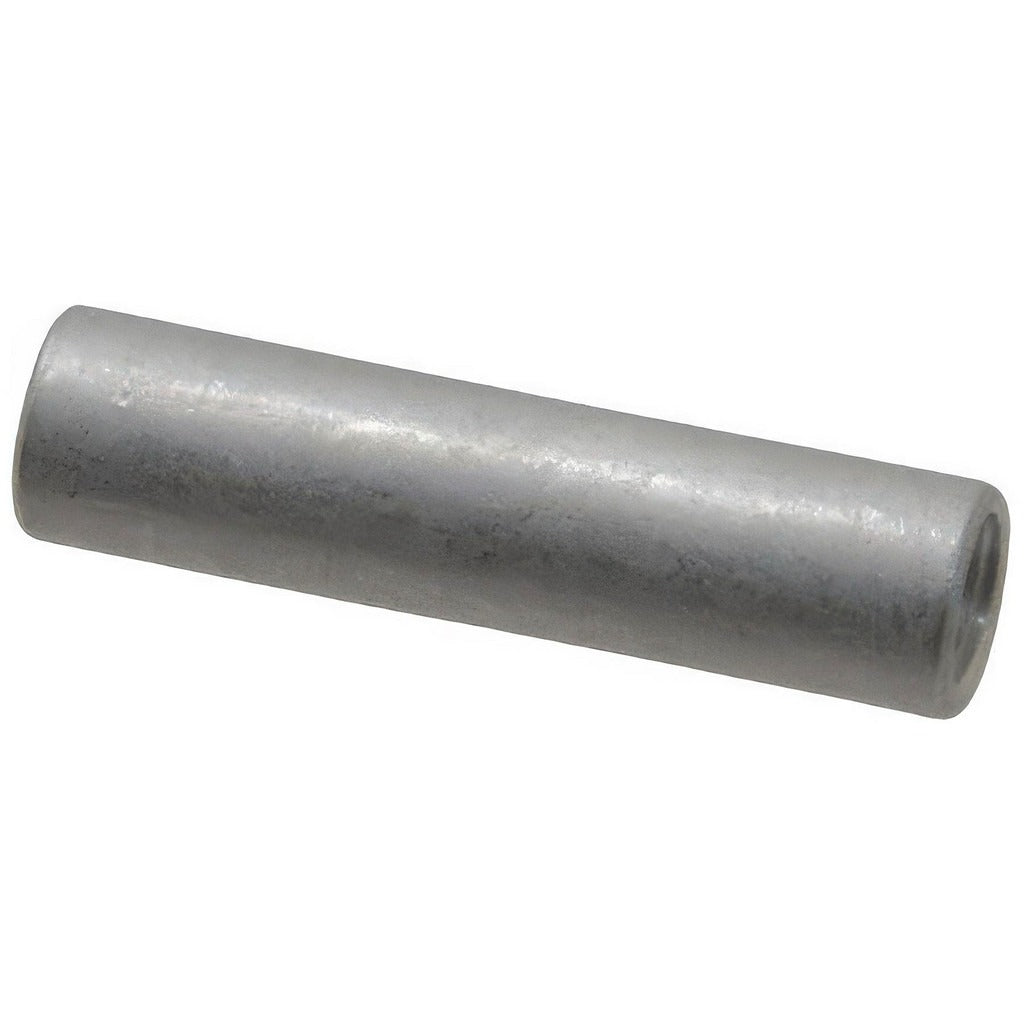

Electro Hardware P561M04F16-1032 Female Standoff 10-32

Product Description

The ELECTRO HARDWARE P561M04F16-1032 is a round female standoff designed to create fixed spacing between PCBs, panels, and structural components in electronic and mechanical assemblies. Machined from 6061-T3 aluminum with a bright anodized finish, this standoff features a 10-32 fully threaded interior bore running the full 1 inch body length. The outside diameter measures 0.25 inches, keeping the footprint compact for dense layouts. It meets the QQ-A-225A Comp 2 fastener standard, making it suitable for applications where material traceability and dimensional consistency are required. Licensed electricians, electronics assemblers, and mechanical technicians use this hardware during panel builds, enclosure mounting, and circuit board stacking operations.

This standoff suits residential and commercial enclosure builds, electronic control panel assemblies, and industrial equipment racking where aluminum hardware is preferred for its corrosion resistance and light weight. The 10-32 thread size is widely used in electronics and instrumentation enclosures. With a length tolerance of -0.005 to 0.005 inches, consistent stack height is maintained across multi-board assemblies. This part is sold individually but must be ordered in multiples of 5 to meet the minimum order quantity requirement.

Key Features

• Fully threaded 10-32 female bore through the entire 1 inch body length
• 0.25 inch outside diameter for compact, high-density board layouts
• 6061-T3 aluminum construction for corrosion resistance and reduced weight
• Bright anodized finish provides a clean appearance and surface protection
• Meets QQ-A-225A Comp 2 fastener standard for dimensional and material traceability
• Tight length tolerance of -0.005 to 0.005 inches for consistent standoff spacing

Compatibility

Designed as an OEM-style or aftermarket replacement standoff for assemblies requiring a round, fully threaded female standoff with 10-32 thread and 1 inch overall length in aluminum construction.

Installation Notes

Installation is performed by electronics assemblers, panel builders, or mechanical technicians using standard 1/4 inch hex or socket drivers. Always de-energize and lock out equipment before servicing boards or enclosures that contain live circuits. Avoid over-torquing into aluminum threads, as the material is softer than steel and susceptible to thread stripping. Confirm mating fastener thread class before assembly to ensure proper fit and clamping force.
