Electro Hardware P545M12F21-1032 Female Hex Standoff

Product Description

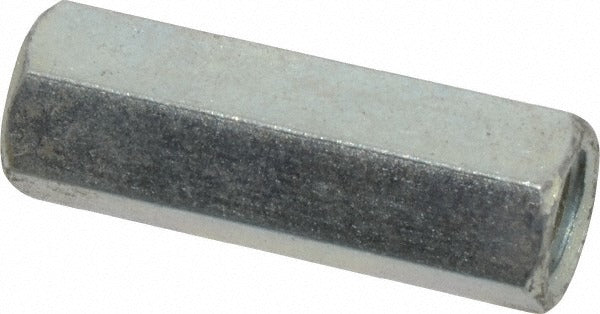

The ELECTRO HARDWARE P545M12F21-1032 is a female hex circuit board standoff designed to create fixed spacing between PCBs and mounting surfaces in electronic assemblies. Machined from Grade 2 steel with a zinc-plated clear chromate finish, this standoff provides corrosion resistance consistent with ASTM B633 Type 1 and QQ-S-633 standards. The hex body shape allows for positive wrench engagement during installation and removal. The female-threaded design accepts a mating screw through one or both ends, making it suitable for stacked-board configurations. Overall length is 0.75 inches with width across flats measuring 0.25 inches, and thread size is 10-32.

This standoff is used in control board mounting applications across HVAC, electrical, and industrial equipment where reliable PCB spacing and secure mechanical grounding are required. Electricians and controls technicians typically install these during panel builds, board replacements, or equipment assembly. The 10-32 thread size and 3/4-inch overall length make it a common fit for light-duty PCB mounting in both residential and commercial equipment enclosures.

Key Features

• Female 10-32 threaded body accepts standard machine screws for secure PCB stacking
• Hex body shape allows wrench engagement for precise torque control during install
• Grade 2 steel construction provides reliable mechanical strength for circuit board support
• Zinc-plated clear chromate finish meets ASTM B633 Type 1 and QQ-S-633 corrosion resistance standards
• Compact 0.75-inch overall length suits tight enclosure and control board mounting scenarios

Compatibility

Designed as an OEM-style replacement or new-installation standoff for circuit board mounting applications requiring a female 10-32 hex standoff with 0.75-inch overall length in inch-measurement fastener systems.

Installation Notes

Installation is typically performed by licensed electricians or controls technicians during panel assembly or board-level service. Power down and lockout-tagout all circuits in the enclosure before removing or installing circuit board hardware. Use an appropriate hex wrench or nut driver sized to 0.25 inches across flats to seat the standoff without over-stressing the PCB mounting holes. Follow applicable NEC guidelines for enclosure work and ensure board assemblies are re-secured before restoring power.
