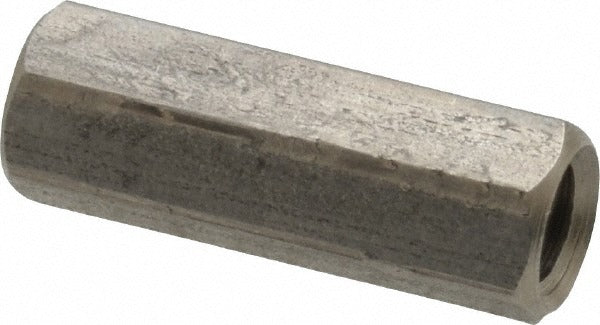

Electro Hardware P545M09F16-1032 Hex Board Standoff 10-32

Product Description

The ELECTRO HARDWARE P545M09F16-1032 is a female hex circuit board standoff designed to create fixed spacing between a PCB and a mounting surface or between stacked boards. It accepts a 10-32 threaded fastener and provides a secure, rigid mount point in electronic enclosures and control panel assemblies. The standoff measures 0.75 inches overall length with a 0.25-inch width across the hex flats. Constructed from 18-8 and Grade 303 stainless steel with an anodized bright finish, it meets the QQ-S-763 fastener standard. Electricians, panel builders, and electronics technicians install this type of hardware during control board mounting and enclosure assembly work.

This standoff is suited for use in residential and commercial control panel fabrication, electrical enclosures, and equipment where circuit boards require a fixed standoff height. The 10-32 female thread accepts a corresponding male-threaded screw, making it compatible with standard PCB mounting configurations that use inch-series hardware. Its hex body shape allows installation and removal with a standard wrench or hex driver without slipping, which is useful in tight enclosure spaces.

Key Features

• Female 10-32 thread accepts standard inch-series PCB mounting screws
• 0.75-inch overall length provides consistent board standoff height
• Hex body shape allows torque application with a wrench or driver
• 18-8 and Grade 303 stainless steel construction resists corrosion
• Anodized bright finish meets QQ-S-763 fastener standard
• Length tolerance of -0.005 to 0.005 inches supports precise stacking applications

Compatibility

Designed as an OEM-style replacement or new-installation standoff for circuit board mounting applications that require a 10-32 female hex standoff with a 0.75-inch overall length and inch-series hardware.

Installation Notes

Panel builders and electronics technicians install this standoff during control board assembly or enclosure fabrication. De-energize all circuits and discharge any capacitive loads before handling circuit boards or installing standoffs. Use an appropriately sized wrench or hex driver on the hex flats to avoid rounding the body. Follow applicable NEC requirements for panel wiring and enclosure work performed in the field.
