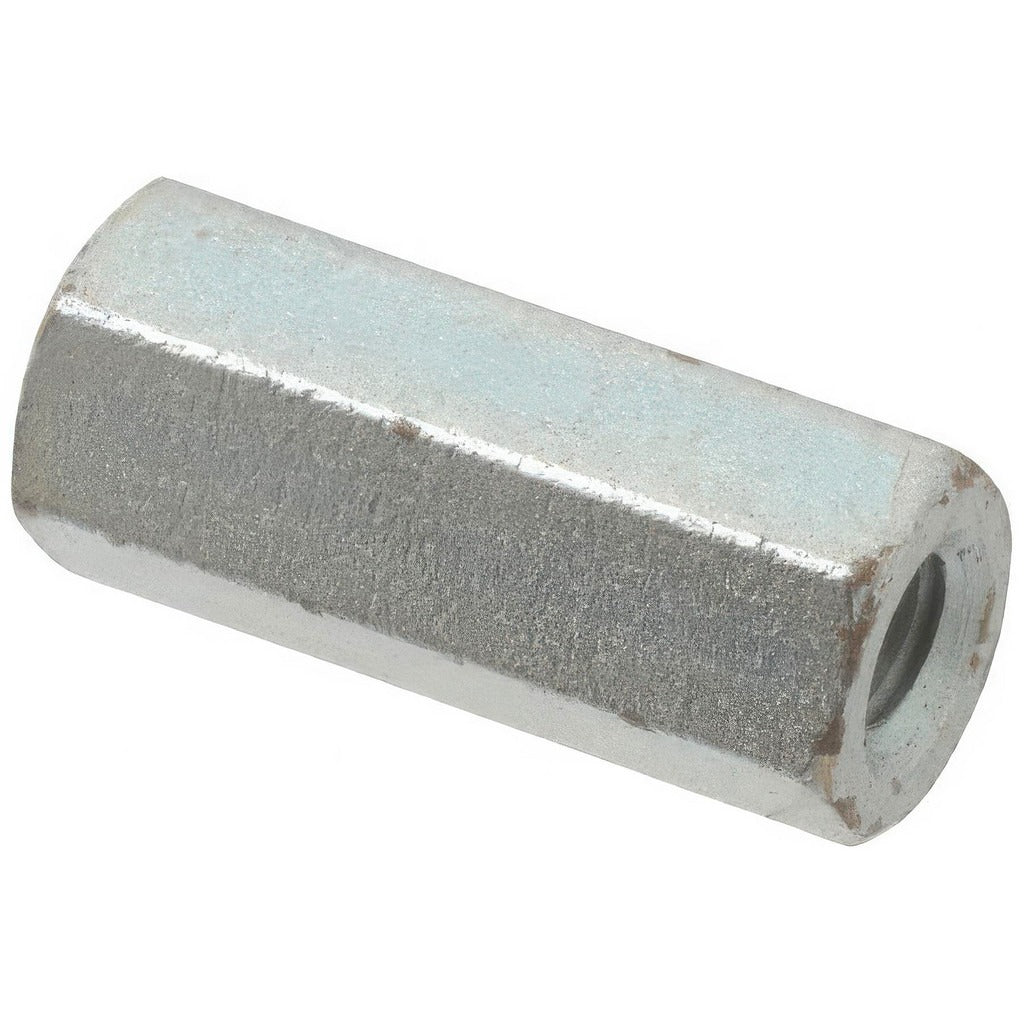

Electro Hardware P537M12F21-632 Hex Standoff 6-32 5/8in

Product Description

The ELECTRO HARDWARE P537M12F21-632 is a female hex circuit board standoff designed to create fixed spacing between a PCB and a mating surface or second board. Machined from steel with a clear zinc chromate finish meeting ASTM B633 Type 1 and QQ-S-633 standards, this standoff provides corrosion resistance appropriate for indoor electronics and control-board assemblies. The 6-32 female thread accepts a standard machine screw on both ends, and the 0.625-inch overall length sets consistent board-to-surface clearance. The 0.250-inch hex body allows engagement with a standard hex driver or small wrench. Used by electricians, controls technicians, and electronics assembly professionals wherever secure PCB mounting is required.

This standoff is suited for residential and light commercial control board assemblies, HVAC system control panels, electrical enclosures, and general electronics chassis work. It is appropriate wherever a 6-32 threaded female standoff is required to mount or stack circuit boards at a fixed 5/8-inch height. Its inch-standard dimensions make it a direct fit in applications specified to inch-series fastener standards.

Key Features

• Female 6-32 threaded bore accepts standard 6-32 machine screws on both ends
• 5/8-inch overall length provides consistent, measured PCB standoff height
• Hex body at 1/4-inch width across flats allows wrench or hex driver installation
• Steel construction with clear zinc chromate finish meets ASTM B633 Type 1 and QQ-S-633
• Length tolerance of -0.005 to 0.005 inch ensures dimensional consistency across assemblies
• Inch-standard measurement system for compatibility with standard fastener tooling

Compatibility

Designed as an OEM-style replacement or assembly component for any application requiring a 6-32 female hex circuit board standoff with a 5/8-inch overall length and 1/4-inch hex width across flats in an inch-standard fastener system.

Installation Notes

Installation is performed by electricians, electronics technicians, or controls technicians. Power down and de-energize all equipment before working on any circuit board assembly. Use a properly sized hex driver or open-end wrench matched to the 1/4-inch hex body to avoid rounding the standoff flats. Thread engagement on both mating screws should be sufficient to prevent loosening during service without over-torquing the small-diameter 6-32 thread.
