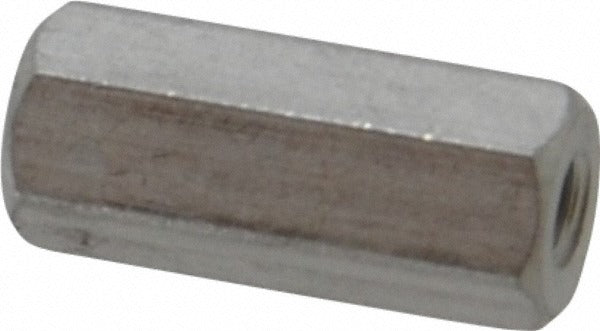

Electro Hardware P537M06F16-632 Female Hex Standoff 6-32

Product Description

The ELECTRO HARDWARE P537M06F16-632 is a female hex circuit board standoff designed to create fixed, uniform spacing between PCBs and mounting surfaces in electronic assemblies. Machined from aluminum with an anodized finish, it meets the QQ-A-225A Comp 2 material standard at T-3 grade. The standoff measures 0.625 inches overall length with a 0.25-inch width across flats, uses a 6-32 female thread, and features a hex body shape that accepts a standard wrench for secure installation. Electronics assemblers, field service technicians, and industrial maintenance personnel use this fastener when mounting control boards in HVAC equipment, electrical panels, and other assemblies where board-to-surface clearance must be maintained precisely.

This standoff is suited for residential and light commercial electronic control board mounting applications. It is commonly installed in HVAC control board assemblies, electrical enclosures, and industrial equipment where a threaded female hex spacer is required to provide standoff distance and mechanical support. The anodized aluminum construction offers corrosion resistance and a bright finish appropriate for both indoor and protected-enclosure environments. Length tolerance is held to plus or minus 0.005 inches, making it suitable for applications where consistent stack height across multiple standoffs is critical.

Key Features

• 6-32 female thread for standard machine screw compatibility
• 0.625-inch overall length with tight length tolerance of plus or minus 0.005 inches
• 0.25-inch hex width across flats accepts standard wrench or hex tool
• Aluminum construction with anodized bright finish for corrosion resistance
• Meets QQ-A-225A Comp 2 fastener standard at T-3 material grade
• Hex body shape provides reliable torque transfer during installation

Compatibility

Designed as an OEM-style replacement or direct-fit standoff for circuit board mounting applications requiring a 6-32 female hex aluminum standoff with a 0.625-inch overall length.

Installation Notes

Installation is typically performed by electronics technicians or field service personnel working on control boards and electronic assemblies. De-energize all equipment and discharge any stored voltage before handling circuit boards or installing standoffs. Use a correctly sized hex wrench or nut driver to seat the standoff without over-torquing, which can crack the board or strip the threads. Follow applicable electrical codes and equipment manufacturer guidelines when servicing control board assemblies.
