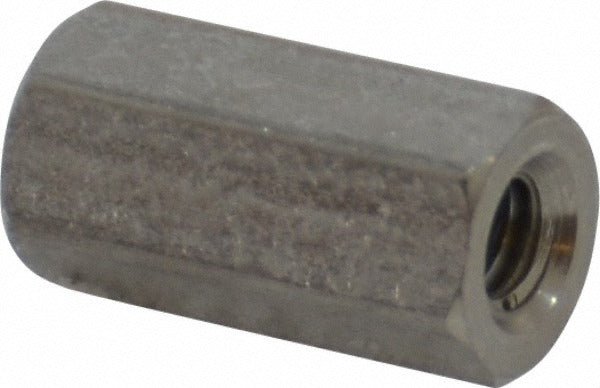

Electro Hardware P529M09F16-632 Hex Standoff 6-32 0.5in Ss

Product Description

The ELECTRO HARDWARE P529M09F16-632 is a female hex circuit board standoff designed to space and secure printed circuit boards within enclosures, control panels, and electronic assemblies. Machined from 18-8 and Grade 303 stainless steel with an anodized bright finish, this standoff accepts a 6-32 female thread and measures 0.5 inches overall length with a 0.25-inch width across flats. The hex body shape allows wrench engagement for consistent installation torque. It meets the QQ-S-763 fastener standard, making it a reliable choice for corrosion-sensitive applications where steel hardware is required.

This standoff is used in residential and commercial control panel assemblies, HVAC circuit board mounting, electrical enclosures, and any application requiring a rigid, threaded spacer between a PCB and a mounting surface. Electricians, control panel builders, and electronics technicians install this hardware during new assembly or board replacement work. The 0.5-inch body length is suited for tight stacking configurations where minimal clearance between the board and base surface is needed.

Key Features

• Female 6-32 threaded both ends for secure board-to-surface fastening
• 0.5-inch overall length with a length tolerance of -0.005 to +0.005 inches
• Hex body shape at 0.25 inches width across flats enables wrench engagement
• 18-8 and Grade 303 stainless steel construction resists corrosion
• Anodized bright finish meets QQ-S-763 fastener standard
• Inch measurement system; compatible with standard 6-32 hardware

Compatibility

Designed as an OEM-style replacement or direct-fit standoff for circuit board mounting applications requiring a 6-32 female threaded hex standoff with a 0.5-inch overall length.

Installation Notes

Installation is typically performed by electricians or electronics technicians during control board assembly or replacement. De-energize all circuits and discharge any capacitors before working on the board assembly. Use an appropriately sized hex wrench or nut driver to seat the standoff without over-driving, which can strip the 6-32 thread. Follow applicable NEC guidelines for control panel construction and enclosure assembly.
