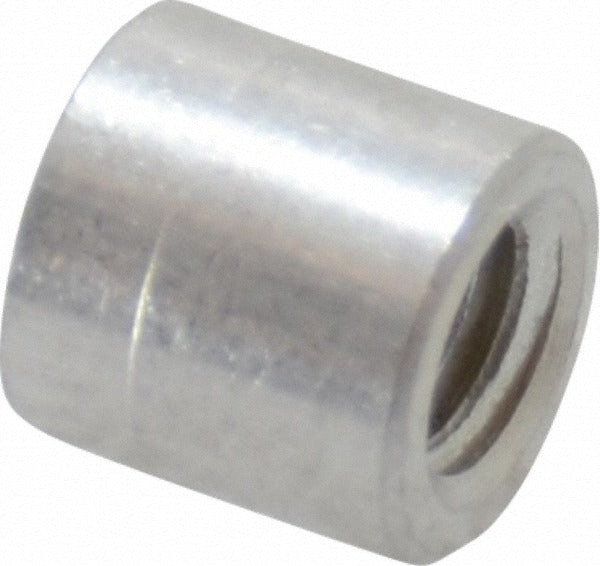

Electro Hardware P513M04F16-832 Female Standoff 8-32

Product Description

The ELECTRO HARDWARE P513M04F16-832 is a round female standoff designed for use in panel assembly, electronics enclosures, and structural spacer applications where a threaded female receptacle is required. Machined from aluminum alloy to material grade T-3 and finished bright anodized per QQ-A-225A Comp 2, this standoff measures 0.25 inches in overall length and 0.25 inches in outside diameter. The body is fully threaded to an 8-32 thread specification with a 1-inch thread depth, providing secure fastener engagement throughout the full bore. It is installed by electronics assemblers, mechanical technicians, and enclosure fabricators working to inch-system fastener standards.

This standoff is suited for light-duty panel mounting, PCB standoff applications, and equipment enclosure assembly where a compact, fully threaded aluminum spacer is specified. The short 0.25-inch overall length makes it appropriate for tight clearance installations where minimal stack height is required. The 8-32 thread size is a common inch-standard thread used across a wide range of commercial and industrial panel hardware. Bright anodized aluminum construction keeps weight low while providing a corrosion-resistant surface finish.

Key Features

• Fully threaded female bore with 8-32 thread size and 1-inch thread depth
• Compact form factor: 0.25 inches OAL and 0.25 inches outside diameter
• Aluminum construction, material grade T-3, for lightweight corrosion-resistant service
• Bright anodized finish per QQ-A-225A Comp 2 fastener standard
• Round body shape in inch system of measurement for standard hardware compatibility
• Length tolerance held to -0.005 to 0.005 inches for precise stack-up assembly

Compatibility

Designed as an OEM-style inch-standard female standoff for panel assemblies, electronics enclosures, and mechanical spacer applications requiring an 8-32 threaded aluminum standoff with 0.25-inch overall length.

Installation Notes

Installation is performed by electronics assemblers or mechanical technicians using standard hand tools appropriate for 8-32 fastener hardware. Power down all equipment and discharge any stored energy before working inside energized enclosures. Avoid over-torquing into aluminum threads, as the material is subject to thread strip if fastener torque is not controlled. Verify mating fastener thread class and length against the 1-inch thread depth prior to final assembly.
