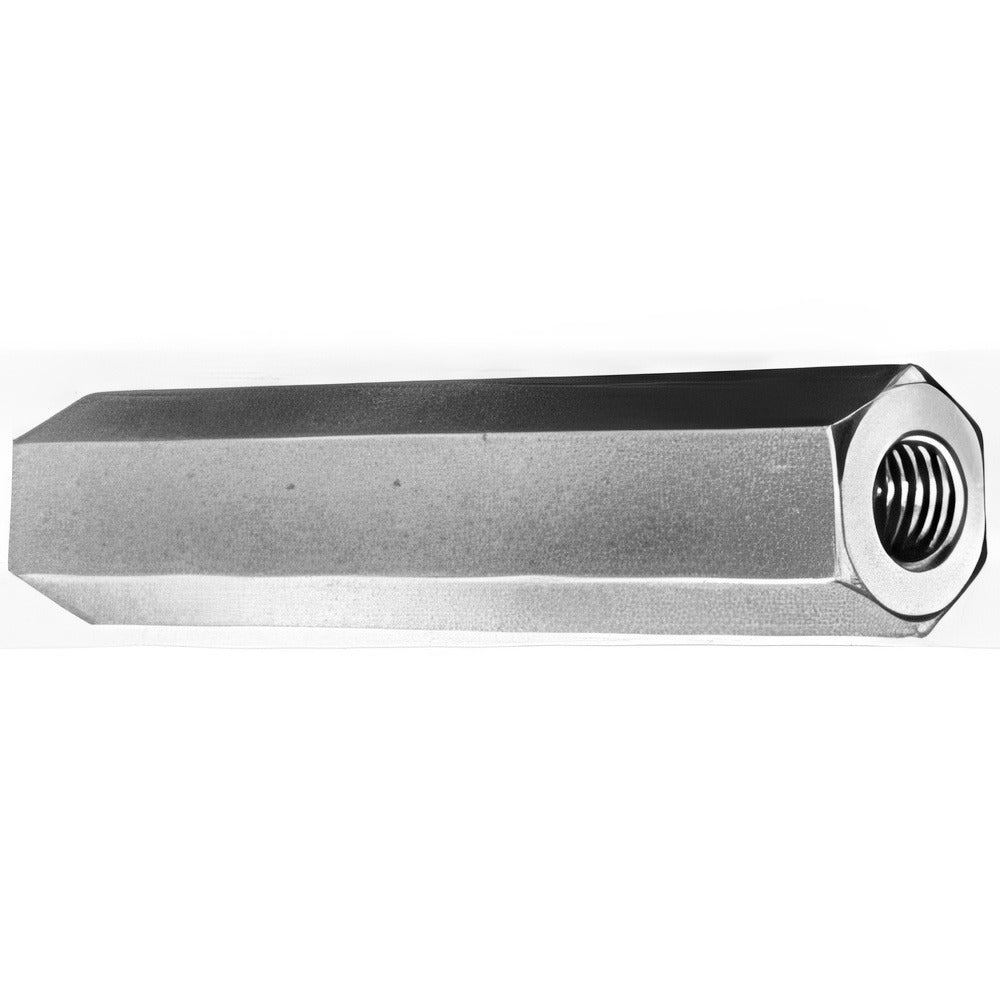

Electro Hardware P505M12F21-1032 Hex Standoff 10-32

Product Description

The ELECTRO HARDWARE P505M12F21-1032 is a female hex circuit board standoff with a 10-32 thread size and an overall length of 0.125 inches. The hex body measures 0.25 inches across flats. Constructed from Grade 2 steel with a zinc-plated clear chromate finish, this standoff meets ASTM B633 Type 1 and QQ-S-633 finish standards. It is designed to create a fixed, threaded female mount point between a printed circuit board and an enclosure panel or secondary board layer. Electronics assemblers, field service technicians, and panel builders install these standoffs during board mounting and chassis assembly operations.

This standoff is used in applications requiring a compact, low-profile board spacer with a female threaded receiver. At 0.125 inches OAL, it is suited for tight PCB assemblies where minimal stack height is critical. Typical install scenarios include control panel board mounting, industrial electronics enclosures, and HVAC equipment circuit board assemblies where a secure, corrosion-resistant fastener interface is required.

Key Features

• Female 10-32 internal thread accepts standard 10-32 machine screws
• Hex body profile at 0.25 inches across flats allows wrench engagement for secure torquing
• Grade 2 steel construction provides reliable mechanical strength for board support
• Zinc-plated clear chromate finish meets ASTM B633 Type 1 and QQ-S-633 for corrosion resistance
• Compact 0.125 inches OAL suits low-clearance PCB stack applications
• Length tolerance held to plus or minus 0.005 inches for consistent board spacing

Compatibility

Designed as an OEM-style replacement or standard hardware component for circuit board assemblies requiring a 10-32 female threaded hex standoff with a 0.125 inches overall length.

Installation Notes

De-energize all equipment and discharge any stored capacitance before beginning board mounting work. Install using an appropriately sized open-end or box wrench on the hex body to achieve a snug fit without over-tightening, which can crack PCB laminate. Follow the equipment manufacturer's assembly specifications and any applicable IPC standards for board mounting hardware. Inspect the zinc-plated finish for damage before installation, as compromised coating can reduce corrosion protection in humid enclosure environments.
