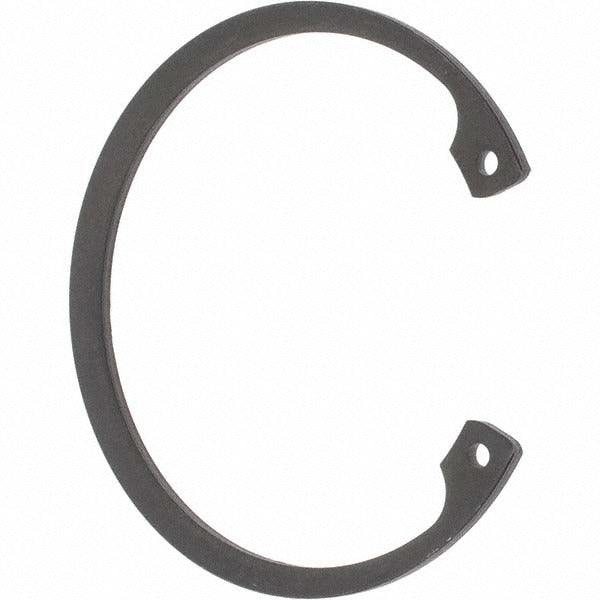

Electro Hardware HO-237ST PD-15 Internal Snap Ring 2-3/8 in

Product Description

The ELECTRO HARDWARE HO-237ST PD-15 is an internal snap retaining ring designed for bore-mounted applications requiring a secure, low-profile retention solution. Made from spring steel with a phosphate finish, this ring seats into a machined groove inside a bore to hold shafts, pins, bearings, and assemblies in axial position. The bore diameter is 2-3/8 inches with a free outside diameter of 2.63 inches. Ring thickness measures 0.078 inches. The phosphate finish provides baseline corrosion resistance and lubricity. Installation and removal are performed by licensed mechanics, millwrights, or maintenance technicians using standard snap ring pliers.

This retaining ring is suited for use in industrial equipment, mechanical assemblies, gearboxes, pumps, and similar applications where internal bore retention is required. The 2-3/8 inch nominal size fits a standard bore diameter, making it a common replacement or service part across a range of rotating and stationary mechanical assemblies. The package quantity is 1 ring, with a minimum order quantity of 15 units.

Key Features

• Spring steel construction provides consistent snap force and reliable retention under load
• Phosphate finish for baseline corrosion resistance and improved surface lubricity
• Bore diameter: 2-3/8 inches nominal
• Free outside diameter: 2.63 inches with a tolerance of -0.030 to +0.040 inches
• Groove width 0.086 inches by groove depth 0.071 inches for precise groove fit
• Ring thickness: 0.078 inches for consistent axial load distribution

Compatibility

Designed as an OEM-style internal snap retaining ring for bore-mounted assemblies with a 2-3/8 inch nominal bore diameter and a machined internal groove matching 0.086 inches width and 0.071 inches depth.

Installation Notes

Installation is performed by qualified mechanics or maintenance technicians using internal snap ring pliers sized for the ring gap. De-energize and lock out all equipment before beginning any retaining ring service. Inspect the bore groove for burrs or wear before seating the ring to ensure full engagement. Do not over-expand the ring during installation, as spring steel can fracture if deformed beyond its design limit.
