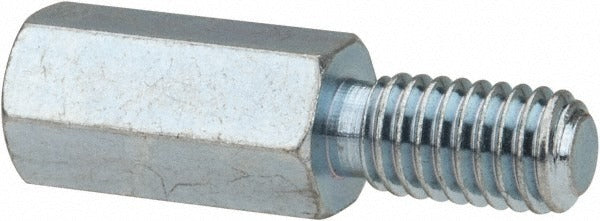

Electro Hardware 1435M12F21-1032 Hex Standoff 10-32

Product Description

The ELECTRO HARDWARE 1435M12F21-1032 is a male-female hex circuit board standoff used to create measured separation between stacked PCBs or between a circuit board and a mounting surface. Machined from Grade 2 steel with a zinc-plated finish meeting ASTM B633 Type 1 and QQ-S-633 standards, this standoff provides corrosion resistance in panel and enclosure environments. The threaded male end engages the next board or standoff, while the female threaded end accepts a screw or mating fastener. Overall length is 0.875 inches with a 1/4-inch hex body width across flats, making it compatible with standard 1/4-inch nut drivers and hex wrenches.

This standoff is used in electronic assemblies found in HVAC control boards, electrical enclosures, industrial control panels, and similar equipment requiring secure, repeatable PCB spacing. The 10-32 thread size is a standard unified fine thread widely used across commercial and residential equipment. Installers encounter this fastener during control board replacement, panel assembly, and equipment service requiring board-level access or repositioning.

Key Features

• Male-female hex body provides threaded engagement on both ends for stackable board mounting
• 10-32 unified fine thread on both male and female ends
• Overall length of 0.875 inches with a 0.500-inch body length and 0.375-inch thread length
• 1/4-inch width across flats fits standard nut drivers and hex wrenches
• Grade 2 steel construction with zinc-plated finish meeting ASTM B633 Type 1 and QQ-S-633
• Length tolerance held to plus or minus 0.005 inches for precise board spacing

Compatibility

Designed as an OEM-style replacement or service standoff for circuit board assemblies using 10-32 threaded hardware in standard hex standoff configurations.

Installation Notes

Installation is performed by electronics technicians, HVAC service technicians, and electricians during control board service or panel assembly. De-energize all circuits and discharge any capacitors before handling circuit boards or standoffs. Use a 1/4-inch nut driver or appropriately sized hex wrench to seat the standoff without over-torquing, which can strip the threaded body or crack the PCB mounting hole. Follow applicable NEC guidelines when working inside energized electrical enclosures.
