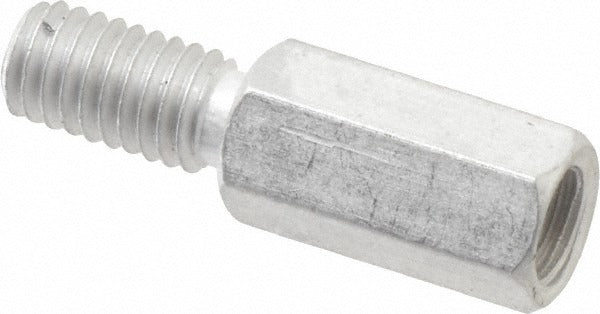

Electro Hardware 1435M06F16-1032 Hex Standoff 10-32 7/8in Aluminum

Product Description

The ELECTRO HARDWARE 1435M06F16-1032 is a male-female hex circuit board standoff designed to create a fixed, threaded separation between PCBs, panels, or enclosure surfaces. Machined from 2024-T3 aluminum with an anodized finish, this standoff meets QQ-A-225A Comp 2 specification. The hex body measures 0.25 inches across flats and has an overall length of 0.875 inches (7/8 inch). The male thread extends 0.375 inches (3/8 inch) and the female thread depth is 0.5 inches (1/2 inch), both cut to 10-32 UNF. Electronics assemblers, PCB technicians, and panel builders install these in control boards, industrial enclosures, and electrical panels where precise board standoff height and a reusable threaded connection are required.

This standoff is suited for circuit board mounting applications in residential and commercial HVAC control panels, electrical enclosures, and similar assemblies that require a lightweight, corrosion-resistant fastener. The anodized aluminum construction keeps weight low while providing surface protection in mild to moderate environments. The 10-32 thread is a widely used pitch in electronics and control-board hardware, making this standoff compatible with a broad range of panel and PCB mounting configurations. Minimum order quantity is 10 pieces.

Key Features

• Male-female configuration allows stacked PCB or panel mounting with a reusable female thread
• 10-32 UNF thread on both ends for broad compatibility with standard electronics hardware
• Hex body at 0.25 inches across flats allows wrench installation and precise torque control
• Anodized 2024-T3 aluminum construction: lightweight and corrosion-resistant
• Meets QQ-A-225A Comp 2 material specification for aluminum bar stock
• Overall length of 0.875 inches with a 0.5-inch female thread depth for secure engagement

Compatibility

Designed as a standard 10-32 male-female hex standoff for PCB, panel, and enclosure mounting applications where an aluminum anodized fastener meeting QQ-A-225A Comp 2 is specified.

Installation Notes

Install using a wrench or hex driver sized for a 0.25-inch across-flats hex body. De-energize all circuits and discharge any capacitors before working inside control panels or enclosures. Follow applicable NEC requirements for fastener selection and panel assembly. Do not overtighten; the aluminum body is susceptible to thread damage if excessive torque is applied.
